Gd-6536 Single Unit Heating Furnace Petroleum Oil Distillation Equipment/Distillate Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Transport Package：Wooden Case
  • Specification：460mm× 400mm× 500mm

Base Info

  • Model NO.：GD-6536
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：200units,Month

Description

1. Power supply:  AC(220±10%)V, 50Hz2. Heating power:   1000W,continuous adjustment3. Receiving cylinder: 100ml,scale division 1ml4. Distillation flask:  125mL. It can meet requirements GB/T 6536 and ASTM D865. Thermometer:  (-2~300)ºC and (-2~400)ºC. Division value 1ºC6. Flask support board: SiC,diameter for each hole is φ32mm,φ38mm and φ50mm7. Ambient temperature:   Room temp.~+35ºC8. Relative humidity:   ≤85%

9. Maximum power consumption:

1100W

10.Dimension:

460mm×400mm×500mm
Gd-6536 Single Unit Heating Furnace Petroleum Oil Distillation Equipment/Distillate Tester

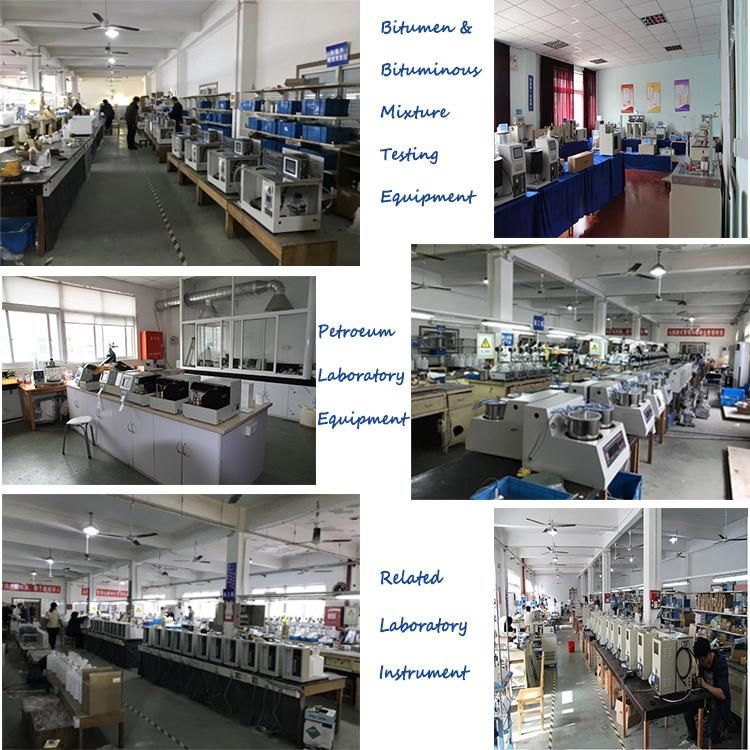

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer
of Petroleum Products test kits and electrical testing equipment in China.Our
products are sold to most countries in the world and they are highly popular because
our good quality and after-sale service.As we have many customers specialized in oils
and power stations,we also supplying oil recycling machines as per their requirements.
And our machines are made to recycle waste transformer oil,turbine oil and lubricating oil etc.


Gd-6536 Single Unit Heating Furnace Petroleum Oil Distillation Equipment/Distillate Tester
Gd-6536 Single Unit Heating Furnace Petroleum Oil Distillation Equipment/Distillate Tester
