• Model NO.：GD-0621
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Circular Trough：Inner Diameter:160mm;Depth:116mm
• Power Supply：AC220V, 50Hz
• Warranty：12 Month
• Transport Package：Wooden Case
• Specification：420 mm*340 mm*570 mm
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9014800090
• Production Capacity：100 Set,Sets Per Month

Product nameAsphalt Laboratory Equipment Asphalt Standard ViscometerPower supplyAC 220 V±10%, 50 HzCircular trough(1) Inner diameter: 160 mm
(2) Depth: 116 mmSample tubefour pieces in a set. The diameter of effuse tube is: φ10 mm±0.025 mm,φ5 mm±0.025 mm, φ4 mm±0.025 mm and φ3 mm±0.025 mm.Ball stopper specificationA: Diameter of ball: 12.7 mm±0.05 mm; Sign height: 92 mm±0.25 mm
B: Diameter of ball: 6.35 mm±0.05 mm; Sign height: 90.3 mm±0.25 mm.Temperature controlling rangeroom temperature~90 ºC.Temperature controlling accuracy ±0.1 ºCTime resolution0.1 s, maximum time value: 999.9 sHeating typeelectric heater. Use a circulation pump circulating water bath liquid to control the temperature in the circular trough. Heating power is 600 W.Ambient temperature-10ºC~35 ºCRelative humidity≤ 85%Dimension length 420 mm, width 340 mm, height 570 mmMaximum power consumption700 W



Product Packing:

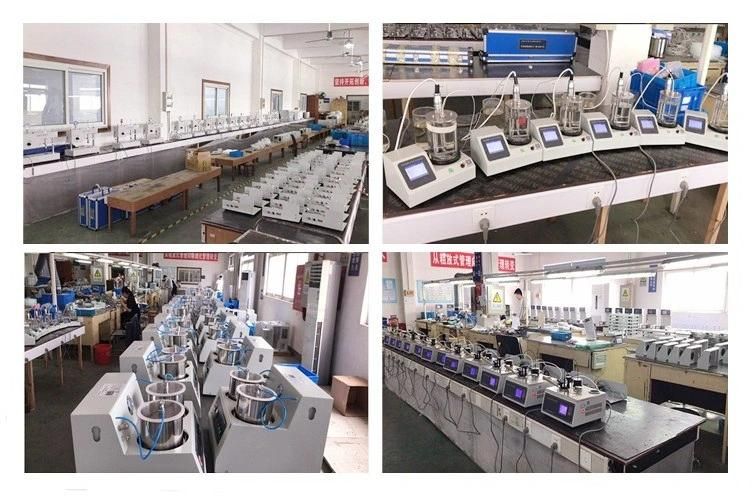

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
