• Model NO.：GD-2801C
• Application Field：Laboratory, Lab
• Packing Size：69*41*68cm
• Warranty Period：1 Year
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Transport Package：Wooden Case for Gd-2801c Oil Penetrat
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100 Sets, Month

Product nameBitumen Penetration Apparatus Penetrometer ASTM D5Measurement range (0~600)penetrationTiming deviceyou can select 5 s, 8 s, 10 s, 12 s, 30 s, and 60 s; Timing error is less than ±0.1 sResolution0.01 mmPenetration accuracy±1 penetrationStandard needle50mm,2.5g±0.05gHeater power200 WTemperature control accuracy25±0.1 ºC (Note: The ambient temperature shall not be higher than 20 ºC)Temperature control modeby a high precision digital temperature controllerConstant temperature bathHard glass bathBath stirringautomatically stirred by a magnetic stirrerStandard cone102.5±0.05 g, as per GB/T269 and ASTM D217Lifting supportWith coarse and fine adjustment functions; it is used to let the needle point just touch the sample surface.Power SupplyAC (220 ± 10%) V, 50Hz, power consumption is not more than 300WDimensions280 × 350 × 700mm (length × width × height)OthersEquipped with a cold light source and a magnifier. It is convenient for instrument operation

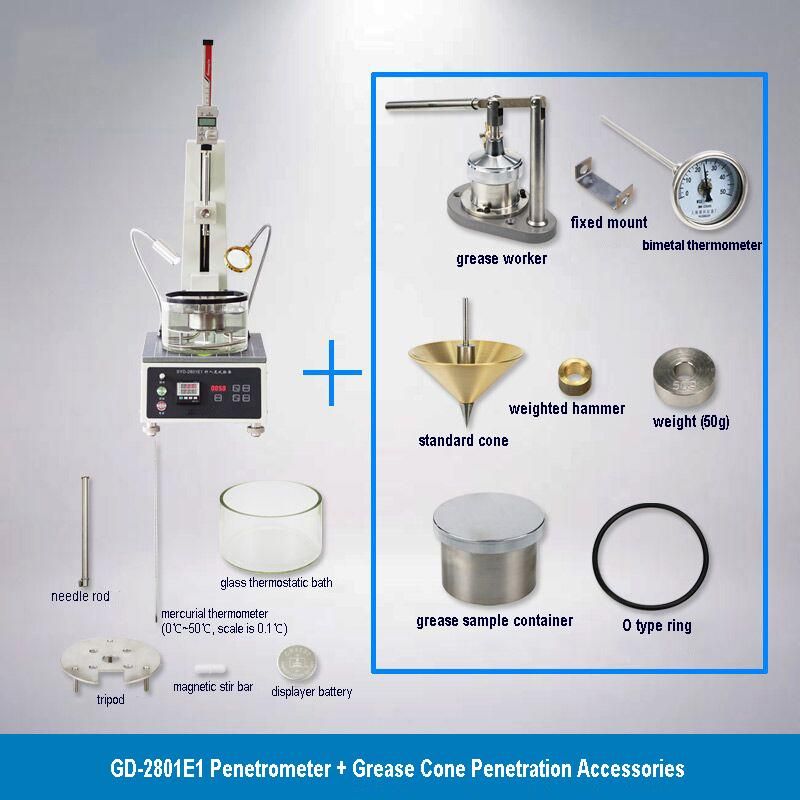

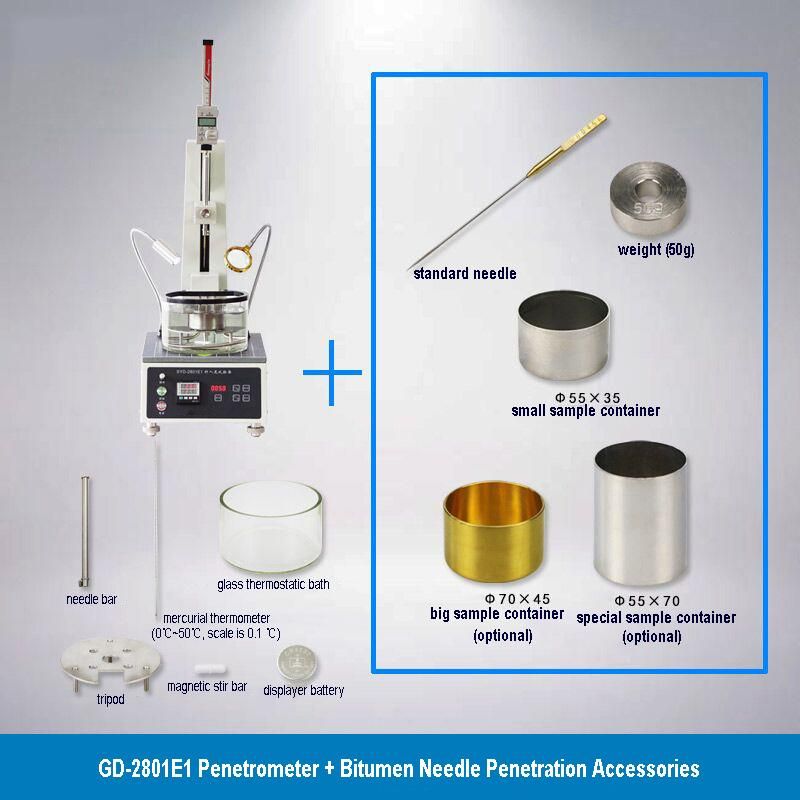

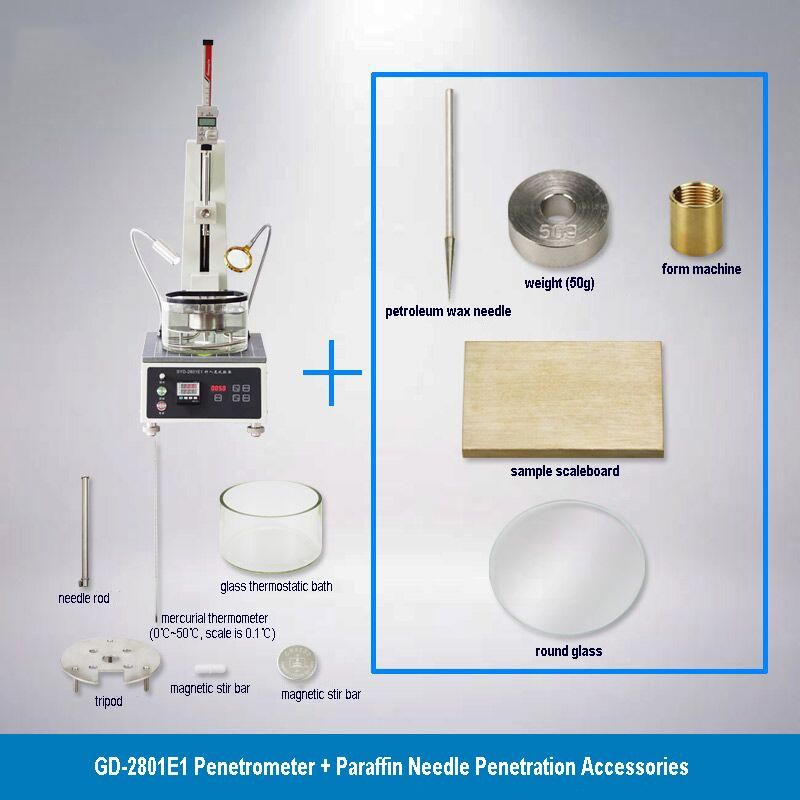

PS: If the accessories are different, our instrument can do penetration for Bitumen,Grease and Paraffin.

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
