• Model NO.：HJ-69
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-69 Origin China Production Capacity 1000 Sets/ Month

Product Description

Introduce
The main function of this equipment is to test the physical and other related properties of products such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rain conditions. After the test, it is judged whether the performance of the product meets the requirements through verification, so as to facilitate the design, improvement, verification and factory inspection of the product.

Features
1. It is suitable for IPX3, IPX4, IPX5, IPX6 waterproof level testing of products.
2. The shell is made of domestic high-quality steel plate, and the surface is sprayed with baking paint, which is beautiful and durable.
3. The inner box, turntable, swing tube, etc. are all made of SUS304# stainless steel plate to ensure long-term use without rust.
4. Box-type structure; it has its own water tank to circulate water; the water storage tank is equipped with a water level float valve, which automatically controls the water intake and has a low water level alarm detection.

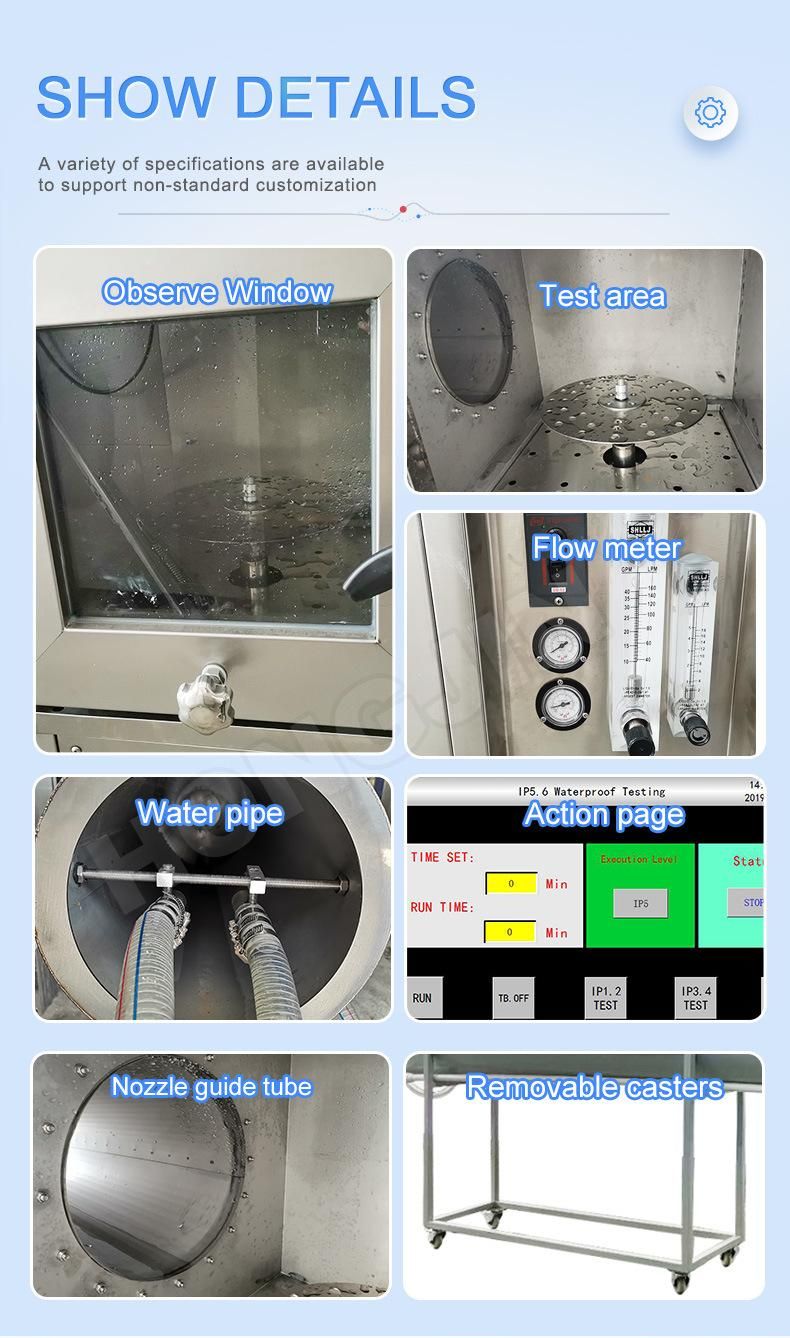

5. There is a transparent observation window (toughened glass material) on the door, and LED lighting is installed in the box, which is convenient for observing the internal test situation.
6. IPX34: The drive of the swing tube adopts a servo stepping motor, the speed and angle of the swing tube are precisely adjustable, and there is no out-of-step problem (out-of-step: it will cause the swing tube to move abnormally, hit the middle turntable shaft, and cause equipment damage)


Inner box size: W600*D600*H600	Swing tube radius: 200mm
Inner box size: W800*D800*H800	Swing tube radius: 300mm
Inner box size: W1000*D1000*H1000	Swing tube radius: 400mm
Turntable diameter	¢300mm
Turntable maximum load	50KG
Turntable lift height	400mm
Turntable can be tilted	0° or 15° (horizontal)
Turntable speed	1 -5r/min (accurately adjustable)
Turntable rotation	Always rotate forward / alternate between forward and reverse rotation / intermittent rotation
Flow adjustment method	Manual flow adjustment by means of a flow meter with adjustment panel
Testing time	0-999 min
Total mass of equipment	250kg

The Introduction Of Hongjin
Hongjin products are widely used in paper products, packaging, ink printing, tape, luggage, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, suitable for all scientific research units, Quality inspection agencies and academic fields. Products comply with UL, ASTM, JIS, GB, SO, TAPPI, EN, DIN, BS and other domestic and foreign standards. We have CE certificates, ISO certificates, and are a high-tech enterprise with more than ten years of experience.
Hongjin's services:
If you encounter any problems during future testing, we promise we will reply you within 48 hours and provide a solution within 3 working days. We can provide operation video and English operation manual. We can provide video conferencing.
1. Pre-sales service
    --24-hour online service for your consultation.
    -- Help with choosing the right model, and a range of services, people, advice.
   --Provide laboratory planning and pre-sales technical guidance.
2. Intermediate service
    -- give you the best offer
    --Provide discounts on multiple sets of orders
    -- Do the customer's request:
    --Choose a payment term that is convenient for you.
    --Prompt production and delivery, keep you informed.
    -- Invoice value can be provided according to your needs to reduce tax.
3. After-sale service
   --1 year warranty service and lifetime maintenance.
   --Technical engineers can provide 24-hour after-sales guidance.
   --Replacement of some parts
   --Remote control technical consultation
   --Machine lifetime maintenance service
4. Commitment:
We will sign a letter of commitment at the same time as signing the contract, which will increase your confidence in us.
5. Good packaging:
Simulation animation customers cover with bubble film before putting them into wooden boxes, which not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof and corrosion-proof, and good transparency.
