Control Material Torsion Testing Machine Torsional Force Testing Machine
Dongguan Hongjin Test Instrument Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year
- Type：Torque Testing Machine
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Static Load
Base Info
- Model NO.：HJ-68
- Display：Digital
- Weight：0-100Kg
- Power Source：AC220V
- Transport Package：Fumigation-Free Standard Export Wooden Box
- Trademark：Hongjin
- Origin：China
- Production Capacity：1000 Sets, Month
Description
ParameterMaximum torque 2000Nm, 5000Nm, 10000Nm (can be customized) Testing machine level Level 0.5/Level 1 Test force resolution 0.001~0.01 N m Torsion speed control range 0.1°-720°/min can be customized Corner measurement range 0°-±99999° Indication repeatability relative error <0.5% Power supply 220V, 50Hz Loading method Fully automatic Equipment weight About 450KG Completeness Meet the standards Torque measurement range 1%FS-100%FS Test plus torque direction Both directions Torque Resolution 1/±300000 Test stroke 500-1000mm (can be customized) Relative error of torque indication <±0.5%/<±1% Relative error of torsion angle indication <±0.5% Torsion attachment Customizable Exterior Should meet the requirements of GB/T2611 Protective function The testing machine has overload protection function
Features

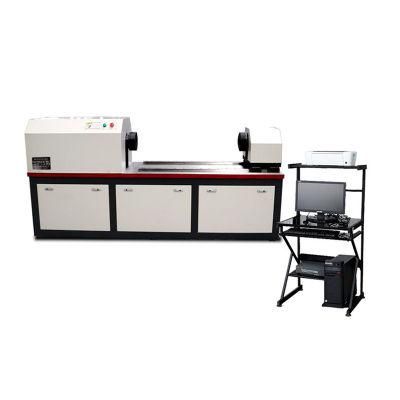

1. Main engine: It adopts horizontal structure, and the main structure adopts frame structure to ensure the rigidity of the whole machine. The main drive shaft and fixture are made of high-quality steel to ensure their service life. The installation and disassembly of the sample are convenient and fast. The moving end of the collet adopts a precision heavy-duty guide rail, which enables it to move freely and minimizes the axial tension of the specimen.
2. Drive system: Driven by imported all-digital AC servo control system, with wide speed adjustment range, uniform and stable loading.
3. Transmission system: It adopts precision reducer transmission to ensure the uniformity, stability and transmission accuracy of transmission. The horizontal space can be adjusted manually within the range of 0 to 600mm.
4. Measurement and display system: The machine uses a photoelectric encoder to collect the torsion angle of the sample, a high-precision torque sensor to collect the torque of the sample, and a high-precision rotary encoder to measure the torsional deformation of the sample. The computer screen displays the torque, torsion angle, torsional deformation and various curves of the sample.
5. Software system:
5.1. It meets the relevant requirements of data processing in JB/T9370-1999 ""Technical Conditions of Torsion Testing Machine"" and GB10128-1988 ""Metal Room Temperature Torsion Test Method"".
5.2. The shear modulus G value, yield point τs, upper yield point τsu, lower yield point τsl, torsional strength τb, etc. of the specimen can be detected. Torque and torsion angles are automatically tracked and measured, and test curves are displayed. Displays the torque value, torsion angle, and torsion speed of the test. After the test, the test data is automatically processed, and the shear modulus G, the specified non-proportional torsional stress τp, the yield point, the upper yield point τsu, the lower yield point τsl, the torsional strength τb and other performance parameters of the material can be automatically obtained. According to user requirements, the report format can be freely compiled and the test report can be output and printed.
5.3. The testing machine can realize two functions of continuous loading and maintaining load under any load. There is no shock and vibration during the test, and it has good reading stability.
5.4. Any number of test curves can be superimposed and compared, output and printed.
