• Model NO.：GW-025
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-025
• Capacity：0-18.3j(13.5FT-Lb)
• Horizontally Holding Moment of Penddulum：17.3nm(12.7FT-Lb)
• Hammer：108+,-1mm
• Angle：0-45 Deg
• Dimension：69*40*98cm
• Transport Package：Standard Export Safety Packing
• Specification：0~100KG
• Trademark：Great win
• Origin：China
• HS Code：9024800000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. GW-025 Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-025 Capacity 0-18.3j(13.5FT-Lb) Horizontally Holding Moment of Penddulum 17.3nm(12.7FT-Lb) Hammer 108+/-1mm Angle 0-45 Deg Dimension 69*40*98cm Transport Package Standard Export Safety Packing Specification 0~100KG Trademark Great win Origin China HS Code 9024800000 Production Capacity 1000PCS/Month

Product Description

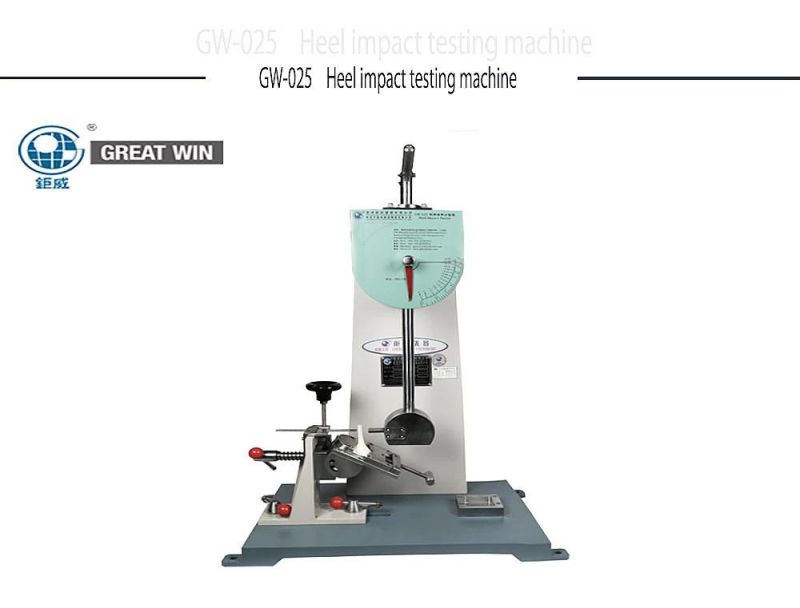

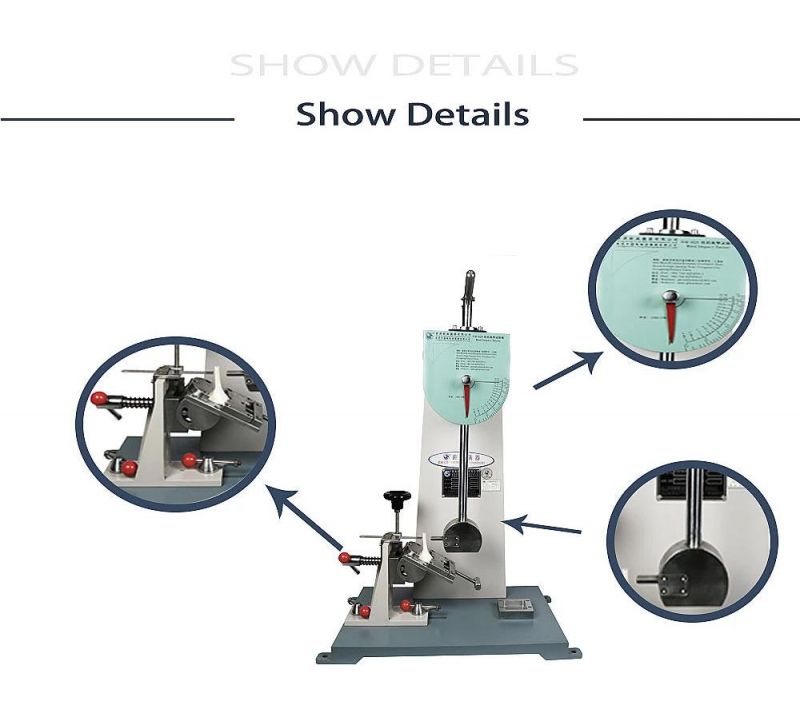

Heel Impact Testing Machine/shoes heel impact tester(GW-025)


•Brief introduction:

This tester is used to determine the endurance of ladies' shoe to receive the occasional heavy blows during wear. A heel clamped with the tip uppermost and the stem approximately vertical is subjected to repeated blows by a pendulum striker. The energy of the blows increases successively until the heel fails.

•Technical Specifications:

Model	GW-025 Heel impact testing machine
Capacity:	0-18.3J (13.5ft-lb) minimum reading 0.68J (0.5ft-lb)
Horizontally Holding Moment of Pendulum:	17.3N-m (12.7ft-lb)
Hammer:	φ108±1mm
Adjustable Range of Base Clamp:	(H)-25mm
Angle:	0~45degree
Dimension:	69*40*98cm
Weight:	86kg

•Standard for:
BS-5131, SATRA TM20

•Attached accessories:
Manual locking fixture

What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
