Gd-261-1 Flash Point Pensky Martens Closed Cup ASTM D93 Measuring Instrument for Diesel

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：Gd-261-1 Pensky-Martens Closed Cup Flash Point Tes
  • Usage：Closed-Cup Flash Point Tester for
  • Standard：GB,T261, ASTM D93
  • Test Sample：Gasoline, Kerosene, Diesel, etc
  • Ignition Mode：Manual
  • Temperature Display：Thermometer

Base Info

  • Model NO.：GD-261-1
  • Sample Cup：Standard Oil Cup
  • Dimension：370*320*300mm
  • Delivery Time：10 Working Days(If Urgent, We Can Push)
  • Printing and Communication Port：No
  • Transport Package：Wooden Case for Gd-261-1
  • Trademark：GOLD
  • Origin：Chongqing, China
  • Production Capacity：100 Sets, Month

Description

Product nameGd-261-1 Flash Point Pensky Martens Closed Cup ASTM D93 measuring instrument for dieselPower supplyAC (220±10%)V, 50HzHeating deviceThe heating power is continuously adjustable from 0 W to 600WHeating rate(1~12)ºC/min; Controllable and adjustableStirring rateProcedure A: (90~120)RPM, Procedure B: (250±10)RPMOil cup(1) Inner diameter: 50.7mm~50.8mm.
(2) Depth: 55.7mm~56.0mm
(3) The scribed line depth of capacity of testing oil: 33.9mm~34.3mm.
(4) Capacity of testing oil:about 70mlIgniting device(1) Igniting source: gas(or other civilian fuels,the same below)
(2) Electric ignition. Gas flame diameter:3.2mm~4.8mmThermometers (Mercury-in-glass thermometer)(1)Scale -5ºC~110ºC, division 0.5ºC
(2)Scale 20ºC~150ºC, division 1ºC
(3)Scale 90ºC~370ºC,division 2ºCAmbient temperature≤ 35ºCRelative humidity≤ 85%Maximum power consumption650W


Related Products:Gaoline, jet fuel, kerosene, diesel, gas turbine liquid, solvent oil, lubricating oil, insulating oil, fuel oil , petroleum wax, electricoil, biodiesel, etc.Colored paints, oil paints, adhesives, Solvents and petroleum productsTemperature rangeAmbient~300ºCAmbient~250ºCAmbient~300ºC-30ºC~50ºCIgnition modeManual Manual AutomaticManualTemperature displayThermometerColor LCDColor LCDLCDprintingNOYESYESYESCommunication portNONOYESNOSample cupStandard oil cupStandard oil cupStandard oil cup2mlDimension370*320*300mm410*360*310mm520*360*310mm370*280*280mm



Detail Images:

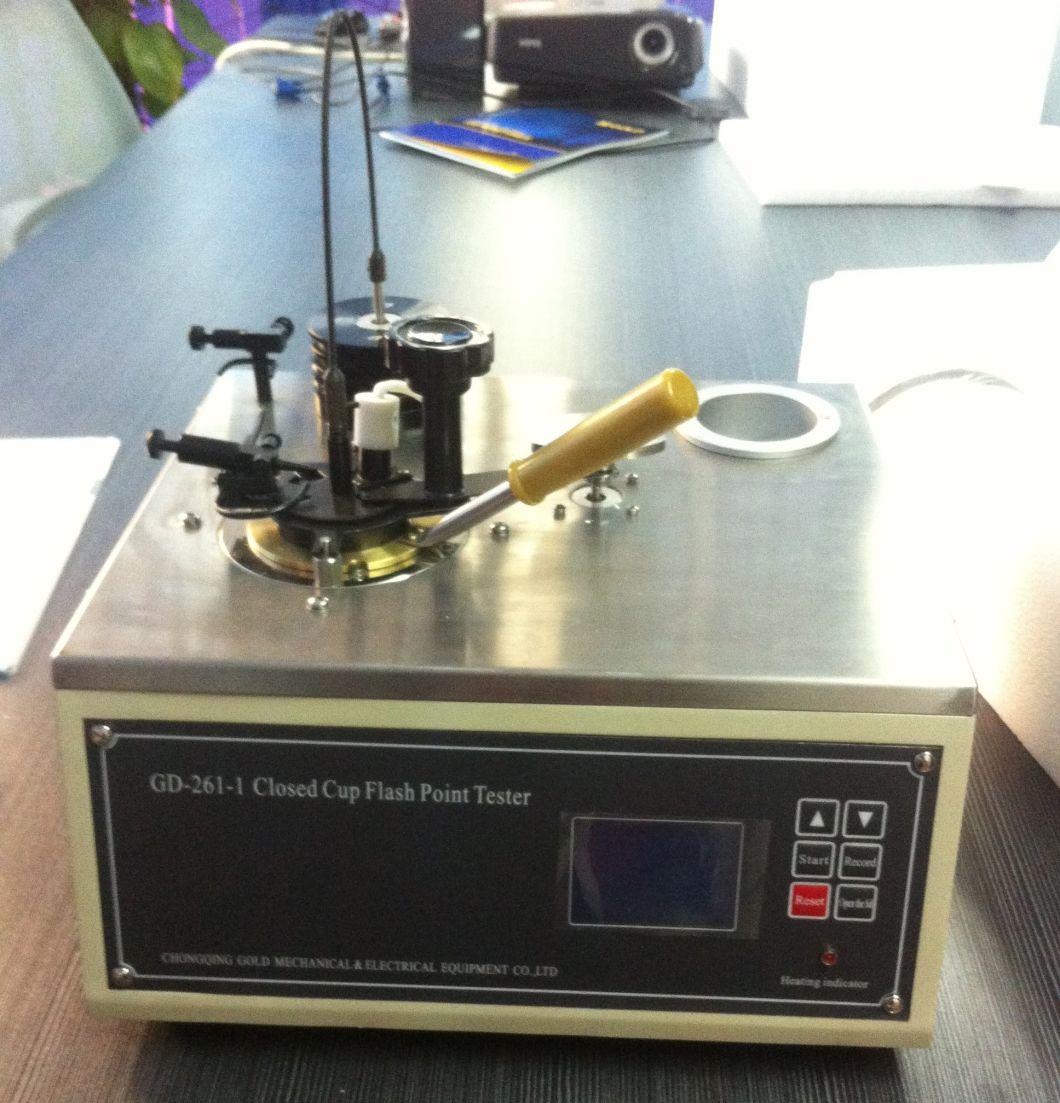

Gd-261-1 Flash Point Pensky Martens Closed Cup ASTM D93 Measuring Instrument for Diesel


Company  Information:



Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.


We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
Gd-261-1 Flash Point Pensky Martens Closed Cup ASTM D93 Measuring Instrument for Diesel
Gd-261-1 Flash Point Pensky Martens Closed Cup ASTM D93 Measuring Instrument for Diesel
