• Model NO.：STYE-2000,1000
• Weight：500-1000Kg
• Max. Testing Power：2000kn
• Measuring Range：0-2000kn
• Relative Indication Error：±1%
• Testing Power Precision：Grade1
• Size of The Bearing Plate：320×260mm
• Max. Distance Between The up and Down Be：310mm
• Max. Piston Stroke：90mm
• Power：AC220V±10% or AC380±10%
• Outside Size：950×400×1160mm
• Max. Piston Lift Speed：50mm,Min
• Transport Package：Export Standard Package
• Trademark：YUFENG
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：100pieces,Month

Basic Info.

Model NO. STYE-2000/1000 Weight 500-1000Kg Max. Testing Power 2000kn Measuring Range 0-2000kn Relative Indication Error ±1% Testing Power Precision Grade1 Size of The Bearing Plate 320×260mm Max. Distance Between The up and Down Be 310mm Max. Piston Stroke 90mm Power AC220V±10% or AC380±10% Outside Size 950×400×1160mm Max. Piston Lift Speed 50mm/Min Transport Package Export Standard Package Trademark YUFENG Origin Made in China HS Code 9031809090 Production Capacity 100pieces/Month

Product Description

STYE-2000 CTM Digital Display Hydraulic Compression Testing Machine
Product Description

Use:
    STYE-2000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes, cylinders, hollow blocks and various other materials in accordance with International standard. The machine is electro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.

Feature:
Efficient hydraulic power packs

Economic machines ideal for site use

Designed to meet the need for a simple, economic and reliable means of testing concrete.
The dimensions of the frame allow the testing of cylinders up to 320 mm long x 160 mm diameter, and cubes
200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.
Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines in the range.
Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.

Specification:

STYE-2000
Max. testing power: 2000kN
Measuring range: 0-2000kN
Relative indication error: ±1%
Testing power Precision:grade1
Size of the bearing plate: 320×260mm
Max. distance between the up and down bearing
plates: 310mm
Max. piston stroke: 90mm
Rated pressure of the hydraulic pump: 40MPa
Power: AC220V±10% or AC380±10%
Outside size: 950×400×1160mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 850KGS
Noise: ≤80Db


Packaging & Shipping

Packing Material: Plywood Case meeting export long transport requirement.
Packing Method: Horizontal Packing to saving more shipping cost.
Shipping : within 5-10 days after receive 100% payment .
Shipping way: shipped by sea or Air is available.

Company Information
We are one of the  professional  manufacturing enterprises of geotechnical instruments, highway instruments and building material instruments in China. Our company's main products are divided into 13 series:
 1. Material Testing machines
 2. Soil Testing Equipment
 3. Cement Testing Equipment
 4. Concrete Testing Equipment
 5. Asphalt Testing Machines
 6. Rock Testing Equipment
 7. Aggregate
 8. Highway Testing Equipment
 9. Balances
 10. Moulds
 11. Sieves
 12. Lab Equipment
 13. Tools and Accessories for Lab
 14. Testing Equipments for drilling liquid mud

Our Services
Your inquiries will be replied in 24 hours, 24 hours technical support by email
Honesty to working for you, after or before  sale with our patient and sincerity.
If any products meet your demand, please feel free to contact us. We are sure your any inquiry or requirement will get prompt reply.

FAQ
1. Factory + trade (integration),35years focusing on test instruments field
2. We accept T/T, L/C or Western Union.
3. Generally about 15 days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
4.  For our products, we will give your professional guidance ( Product introduction  and operation  manual ). Air is available.

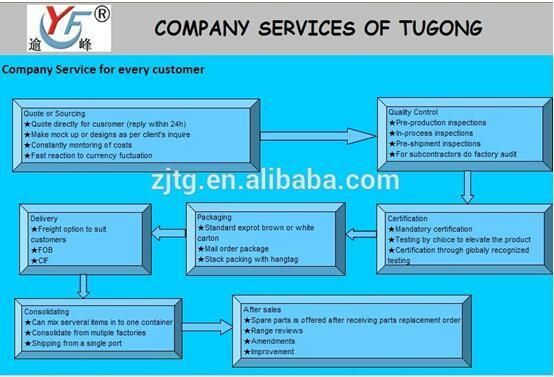

Company Services

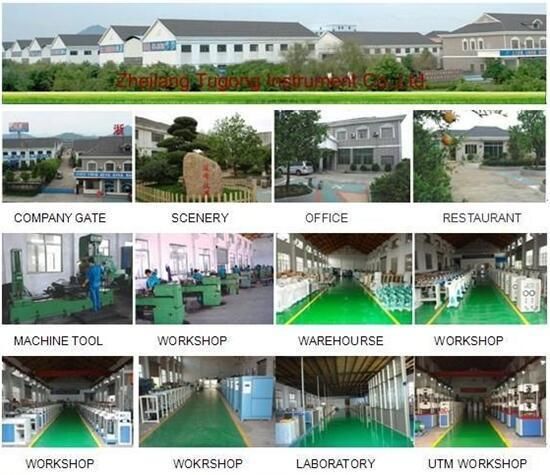

Company View
