• Model NO.：WAW-1000L
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Transport Package：Strandard Export Wooden Case
• Specification：2 cubic meter
• Trademark：HST OR OEM
• Origin：Shandong, China
• HS Code：9024800000
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. WAW-1000L Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Transport Package Strandard Export Wooden Case Specification 2 cubic meter Trademark HST OR OEM Origin Shandong, China HS Code 9024800000 Production Capacity 20 Set Per Month

Product Description

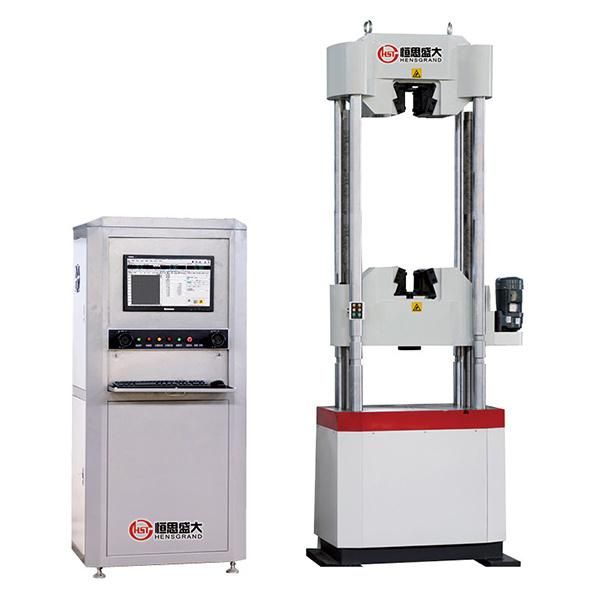

WAW-1000L Computeried Steel Strand Tensile Testing Machine

Application:
This machine is mainly used in the tensile mechanical properties test of the steel strand test. Attached with simple accessories and devices, it can be used to test rebar, plastic, rubber, ceramic, building materials, metal material and so on.
Widely used in space flight and aviation, petrochemical industry, mechanical manufacture, constructional engineering and university and college, mining industry, research institution and other fields.
Product Description:
Main Components: Host, Oil Source, Measurement And Control System, Manual Control The Test Process, Computer Dispose The Test Data And Calculate FM, RPO.2, RM And Ft Test Result Of The Materials Automatically After Stop.
Technical Parameter:

Model	WAW-1000L
Max. Test Force	1000 KN (100 TONS)
Structure	Four Columns Two Ball Screws Centring Adjustable, Oil Cylinder Down-setting Type.
Control Model	Constant Stress, Constant Strain, Constant Displacement, Closed-loop Control System.
Test Machine Class	1 Class
Test Force Range	2%~100%FS (20KN~1000KN)
Relative Error Of Force Reading	≥±1%
Deformation Measurement Range	2%~100%FS
Relative Error Of Deformation Reading	≥±0.5%
Displacement Resolution	0.01mm
Relative Error Of Displacement Reading	≥±0.5%
Max. Piston Speed	0.5-50mm/min Stepless Speed
Beam Adjust Speed	250mm/min
Piston Stroke	250mm
