• Model NO.：HT-1600-EL
• After-sale Customer Service：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. HT-1600-EL After-sale Customer Service Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/Month

Product Description

HT-1600-EL Leading Manufacture Offer Electronic Notching Machine With Good Quality





Application


The electronic notching machine is used for the sample preparation of the non-metallic material when it is did the impact toughness testing by izod impact tester or the charpy impact tester.It can clamp 20 samples at a time, and the processing notch is more than 60 per 10 minutes. The notch size is accurate and the efficiency is high, which greatly reduces the intensity of operation.


Basic Standard

(1)ISO179-2010 Plastic Determination of impact properties of simply supported beams
 The 1^st part:Non-instrumental impact test;
(2)German version EN ISO 179-1:2010;
(3)ISO180-2001ISO 180-2000 Plastic--Determination of Izod impact strength;
(4)GB/T1043-2008 Plastic Determination of impact properties of simply supported beams
 The 1^st part :Non-instrument impact test;
(5)GB/T1843-2008 Plastic  Determination of impact strength of cantilever beam

Specifications

1.Workbench stroke:>160mm
2.Feed speed:30mm/min
3.Sample type: I model
4.Notch type: according to tool specifications
 A Model 45°±1° R=0.25±0.025mm
B Model 45°±1° R=1.0±0.025mm
C1 Model Notch thickness :0.8±0.1mm
C2 Model Notch thickness:2.0±0.2mm
5.Feed amount: according to the standard
6.Outer Dimension:600mm×270mm×300mm
7.Power supply voltage: 220V, single-phase three-wire system


Packaging & Shipping

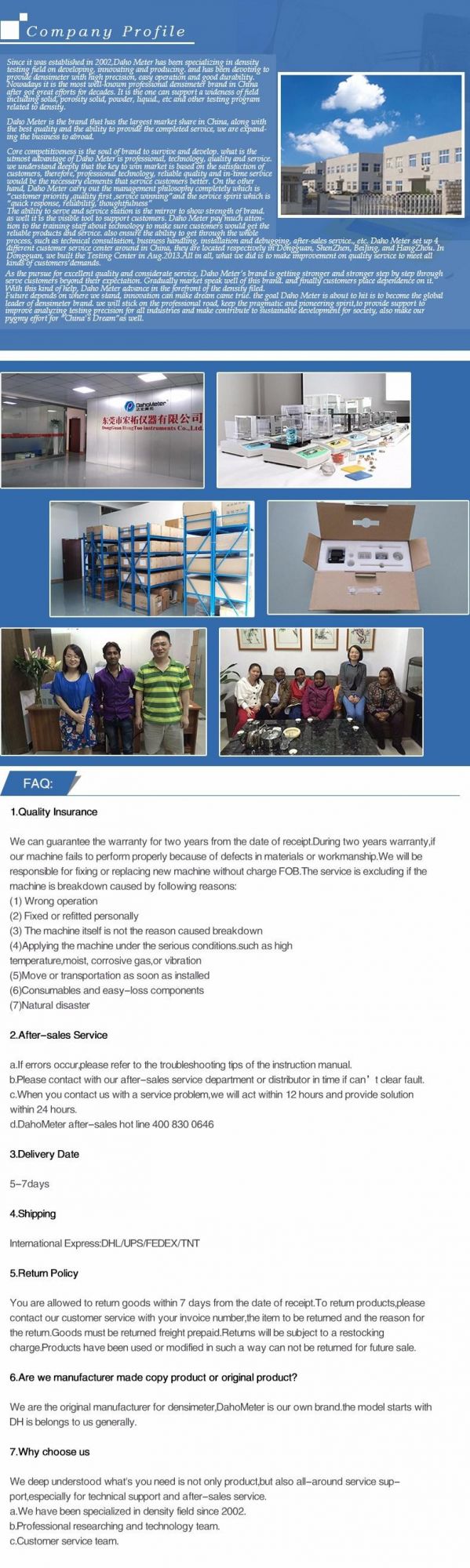

Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
