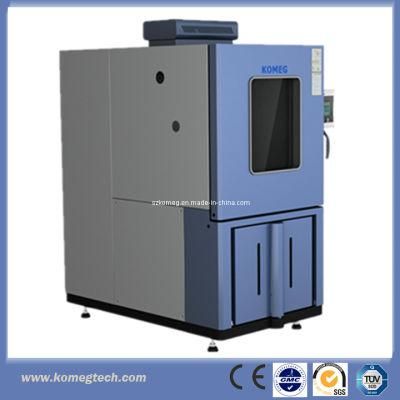

• Model NO.：KTS-B Series
• Low Temp. Chamber：-70 Oc~-10 Oc
• Pre-Heat Time：+60 Oc~+200 Oc Within 20mins
• Pre-Cold Time：+20 Oc~-70 Oc Within 60mins
• Test Chamber：-55 Oc~+150 Oc
• Controller：Touch Screen Controller Chinese and English Menu
• Safety Devices：No Fuse Breaker, Over Pressure, Over Heat and Over
• Transport Package：Strong Plywood Case, Meet International Standard
• Specification：Standard and customs made, ISO9001, SGS
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：169 Sets Per Year

Model

KTS-B Series

72B100B150B200B252B300B480BInterior sizeW(mm)450500600670700800800H(mm)400450500600600600800D(mm)400450500500600650750Exterior sizeW(mm)1490154016401720175018501850H(mm)1790184018902000200020002200D(mm)1600170018301850193019802500Test weight(KG)5101215182020Low Temp. chamber -70ºC~-10ºCPre-cooling time +20ºC~-70ºC ,Within 60 minTest. chamber -55ºC~+150ºCHigh Temp. chamber +60ºC~+200ºCPre-heating time +60ºC~+200ºC ,Within 20 minRecovery timeHigh-Temp Exposure 30 minLow-Temp Exposure 30 minRecovery time within 5 minSafety deviceNo fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protectionStandard accessoryCable port(portΦ50mm)*1, shelves*2Interior materialStainless steel plate(SUS 304)Exterior materialBaked painting steel or stainless steel(SUS304)Insulation materialRigid polyurethane Foam+glass fiber woolRefrigeration systemWater CooledSemi-hermetic compressor, cascade  refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)ControllerPanel:7-inch LCD Touch panel,Chinese or English display selectableOperation model:Program or fix point runningMemory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.Accuracy:Temp.:0.1% of F.S±1 digit     Humidity:0.1% of F.S±1 digitInput:Temp.:pt-100                Humidity:pt-100 or ~5V DCVAmbient Temp.+5ºC~+35ºCPowerAC 380±10%50Hz ,3 phase 4 wires +Ground WiresNote:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
