• Model NO.：GW-030
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-030b
• Sampling：8 PCS
• Testing Speed：100+,-5 Times,Min
• Clamps：6 Sets
• Testing Angle：90 Deg
• Lad Weight：454+,-5g,6PCS
• Counter：LCD,0-999999
• Power：AC 220V,50Hz
• Transport Package：Standard Export Safety Packing
• Specification：0~100KG
• Trademark：Great win
• Origin：China
• HS Code：9024800000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. GW-030 Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-030b Sampling 8 PCS Testing Speed 100+/-5 Times/Min Clamps 6 Sets Testing Angle 90 Deg Lad Weight 454+/-5g,6PCS Counter LCD,0-999999 Power AC 220V,50Hz Transport Package Standard Export Safety Packing Specification 0~100KG Trademark Great win Origin China HS Code 9024800000 Production Capacity 1000PCS/Month

Product Description

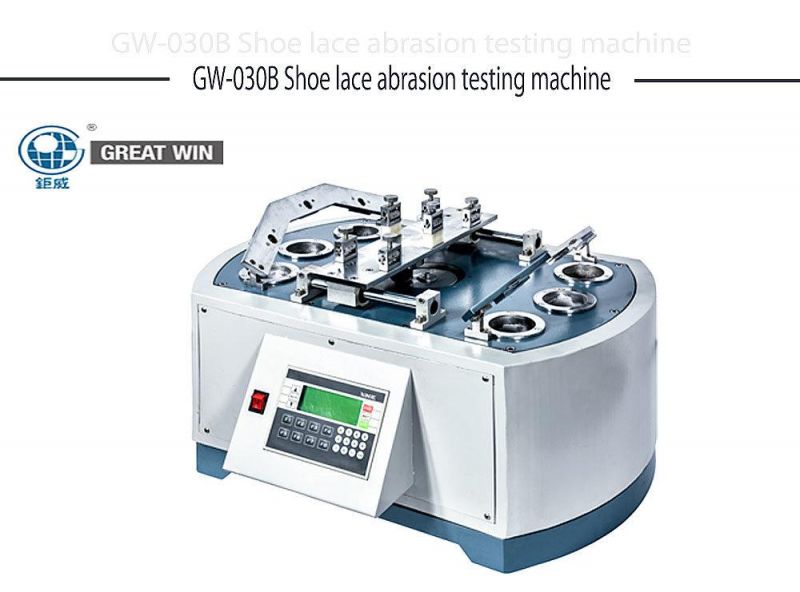

      Shoe lace and eyelets abrasion testing machine/equipment (GW-030 )

•Brief introduction:

   This tester simulates the lace under the reciprocal abrasion at a specified tension to test the longevity. The movable site is driven by motor at 60r/min to create reciprocally horizontal movement with a stroke of 35mm. The test will not be performed until specimen breaks and or reaches the rated   cycles.

•Technical Specifications:

Model	GW-030  Shoe lace-eyelets abrasion testing machine
Sampling:	6pcs
Stroke:	76 ± 2 mm
Testing speed:	100 ± 5 times/min
Clamps:	6sets
Angle:	90°
Load weight:	454 ± 5g, 6pcs
Counter:	LCD, 0~999,999
Power:	1∮,display AC220V
Fiberboard:	25*25*3mm
Dimension:	60*43*43mm
Weight:	75kg (without load weight)



•Standard for:

BS 5131:3.6:1991





What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
