• Model NO.：GW-004
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-004
• Cloth Tape Size：1930+,-50mm,140+,-5mm
• Sampling：Max. 6 PCS
• Cloth Tape Speed：90 Cycles,Min
• Large Central Wheel Diameter：225mm
• Small Central Wheel Diameter：60mm,90mm,120mm
• Dimension：110*56*62cm
• Power：AC 220V,50Hz
• Transport Package：Wooden Case
• Specification：110*56*62cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-004 Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-004 Cloth Tape Size 1930+/-50mm,140+/-5mm Sampling Max. 6 PCS Cloth Tape Speed 90 Cycles/Min Large Central Wheel Diameter 225mm Small Central Wheel Diameter 60mm,90mm,120mm Dimension 110*56*62cm Power AC 220V,50Hz Transport Package Wooden Case Specification 110*56*62cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

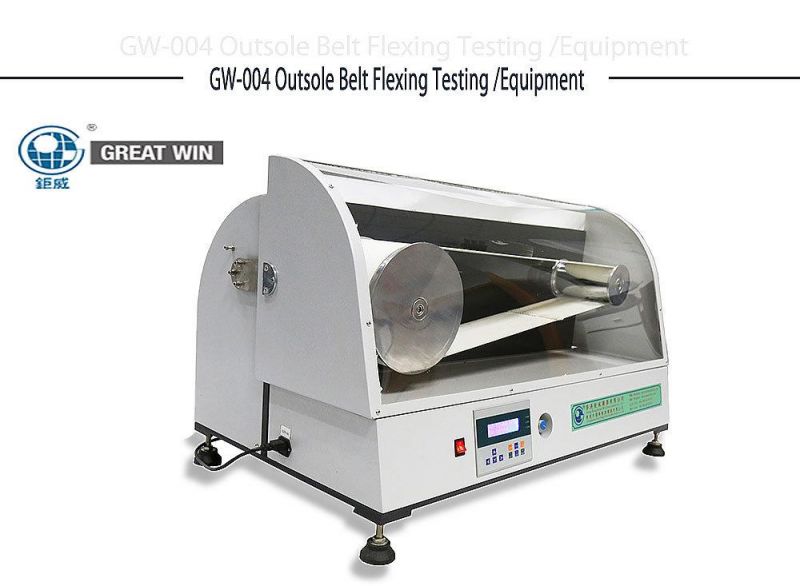

  Outsole belt flexing testing machine/equipmnet( GW-004)

•Brief introduction:

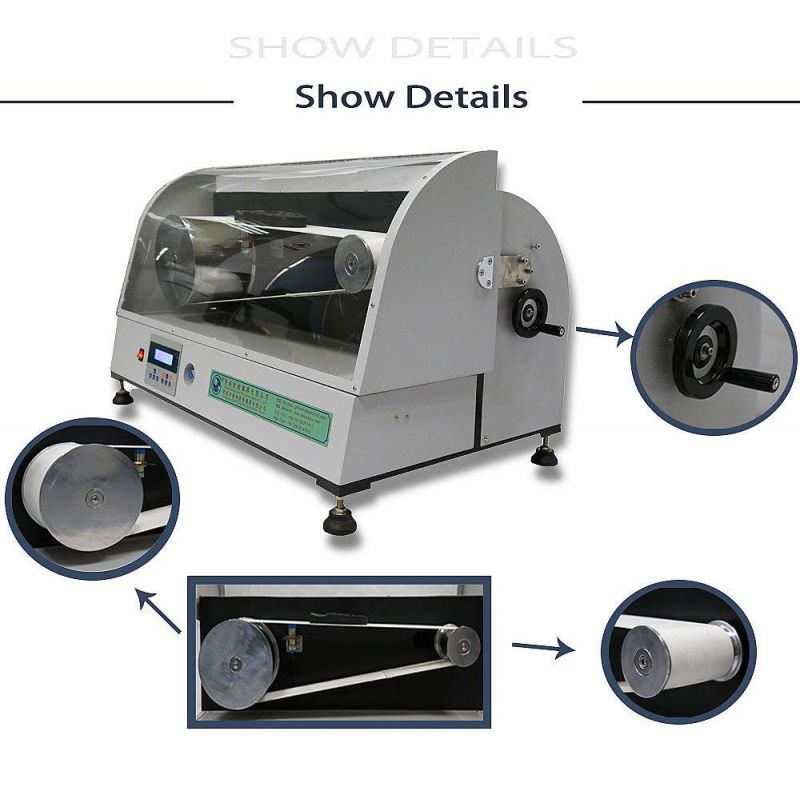

   This machine proves one of the best indications of cracking of shoe due to flexing in wear. The sole forepart is attached to an endless belt which passes around two pulleys, the large one provides the rotation whilst the small one determines the severity of the flexing action. It is supplied with three small pulleys of varing diameters to increase or decrease the amount of flexing.

•Technical specifications:

Cloth tape size:	Length: 1930 ±50mm, width: 140 ±5mm;
Sampling:	max.6pcs;
Cloth tape speed:	90cycles/min;
Large central wheel diameter:	φ225mm;
Small central wheel diameter:	φ60mm,φ90mm,φ120mm;
Dimension:	110*56*62cm;
Weight:	170kg;
Power:	AC220V,3A

•Standard for :
SATRA TM133

•Attached accessories:
2pcs cloth tapes
1pc hex wrench


What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
