• Model NO.：TLS-S
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：None
• Delivery Time：3 Days After Get Tt Payment
• Max Test Force(N)：50-2000
• Test Force Accuracy(N)：0.005-0.2
• Displacement Accuracy (mm)：0.01
• Plate Size(mm)：60-110
• Transport Package：Standard Export Packing
• Specification：610*360*980mm
• Trademark：HST
• Origin：China
• HS Code：9031809090
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. TLS-S Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position None Delivery Time 3 Days After Get Tt Payment Max Test Force(N) 50-2000 Test Force Accuracy(N) 0.005-0.2 Displacement Accuracy (mm) 0.01 Plate Size(mm) 60-110 Transport Package Standard Export Packing Specification 610*360*980mm Trademark HST Origin China HS Code 9031809090 Production Capacity 300 Sets Per Month

Product Description

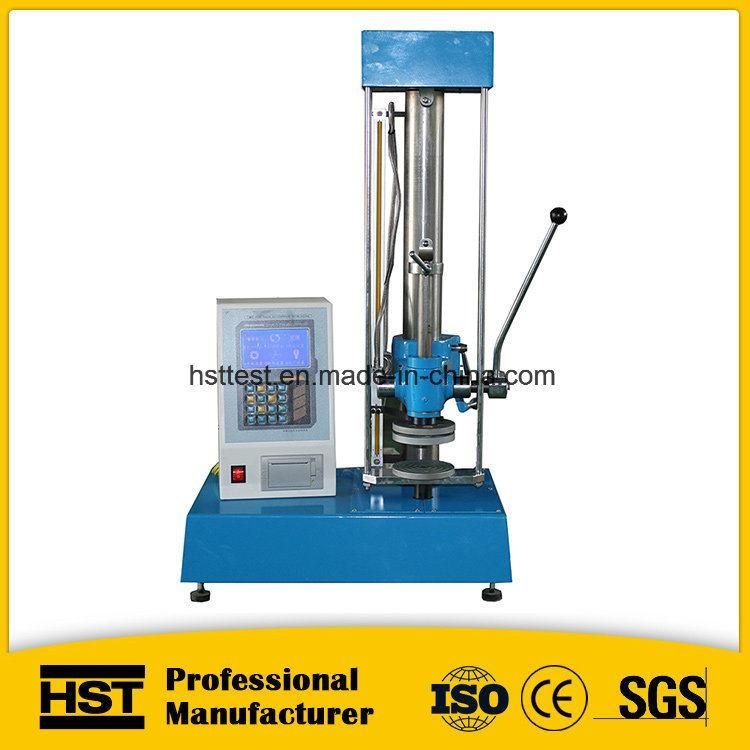

Cheap 50/200/500/1000/2000N Spring Compression Tensile Testing Machine


Application:
This machine is based on the country's spring and compressive tester standards of technical requirement is made, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Can the compression spring, dish above precision extension spring, spring, spring, leaf-spring tower, card of spring, spring, spring, composite, gas springs, die spring, and special spring precision tension of the spring, stress, displacement, stiffness and strength test and analysis.
Main specification:

Max test force(N)	50	100	200	500	1000	2000
Test force accuracy(N)	0.005	0.01	0.02	0.05	0.1	0.2
Displacement accuracy (mm)	0.01	0.01	0.01	0.01	0.01	0.01
Tensile test max distance  between two pressure plate(mm)	220	220	220	220	270	270
Compression test max distance between two pressure plate(mm)	220	220	220	220	270	270
Plate size(mm)	60	60	60	60	110	110

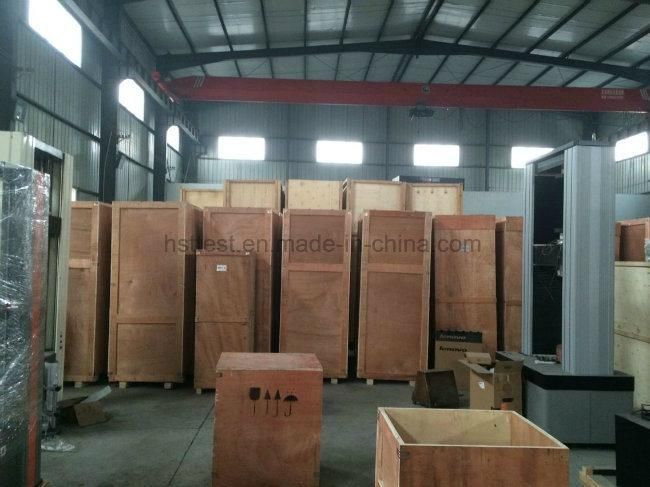

The below are the machines after packing by standard wooden box before shipping :(very strong box)

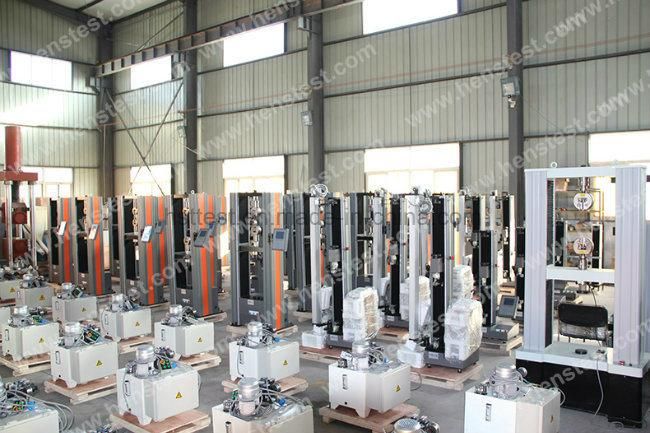

The below are electronic machines finished testing, really very beautiful, precise and strong


Certifications show:


Dear Customer, we have Electronic universal testing machines from 200N to 600KN for choice.
