Zero Angle Package Impact Tester / Testing Equipment / Test Machine

Dongguan Haida Equipment Co., Ltd.
  • Warranty：One Year
  • Type：Impact Testing Machine
  • Maxcapacity：>1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HD-A523
  • Display：Digital
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Standards：Ista-1e
  • Plane Inclined to The Vertical Angle：10°
  • Delivery Time：25 Days After Receive The Deposit
  • Control System：PLC Type
  • Impact Surface Dimension(L*H)mm：1600*2200mm
  • Power Supply：220V, 50, 60Hz
  • Impact Surface Material：Rubber Wood with Two-Rail Steel Track
  • Velocity Range (M/S)：Velocity Range (M,S)
  • Load Capacity：Load Capacity
  • Transport Package：Strong Wooden Case
  • Specification：Ista-1e
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024800000
  • Production Capacity：150 Sets Per Month

Description

ItemDescriptionLoad capacity 100kg-600kg (can be customized)Impact surface dimension 1600*2200mm,2100*2400mm (can be customized)Rolling carriage table dimension1220*1220mm (can be customized)Control system Touch screen controllerMax. slide length 2200mm (can be customized)Plane inclined to the vertical angle0°, 15°(can be customized)Velocity range 1.1~2.3m/sImpact surface material Rubber wood with two-rail steel trackWorking conditionTemperature 0~40°, humidity ≤80%  (no condensation)Floor area7220*1800mmSafety features E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat  Features of ISTA Carton Incline Impact Force Test Machine:

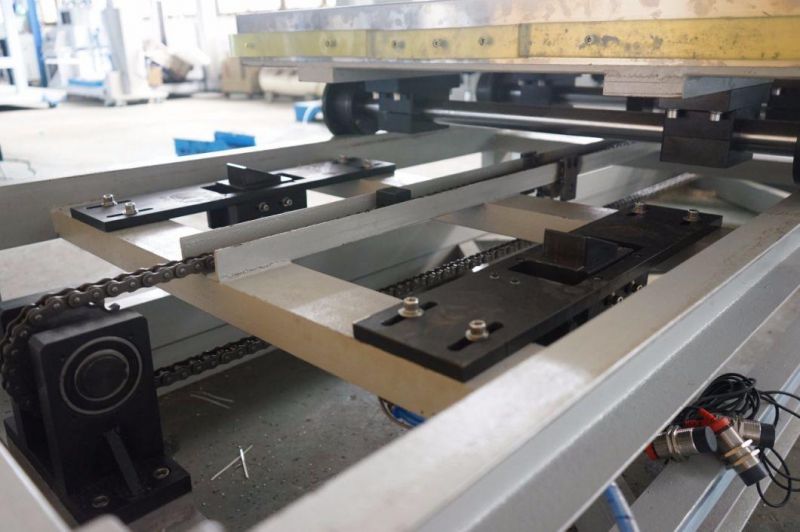

1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.

2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.

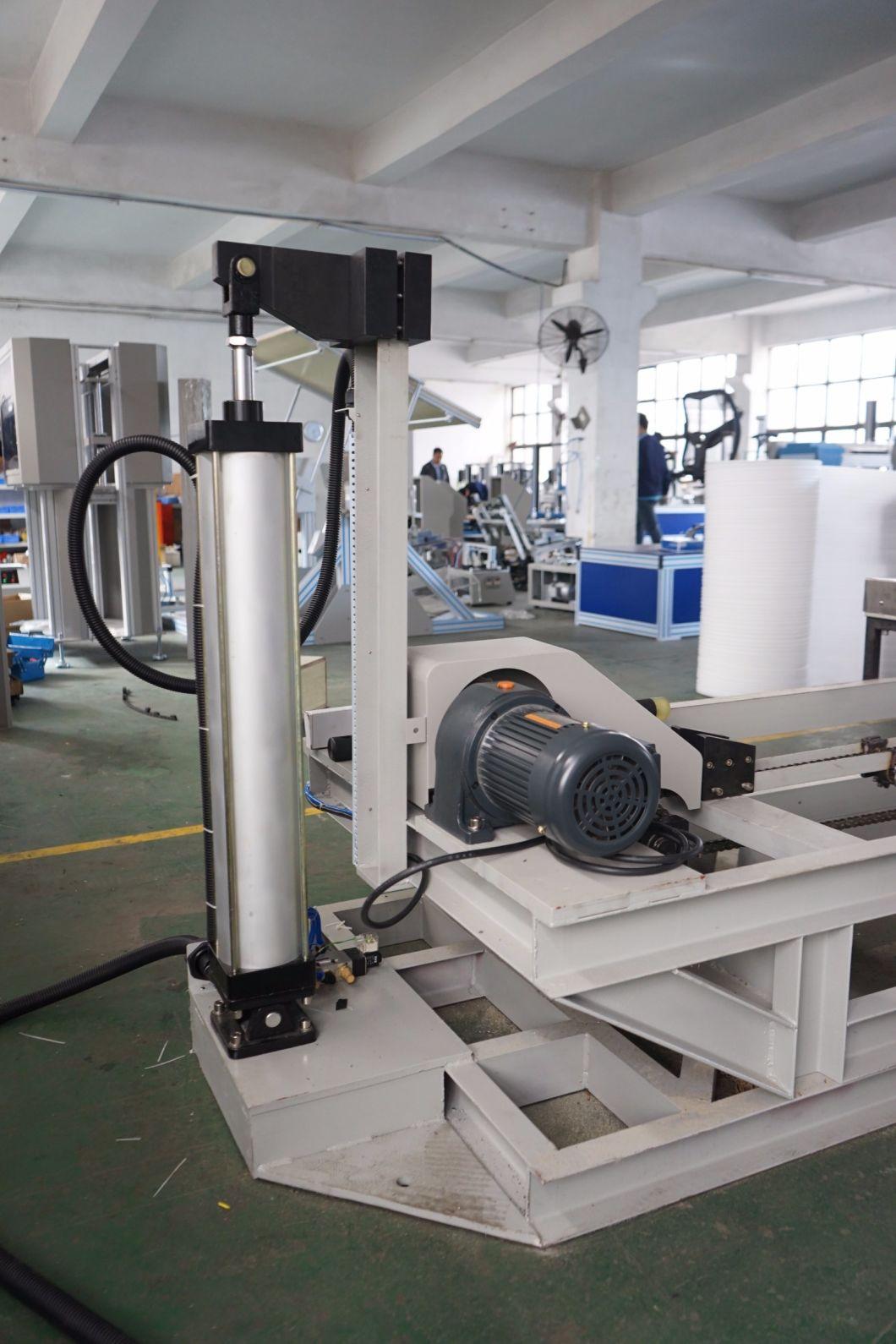

3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.

4. In order to keep the test staff completely safe, the tester is with remote control function.

5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.

Explanation:
1. Power: The battery main switch
2. Stop: Stop test
3. Start: Press this button to start the test (it will be automatic stop when get the test times)
4.  up & down: Press UP or DOWN to adjust the rolling carriage up and down, the max. angle of rolling carriage with base is 13°
5. Counter: Setting the test times
6. Speed display: To display the velocity during test (m/s), and will automatic reset for another test
7. Time display: To display time during test(s)
8. Speeder: set the different frequency to change the impact velocity.

Zero Angle Package Impact Tester / Testing Equipment / Test Machine
Zero Angle Package Impact Tester / Testing Equipment / Test Machine
Zero Angle Package Impact Tester / Testing Equipment / Test Machine


Maintenance:
1.      Clean: Keep instrument clean at any time.
2.      Antirust: Spray antirust oil on the instrument one time regularly.
3.      Engine oil : Refuel lubricant oil on the moving parts of the instrument regularly (choose regular engine oil is ok).

Company Information:
Zero Angle Package Impact Tester / Testing Equipment / Test MachineZero Angle Package Impact Tester / Testing Equipment / Test Machine

Quality Guarantee of ISTA Carton Incline Impact Force Test Machine:

A)  Quality assurance items
The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)
1.      During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for nonexpendable part) induced by non-human damage;
2.      If any quality problems occurs within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by customer;
3.      If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by customer, also charge for a favorable price;
4.      Haida will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance;

B)  The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
please keep the guarantee letter, if you lost it, please connect with us in a month.
If the guarantee letter has been altered or it has no our stamp, it is useless.

C)  The following conditions need to be paid reasonably even in the assurance period:
Natural reasons
Operating mistakes
Voltage is not fit for our operation instruction
Repack it without our guides
Damaged for borrowing to others
Damaged for authorized machine modification
Damaged for authorized calibration
Authorized transshipment mistake
Serve for long distance area

D)  Attentions
Any service outside Guangdong, China , transport and travel fees shall be paid by customer.
The apparatus try not to be used in the following situations:
a. Vibration, rocking the occasion.
b. Direct sunlight.
c. Hot, dusty, damp places.
d. To ensure safe, AC supply of the machine should be well grounded.
e. Do not use strong solvents (such as: benzene, nitro oil) washing machine.
f. Do not inject water and debris into the machine; prevent damage to electrical components and electrical shock.
g. Instrument displays the disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.
