• Model NO.：GD-4110-I
• Heating Power：700W Tube Heater
• Display：LCD Display
• Power Supply：220V, 50Hz
• Warranty Period：1 Year
• Transport Package：Packed in Plywood
• Specification：Refer to the specifications
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：10000 Sets,Month

Basic Info.

Model NO. GD-4110-I Heating Power 700W Tube Heater Display LCD Display Power Supply 220V, 50Hz Warranty Period 1 Year Transport Package Packed in Plywood Specification Refer to the specifications Trademark GOLD Origin Chongqing of China HS Code 9031809090 Production Capacity 10000 Sets/Month

Product Description

ASTM D2265 grease dropping point apparatus for dropping point of lubricating grease experiment



Introduction:
The dropping point of a lubricating grease is an indication of the heat resistance of the grease and is the temperature at which it passes from a semi-solid to a liquid state under specific test conditions. It is dependent on the type of thickener used and the cohesiveness of the oil and thickener of a grease.

As grease temperature rises, penetration increases until the grease liquifies and the desired consistency is lost. Dropping point is the temperature at which a grease becomes a fluid enough to drip. The dropping point indicates the upper temperature limit at which a grease retains its structure, not the maximum temperature at which a grease may be used.
 Working condition:

1. Environmental temperature 0~35ºC, relative humidity≤85%.
2. The apparatus should be put on the horizontal worktable with sufficient illumination
3. Rating voltage: AC220V±10%,frequency:50Hz±1.
4. Grounding condition must be good.

Specifications:


Item Name	GD-4410I ASTM D2265 grease dropping point apparatus
Aluminum block oven Material	Alloy aluminum
Heating power	700W tube heater
Grease cup	made of chrome plated brass, size according with GB/T3498-83
Test tube	thin wall glass tube, size according with GB/T3498-83
Cup support	made of heat-resistant and hard glass
Thermometer	according with GB/T514-83,scale: -5~400ºC,minimum scale mark 1ºC



Features:

1. 6 groups of samples can be tested at the same time in 6 test tube wells.
2. Heated by aluminum block oven,same temperatures in test tube wells.
3. Intelligent temperature control device,temperature can be set discretionarily and displayed by number.
4. Repeatability of test result is good.

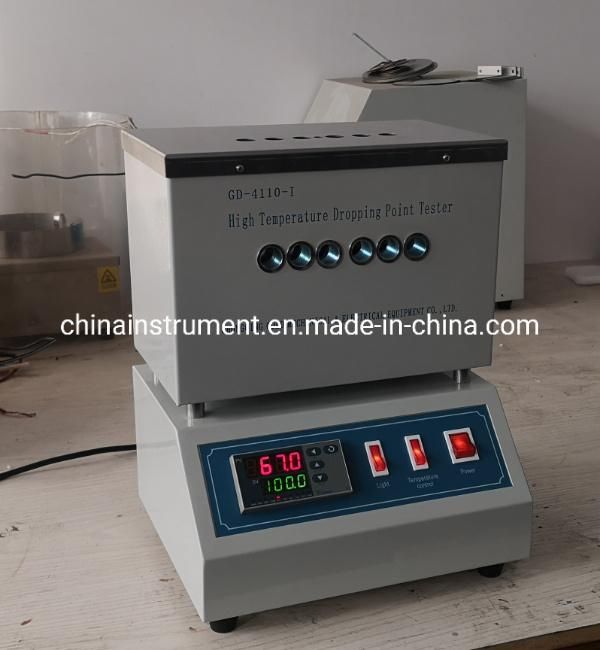

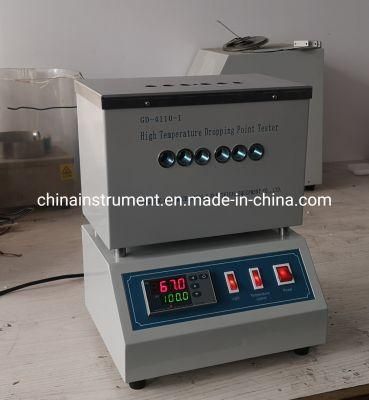

Real Pictures of ASTM D2265 grease dropping point apparatus:
