• Model NO.：ES-3
• Rated Speed(M/S)：2.0
• Rated Displacement：75(P-P)mm
• Max Loading：50-1000
• Rated Acceleration：1000m,S2
• Transport Package：Standard Wood Case
• Specification：Customized
• Trademark：ASLI
• Origin：China
• HS Code：90312000
• Production Capacity：100 Sets Per Month

 Model

Rated Sine

Force (N)

Rated

Random

Force (N)

Frequency

Range (Hz)

Rated

Acceleration

  (m/s2)

Rated

Speed(m/s)

Rated

Replacement

(p-p)mm

Max.

Loading

(Kg)

moving coil

(Kg)

Dimension

 of

Moving coil(mm)

ES-1

1000

1000

3-3500

400

1.2

25

70

2.5

Φ150

ES-3

3000

3000

3-3500

1000

1.6

25

100

3.5

Φ150

ES-6

6000

6000

3-3500

1000

1.6

25

180

6.5

Φ230

ES-10

10000

10000

3-3000

1000

1.8

51

270

14

Φ240

ES-20

20000

20000

3-3000

1000

1.8

51

300

30

Φ320

 ......

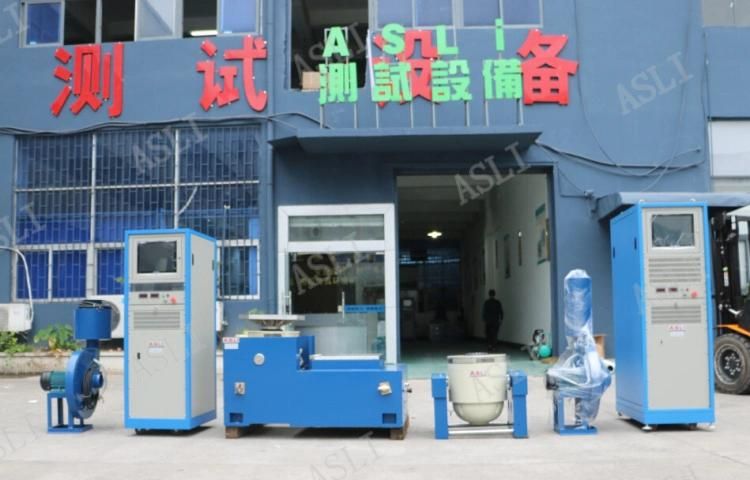

 ES-3  Electro dynamic vibration shaker

1. Parameters

(1) Rated Force: sine force 3000N; random force 3000N; shock force 6000N;

(2) Frequency Range: 3Hz to 3500Hz, Fixed frequency, sweep back and forth, sine, random, shock

(3)Sweep-frequency Mode: linear, logarithmic, sweep back and forth, fixed frequency

(4)Sweep-frequency Times: 1 to 32767

(5)Sweep-frequency Time: fixed frequency/single 1-3600mins, sweep-frequency curves can be displayed.

(7)Max. Speed: 1.6m/s

(8)Max. Displacement:25mmp-p (non load), double peak

(9)Impact Displacement: 25mm

(10)Weight of Moving Coil: 3.0kg

(11)Vibration Wave: sine, random, shock, the control spectra, wave, signal dynamic range can be displayed

(12)Diameter of the Moving Coil: Φ150 mm

(13)Vibration System Dimension: W950xH650xD800 mm

(14)Vibration System weight: 750KG

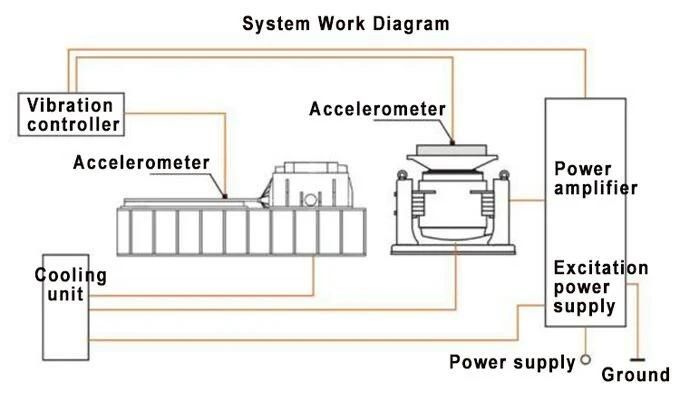

2 Vibration Components Details

 (1)Vibration Generator 1 set

 (2)Vibration Controller 1 set

 (3)Communication Connection Chamber 1 set

 (4)DA-3 Power Amplifier 1 set

 (5)Excitation Power 1 pc

 (6)Driver Software 1 set

 (7)Cooling System 1 set

 (8)Color Printer 1 set

 (9)Acceleration Sensor (include output line)    1 pc

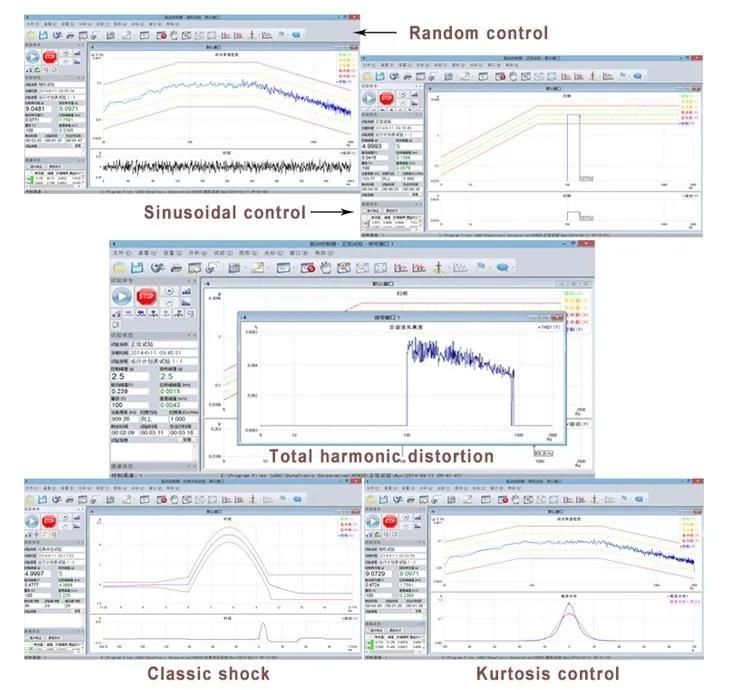

 2-4-2 Controlling Software Specification

    2-4-2-1 Sinusoidal Wave

         (1)Control Mode : sinusoidal waveform controlling software

         (2) Frequency Range: 1.0 to 5000hz ( 1.0 to 12000hz is optional)

         (3)Control Dynamic Range : 100dB

         (4)Closed-Loop Time: 10ms

         (5)Control Accuracy: ±1dB

         (6) Frequency Resolution: 0.01%

         (7) Sweep Velocity: linear sweep 0 to 6000hz/s; logarithmic sweep 0 to 6000hz/s

         (8)Wave Distortion: <0.3%

        2-4-2-2 Random Wave

         (1)Control Mode : PSD

         (2)Frequency Range: DC to 4800Hz,(DC to 11000Hz is optional)

         (3)Resolution: Max.1600 lines

         (4)Control Dynamic Range : 90dB

         (5)Closed-Loop Time: typically 100ms

         (6)Control Accuracy: ±1dB

        2-4-2-3 Shock Wave

         (1)Control Mode : waveform can be controlled

         (2)Shock Mode: half-sine wave,saw tooth wave,triangular wave,rectangular wave,trapezoidal wave

         (3)Frequency Range: DCto22000Hz

         (4)Frame: Max.32K

         (5)Duration Time : 0.5-3000ms

         (6)Compensation Mode: pre-pulse, after-pulse, pre/after-pulse

 4. Warranty: one year free warranty ,lifelong maintenance.

5. After-sale service: Feedback within 2 hours after get call.

6. Service:OEM service,Design service,Buyer lable service.

  ASLi (China) Test Equipment Co., Ltd  is a long history manufacturing test equipments, in the past 10 years, we devoted to manufacturing climatic chambers,simulation environronmental test equipment and Mechanical test equipment.

mbers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,vibration tester, mechanical shock tester,environmental combined vibration chamber,etc
