• Model NO.：JKJQ-1,100KV
• Standing Time：15min (Adjustable)
• Boosting Interval：5 Min (Adjustable)
• Boosting Frequency：1~9 Time(S) (Optional)
• Transport Package：Export Standard Wooden Cases
• Specification：465*385*425mm
• Trademark：REXON
• Origin：China
• HS Code：84212990
• Production Capacity：100000sets,Year

Basic Info.

Model NO. JKJQ-1/100KV Standing Time 15min (Adjustable) Boosting Interval 5 Min (Adjustable) Boosting Frequency 1~9 Time(S) (Optional) Transport Package Export Standard Wooden Cases Specification 465*385*425mm Trademark REXON Origin China HS Code 84212990 Production Capacity 100000sets/Year

Product Description

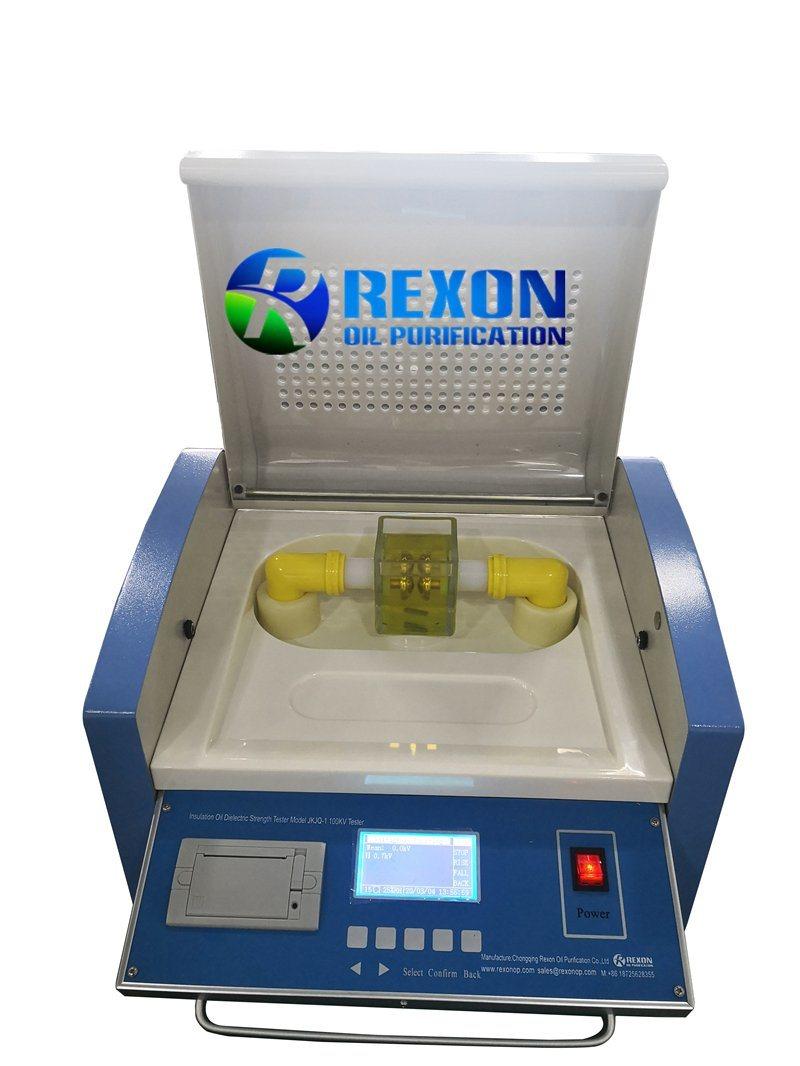

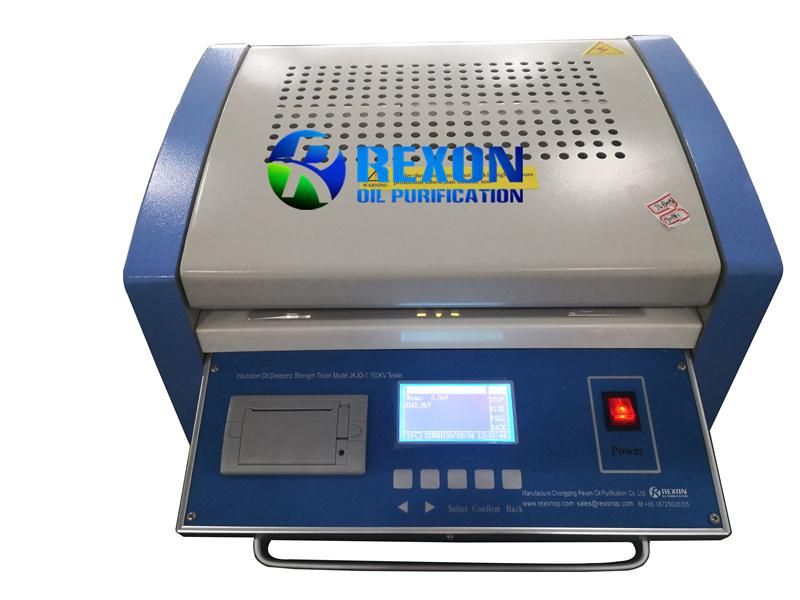

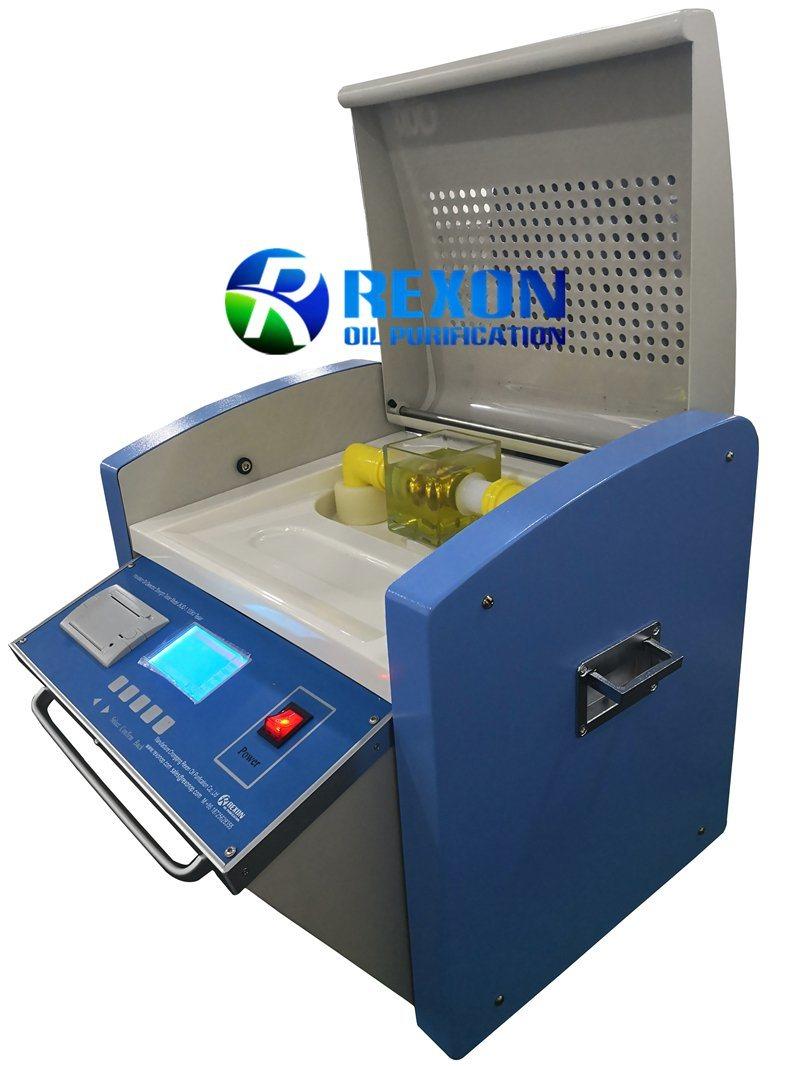

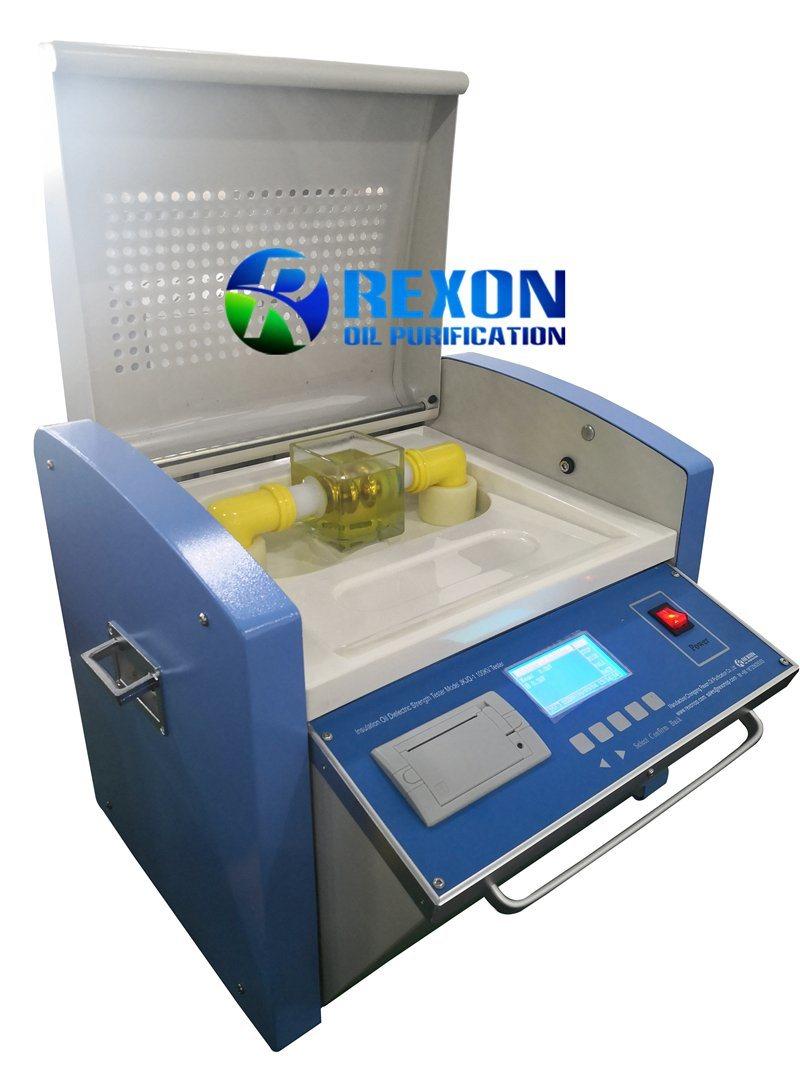

Insulation Oil Dielectric Strength Tester Breakdown Voltage Tester 0~100KV






OVERVIEW
Many power systems, railway systems, large-scale petrochemical plants and enterprises have a lot of electrical equipment whose internal insulation are mostly oil-filled insulation type, and therefore, test on insulating oil dielectric strength is common and necessary. To meet the needs of the market, we have developed and produced a series of insulating oil dielectric strength testers according to national standard GB/T507-2002, industry standard DL429.9-91 and the latest Electric Power Industry Standard DL/T846.7-2004 by ourselves. This instrument, by using a single-chip microcomputer as the core, can operate in full automation with high accuracy, greatly improving work efficiency and reducing the labor intensity of workers. Moreover, it is small in size and convenient to carry.


KEY FUNCTION AND FEATURE
1. With a microprocessor, automatically fulfill the withstand voltage test for oil circulation with a range of 0~100KV (including boosting, maintaining, mixing, standing, calculation, printing and other operations).
2. Display by large-screen LCD and prompt by Chinese menu.
3. Simple operation. The machine will automatically complete the withstand voltage test on one cup of sample oil after simple setting by the operator. Breakdown voltage value of 1 to 6 times and recurrent times will be automatically saved. After the test, the thermal printer will print each breakdown voltage value and average value.
4. Power-down preservation. It can save 100 tested results and displaying current ambient temperature and humidity.
5. Adopt a single-chip microcomputer to boost the voltage at an even speed. The voltage is accurate at 50HZ, ensuring the whole process easy for control.
6. Equipped with over-voltage, over-current and limit protections to ensure the safety of operators.
7. With the function of displaying the measured temperature and system clock.
8. Communicate with computer with a standard RS232 interface.


MAJOR TECHNICAL INDICATORS
1. Output voltage: 0~100KV (optional)
2. Voltage distortion rate: <3%
3. Voltage raising speed: 0.5~5 KV/S (adjustable)
4. Standing time: 15min (adjustable)
5. Boosting interval: 5 min (adjustable)
6.Boosting frequency: 1~9 time(s) (optional)
7. Booster capacity: 1.5KVA
8.Measuring accuracy: ±3%
9. Supply voltage: AC220V±10%, 50Hz±1 Hz
10. Power: 200W
11.Applicable temperature: 0ºC~45ºC
12.Applicable humidity: <75%RH
13. Overall dimension: 465×385×425


Other Oil Testers We Supply:

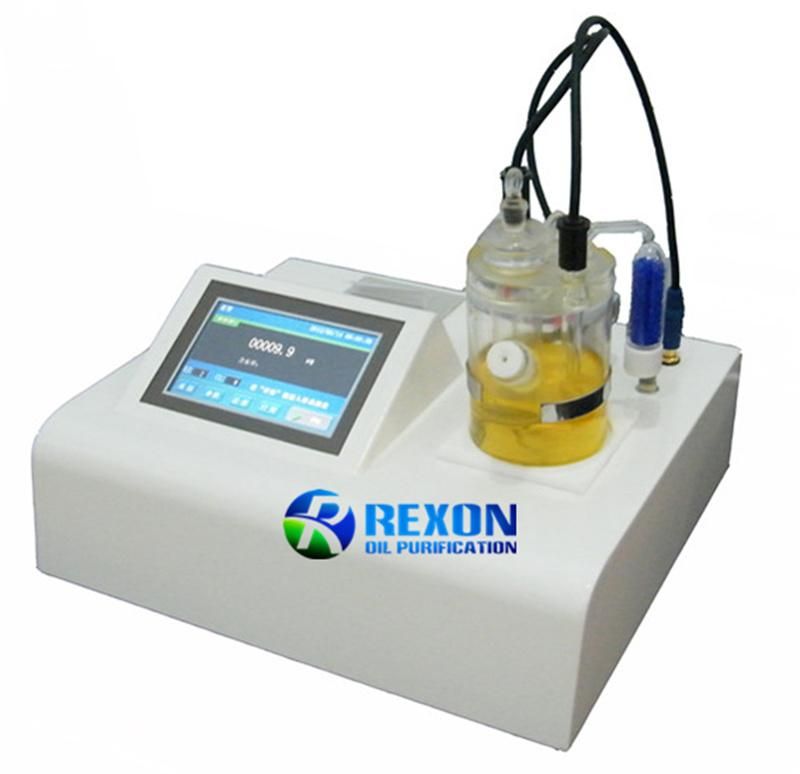

Miosture Tester

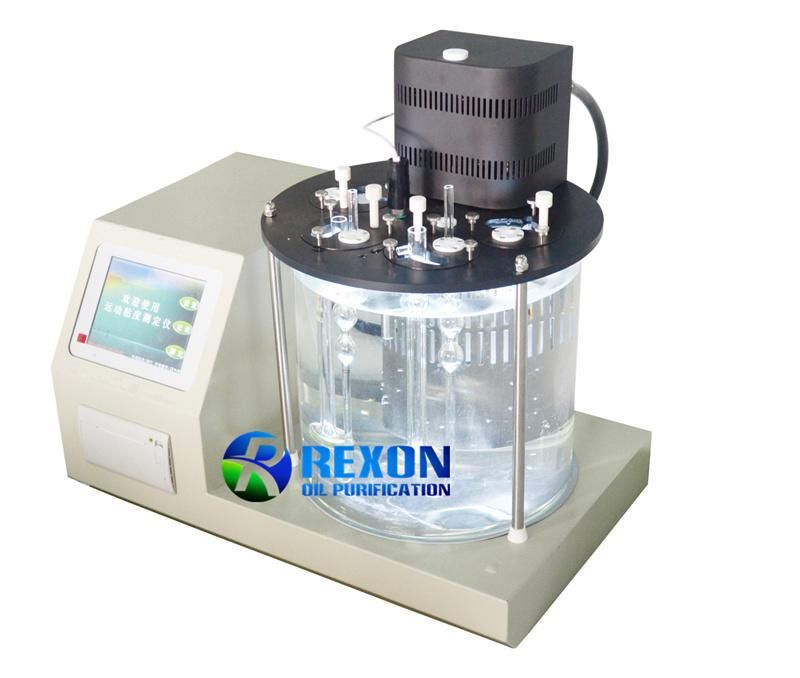

Viscosity Tester

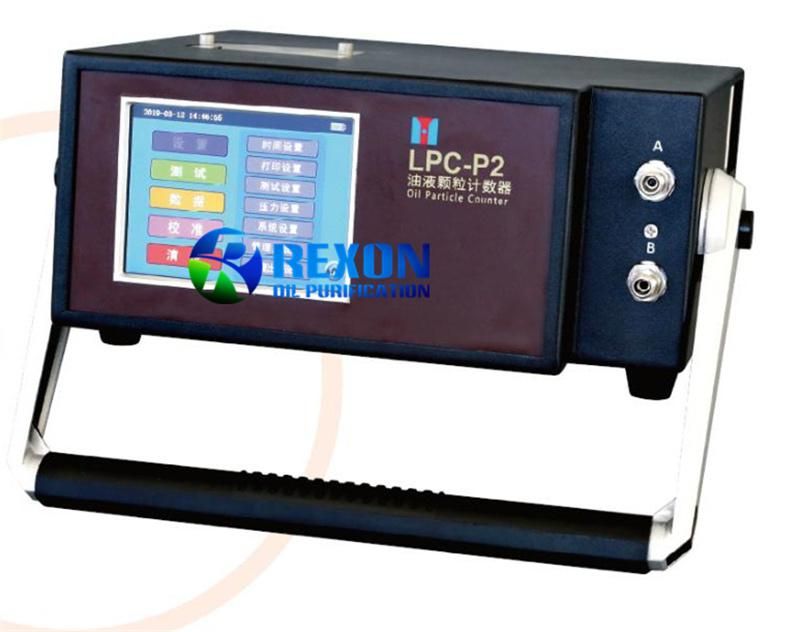

Oil Particle Counter

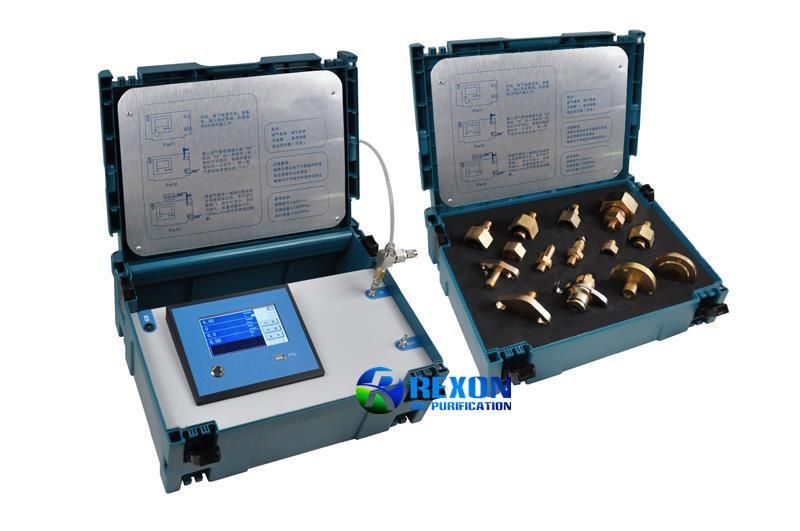

SF6 Moisture & Purity & Gas Decomposition Testing




About Rexon Oil Purification

We are the biggest leading manufacture of oil purifiers for all kinds of used or new oils in China. We supply best quality machines and offer professional technical support, A-class after-sales-service for customers. Our price is competitive and we take responsibility to guarantee any quality uncertainty. We design and produce our oil purifier machines with high quality raw materials and mature-technology by lots of well qualified technicians and skilled workers.

RECOMMEND PRODUCTS

For Insulating Oil (transformer oil, mutual inductor oil, valve oil and so on)
-Highly Effective Vacuum Oil Purifier
-Computer-Tested Highly Effective Vacuum Oil Purifier (ZY with oil tester)
-Mobile Type Multi-function Transformer Oil Treatment Machine
-Automatic Double-Stage Highly Effective Vacuum Transformer Oil Purifier
-Ultra-High Voltage Oil Regeneration Treatment
For Lubricant Oil (hydraulic oil, turbine oil, gear oil, diesel, heating oil and so on)
-Multi-function Lubricating Oil Purifier
-Highly Effective Vacuum Turbine Oil Purifier
-Hydraulic Regeneration Oil Purifier
-Coalescence-Separation Diesel Oil /Light Oil Purifier
-Centrifugal Vacuum Oil Purifier
-Phosphate Ester Fire-Resistant Oil Purifier
Other Kind Plants related:
-Highly Effective Vacuum Engine Oil Purification System
-Portable Oil Purifier
-Plate Pressure Oil Purifier
-Highly Effective Oil Filling Machine
-Small Portable Edible Oil Filtration Machine
Oil Testers:
-Transformer Oil BDV (Breakdown Voltage) Tester
- Oil Moisture Tester
- Oil Viscosity Tester
- Portable Oil Particle Counter
- Oil Flash Point Tester
- Oil Acid Tester

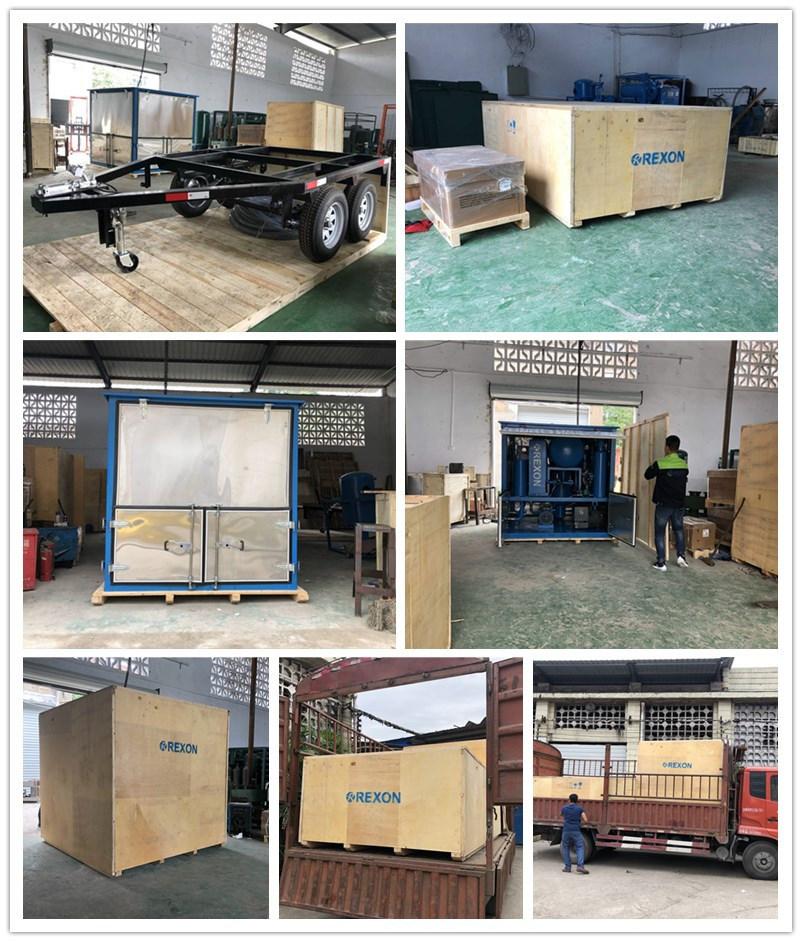

Packing & Delivery


Customer Visit

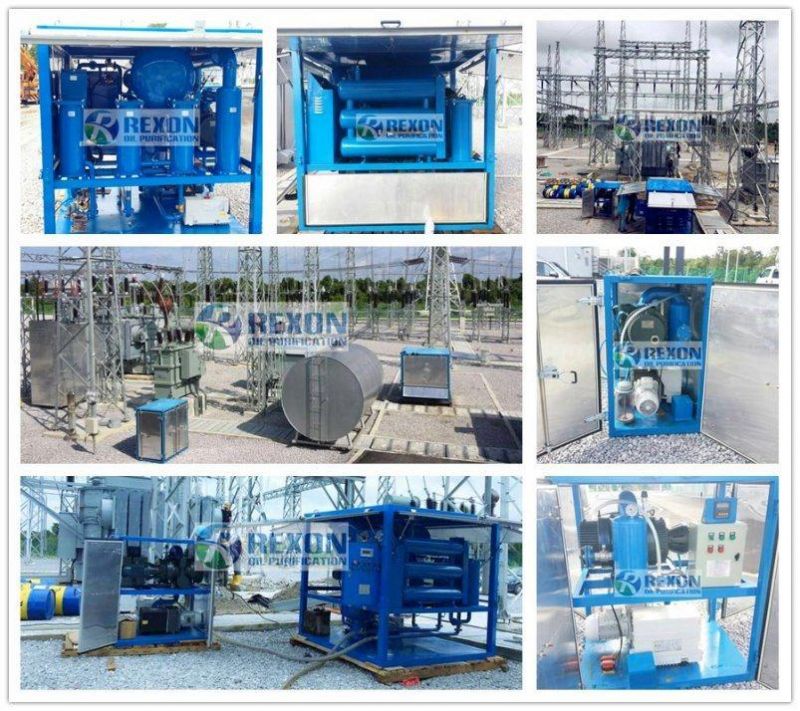

Onsite Project

For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you.
