Wl-DC3 Two-Row Connector Wire Color Sequence Detector Machine
Suzhou Crown Electronic Technology Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：WL-DC3
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Model：Wl-DC3
- Trigger：Auto Trigger
- Detection Accuracy：High Precision
- House Connector Width：Max.50mm
- Row of House Connector：Single Row
- Wire Placement Requirements：Arbitrarily Placed
- Support Output：FM-9A Supports I,O Output
- Features：Small Size and Light Weight
- Machine Net Weight：10.7kg
- Dimensions：43X26X38cm
- Transport Package：Wooden Case
- Specification：43x26x38cm
- Trademark：Crown
- Origin：China, Jiangsu
- HS Code：9026209090
- Production Capacity：50-120PCS,Min
Description
Basic Info.
Model NO. WL-DC3 Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Model Wl-DC3 Trigger Auto Trigger Detection Accuracy High Precision House Connector Width Max.50mm Row of House Connector Single Row Wire Placement Requirements Arbitrarily Placed Support Output FM-9A Supports I/O Output Features Small Size and Light Weight Machine Net Weight 10.7kg Dimensions 43X26X38cm Transport Package Wooden Case Specification 43x26x38cm Trademark Crown Origin China, Jiangsu HS Code 9026209090 Production Capacity 50-120PCS/MinProduct Description
Product description:WL-DC3 two-row connector wire harness Color sequence detector machine
The two-row connector wire sequence detector machine can detect the conduction performance, and color sequence of single-row or double-row wires.| Model | WL-DC3 |
| Camera pixels | 1280*1024; 60FPS COMS |
| Progressive lens parameters | megapixels: 75mm F1.4 |
| Field of view | 1-58mm |
| Detection time | within 0.25 |
| Power consumption | within 35W |
| Motherboard | embedded |
| The main MTBT | >50000 hours |
| Keyboard and mouse | standard mouse, built-in screen keyboard, external interface USB |
Features:
Super anti-interference ability
Suitable for all double-row wiring harnesses, stable and universal
Strong anti-interference ability, text, color circle, line placement, etc. will not affect the test results

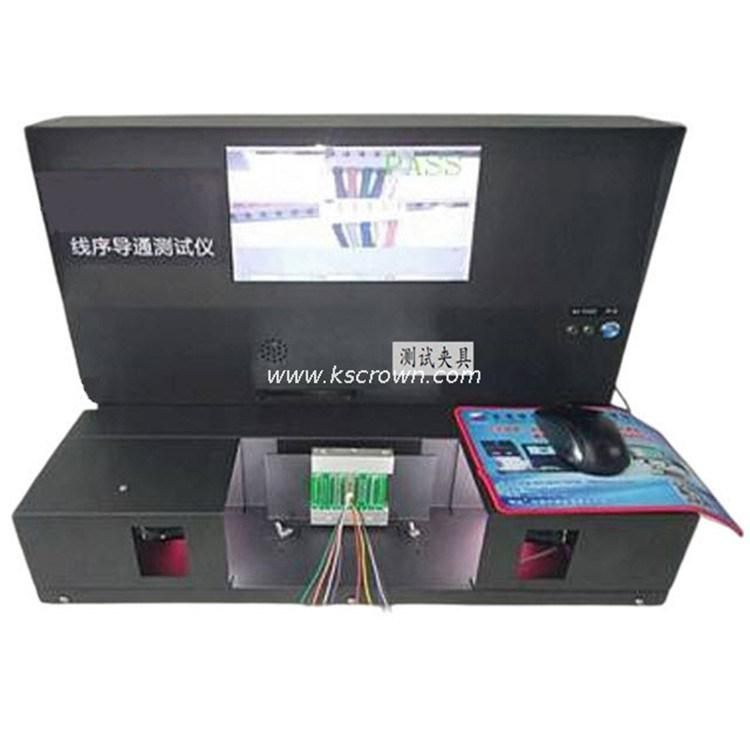

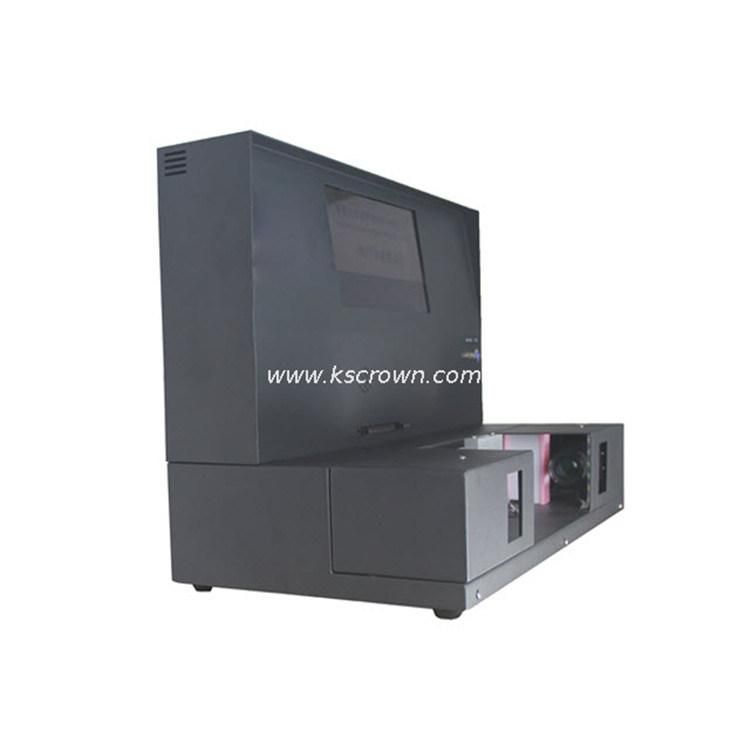

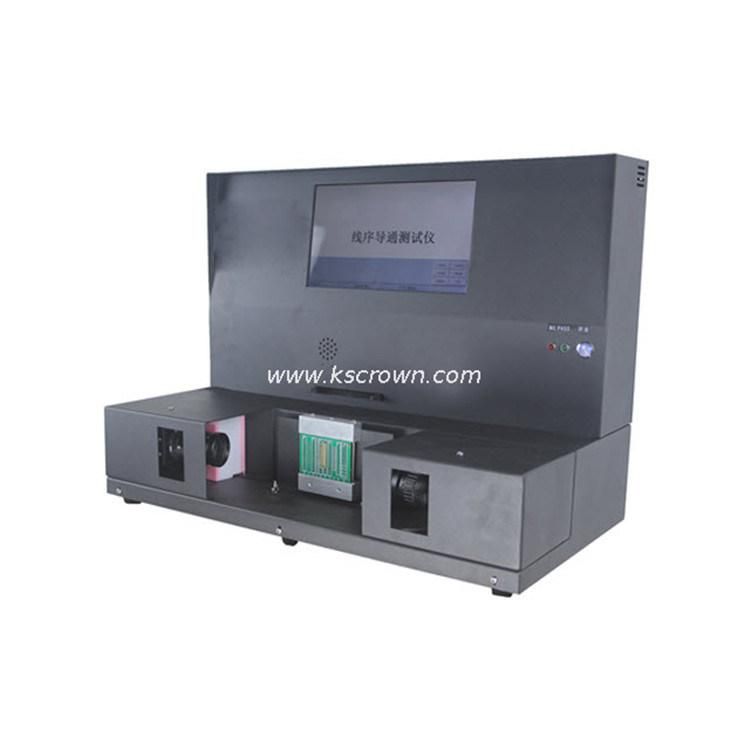

Product show:

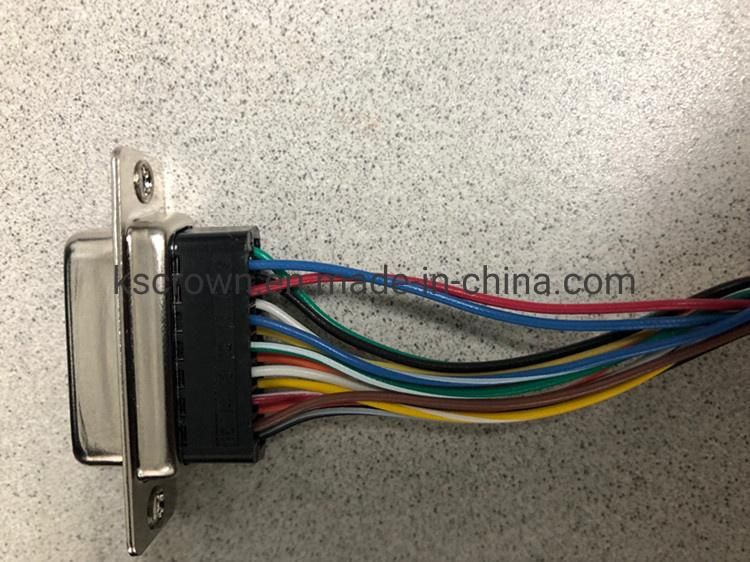

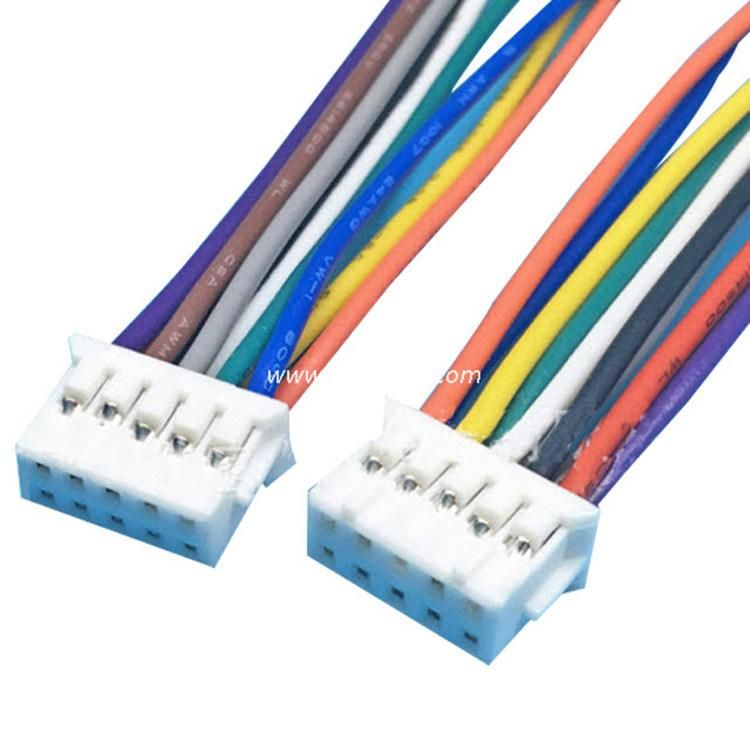

Machine processing samples:

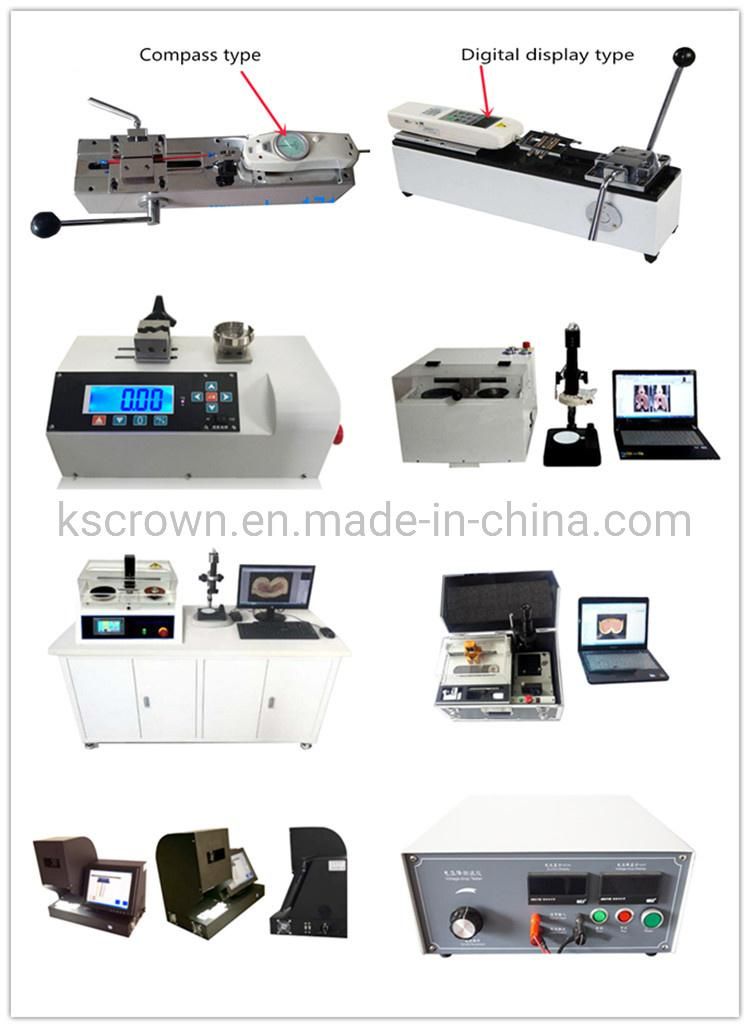

Related products:
Company information:
Certificate:
Contact:
Pls contact Suzhou Crown Kitty for price inquiry or any other questions/doubt.
