• Model NO.：TDC3100L
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：No

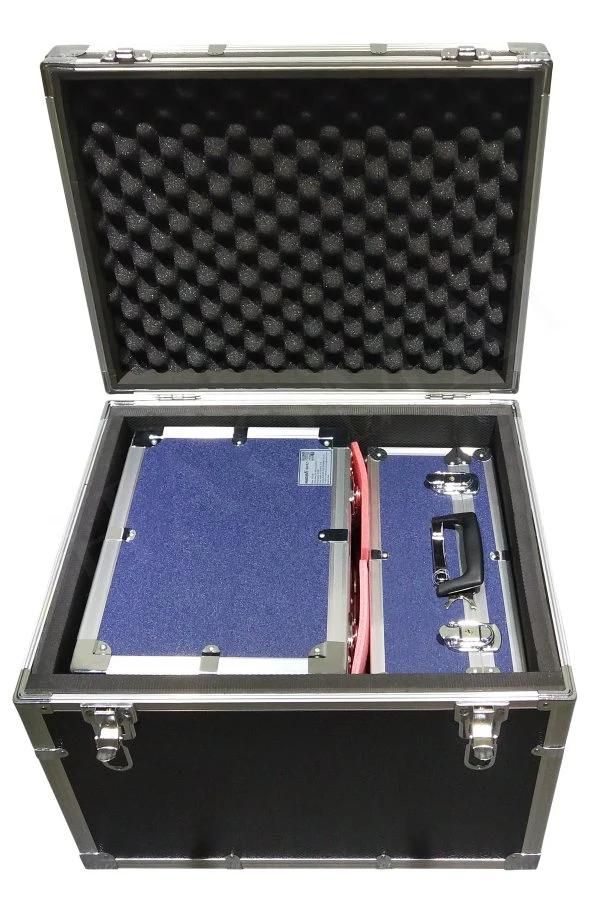

• Transport Package：Standard Export Wooden Package
• Specification：350x270mx270mm
• Trademark：FRA100
• Origin：Hubei China
• Production Capacity：100px,Week

Product Description

Transformer Tan Delta Power Factor Dielectric Dissipation Capacitance Tester
Model: TDC3100


Description
Tan Delta and Capacitance Tester TDC3100 is fully automatic 12 kV insulation power factor/dissipation factor (tan∂) test set designed for evaluating the nature and quality of electrical insulation materials and high voltage systems such as transformers, bushings, circuit breakers, cables and windings of rotating machines etc..
In addition to performing insulation power factor tests, TDC3100 is capable of testing capacitances of up to 60 nF at 12 kV.
As part of a routine maintenance program, capacitance and dissipation factor testing can aid in predicting potential failure of deteriorating insulation. By measuring dissipation factor of the specimen plus capacitance, undesirable conditions are found. They include conditions caused by moisture on or in the insulation, shorts or opens in windings or insulation, and conductive contaminants in insulating oil, gas or solid materials.
Tan Delta and Capacitance Tester TDC3100 includes interference suppression circuits that assure accurate measurements even under severe interference or noise conditions.
Measurements of TDC3100 include voltage, current, power, tan delta, power factor, capacitance and CVT ratio. The test results can be automatically stored into instrument, and can also be downloaded directly to USB storage or printed out via built-in thermal printer.

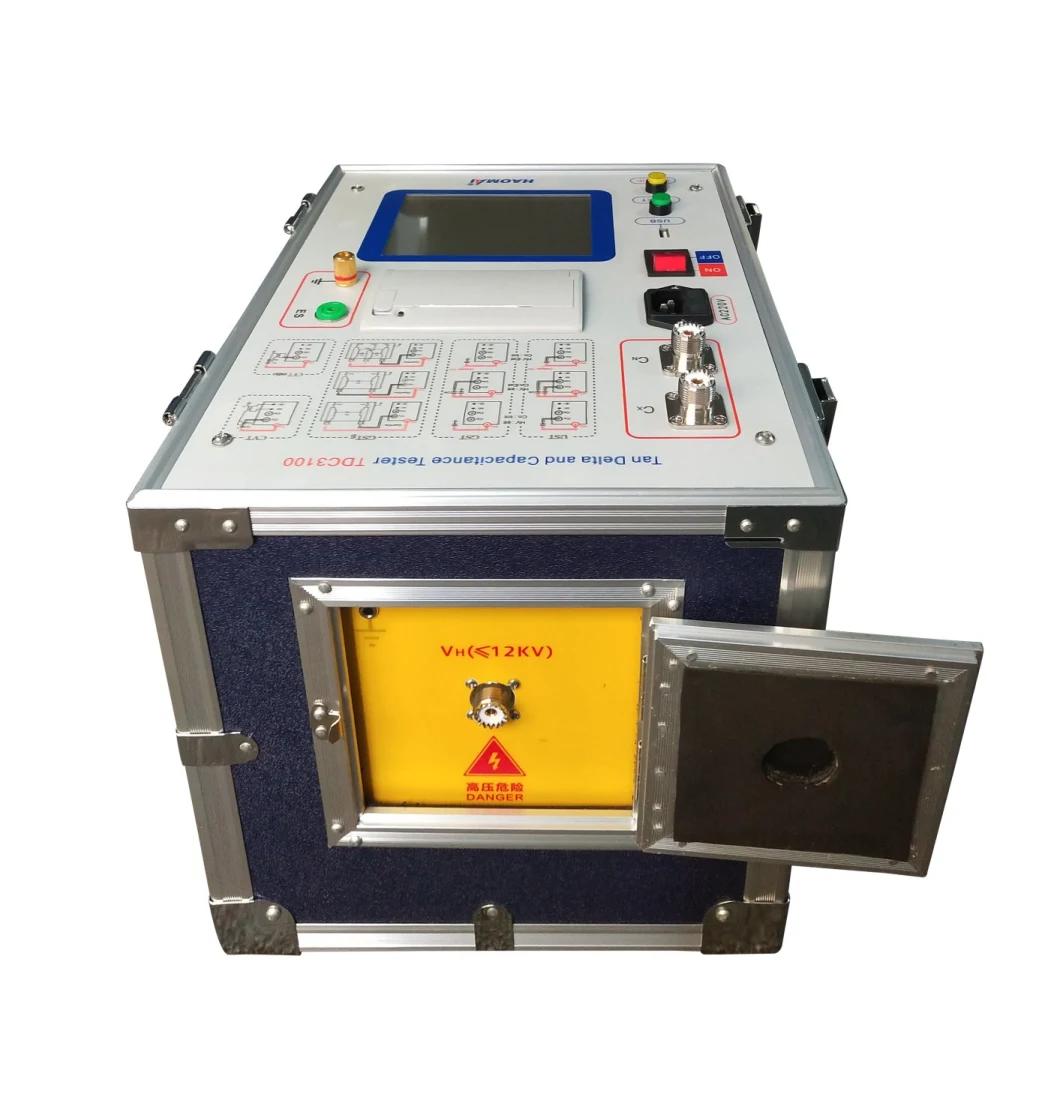

Tan Delta and Capacitance Tester TDC3100 is 22.8kg(50.27 lb), which makes it easy to transport to the testing locations. The touch screen on the panel of TDC3100 makes the operation easier and faster. Automatic balancing of dissipation factor significantly reduces the required testing time and provides high resolution.

Main Features

1. Company Profile



   HAOMAI ELECTRIC POWER AUTOMATION is established in 1999 and located in Wuhan of China, which is specialized in developing and manufacturing electrical power test and measurement instruments. HAOMAI products are widely used in power grid, petrochemical, metallurgy, railway, coal mine, research institutes and all kinds of large-scale factories or enterprises.mainly focuses on the sales and services of Protection Relay Test System, CT/PT Analyzer, Battery Load Tester, Transformer Testing Equipment, Circuit Breaker Analyzer, Partial Discharge Detector etc. electrical power test and measurement instruments.

   HAOMAI follows total quality criteria, and always maintains standardized process and procedures for continuous growth. HAOMAI has been certified by ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007.

   HAOMAI builds own RELAYSTAR laboratory and performance test laboratory, and possesses professional production equipment and testing instruments in factory, such as Agilent 34401A 6 1/2 High-precision Meter, FLUKE Multi-meter, EMH Standard Meter, CLOU Standard Power Source, Oscilloscope, Phase Meter, Insulation Test System, High Voltage Dividers, AC High Voltage Generator, Time Calibration Tester, Standard Micro-resistance etc.

   HAOMAI is China well-known mark recognized and approved by State Administration for Industry & Commerce of People's Republic of China, and enjoys high reputation in domestic and foreign markets.

   HAOMAI now is the key supplier for SGCC(State Grid Corporation of China) and CSG(China Southern Power Grid). Till 2018 HAOMAI products have been sold to 34 different countries.

   HAOMAI always sticks to the faith of "cooperation and sharing", takes the "technology and market" as the direction, "creation and innovation" as the soul, listens to clients carefully, and improves the technology, upgrades the products, optimizes the service and tries all to be the global leader in electrical power test and measurement instruments field.
