• Model NO.：Yg026c

Basic Info.

Model NO. Yg026c

Product Description

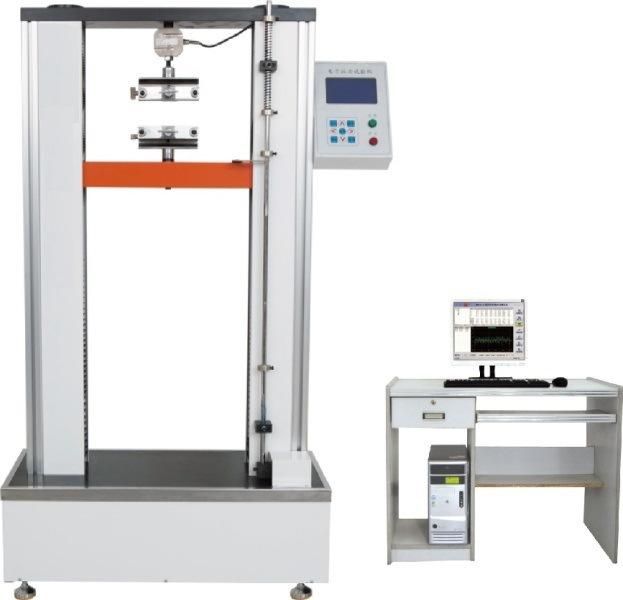

YG026C Electronic Fabric Strength Tester


Application:

To  test  the breaking  strength and  the breaking elongation  for woven fabrics and non-woven fabrics in various materials.



Technical index:

1. Load range: 0-500N, 0-1000N, 0-3000N, 0-5000N,0-10000

   accuracy: ±0.5%

2. Gauge length: 25-250mm

3. Drawing speed: 20-600mm/min

4. Elongation resolution: 0.1mm

5. Max elongation: 900mm

6. External Dimensions: 615x560x1350mm

7. Power source: AC220V

8. Weight:  195Kg



Standards:



ISO13934,GB/T3923.1.2,GB/T3917.2.3, etc.
company info:

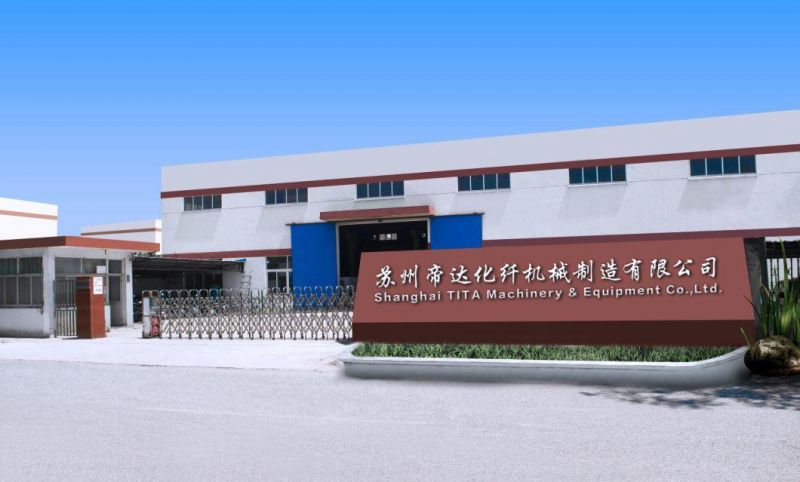

TITA is a professional chemical fiber engineering company focusing on scientific research, technology innovation, chemical fiber yarn machinery manufacturing and contracting, we are specialized in improving the production processes of civil and industrial filaments of polyester, nylon, polypropylene, etc, civil staple, bi-component composite micro yarns in shapes of fragment, sea-island, sheath-core and side-by-side, and spun non-woven, as well as in developing new products and software, equipment design and manufacturing building planning and turn-key projects, etc.

We are committed to providing customers with our best quality machinery and services, and constantly to innovating and improving them to meet the increasing requirements and trends in the future, also we seek worldwide cooperation in hope making more outstanding success in the filed of chemical fiber machinery.

Major business:

1) Engineering design and turn-key project for POY and FDY by PET, PA6, PP, etc.

2) Spinning machines for industrial yarn, bi-component composite yarn and melt spandex yarn

3) Mother yarn splitting, Monofilament machines

4) BCF machine

5) Compact pilot spinning machine

6) Conversion for existing lines, modification for winders and spare parts supply, etc.
