• Model NO.：GD-6307
• Test Time：1200g Sample Only Needs 30 Mins
• The Dimension of The Combustion Chamber：350mm*440mm*330mm
• Size：700mm*800mm*1550mm
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Transport Package：Wooden Case for Gd-6307
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Product nameGd-6307 ASTM D6307 Asphalt Content Tester (burning furnace method) /Bitumen Content TesterMaximum sample weight4000g, recommended sample weight: (1000 ~ 2000) gMaximum temperature of the combustion chamber800 ºC, accuracy: ± 5 ºC, standard operating temperature: 538 ºC.The highest temperature of the post combustion chamberup to 900 ºCCombustion and filtrationWith a post combustion chamber two combustion function and high temperature filtration technology, the test gas emission standards.The balance accuracy 0.1g, the balance scale: 10kg (by the United States imported special balance)Asphalt content test accuracy0.10%The test time is fast1200g test sample only about 30 minutesThe chamber dimensions350 mm × 440mm × 330mm (length × width × height)Dimensions700 mm × 800mm × 1550mm (length × width × height)Power supplyAC380V ± 10V, 50Hz, current less than 40A (three-phase four-wire system, with zero line). 220V ± 10V, current less than 5A

Products Packing:

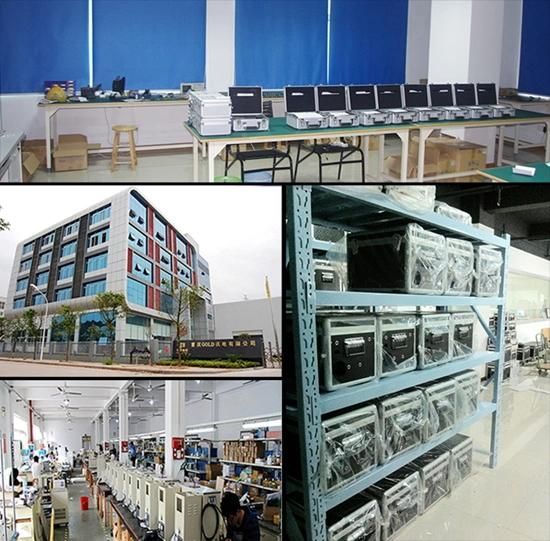

Company  Information:



Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
