ASTM D4294 Gd-17040 X-ray Fluorescence Sulfur Content Tester / Oil Automatic Sulfur Analyzer
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Product Name：Gd-17040 X-ray Fluorescence Sulfur Content Tester
- Standard：GB,T17040, ASTM D4294
- Test Sample：Petroleum Oil with Sulfur Content Of20ppm to 100%
- Test Method：X-ray Fluorescence(Xrf) Method
- Dimension：468*368*136mm
- Delivery Time：10 Working Days(If Urgent, We Can Push)
Base Info
- Model NO.：GD-17040
- Working Temperature：5~40 Celsius
- Relative Humidity：Less Than 85%
- Power Supply：AC220V±20V, 50Hz
- Usage：Used to Determine Mass% of Total Sulfur in Oil
- Transport Package：Wooden Case for Gd-17040
- Trademark：GOLD
- Origin：Chongqing, China
- Production Capacity：100 Sets, Month
Description
Related Products:
| Parameter | GD-380B | GD-387 | GD-17040 | GD-0689 |
| Standards | GB/T 380, ASTM D1266 | GB/T 387, ASTM D1551 | GB/T 17040, GB/T11140, ASTM D4294 | ISO 20846,ASTM D5453,ASTM D4629,ASTM D5762, ASTM D6069 |
| Test sample | Light oils, such as gasoline, kerosene | Dark oils which sulfur content >0.1% | Petroleum oil with sulfur content of 20ppm to 100% | Petroleum oil with sulfur content of 5ppm to 100% |
| Test method | Lamp method | Quartz tube method | X-ray fluorescence (XRF)method | Ultraviolet fluorescence method |
| Dimension | 3800*320*600mm | 530*400*670mm | 468*368*136mm | Host:305*460*440mm Temp controller:550*460*440mm |
| Working temperature | 5~40ºC | 5~40ºC | 5~40ºC | 5~40ºC |
| Relative humidity | ≤85%(30ºC) | ≤85%(30ºC) | ≤85%(30ºC) | ≤85%(30ºC) |
| Power suply | AC220V ±20V, 50Hz | AC220V ±20V, 50Hz | AC220V ±20V, 50Hz | AC220V ±20V, 50Hz |

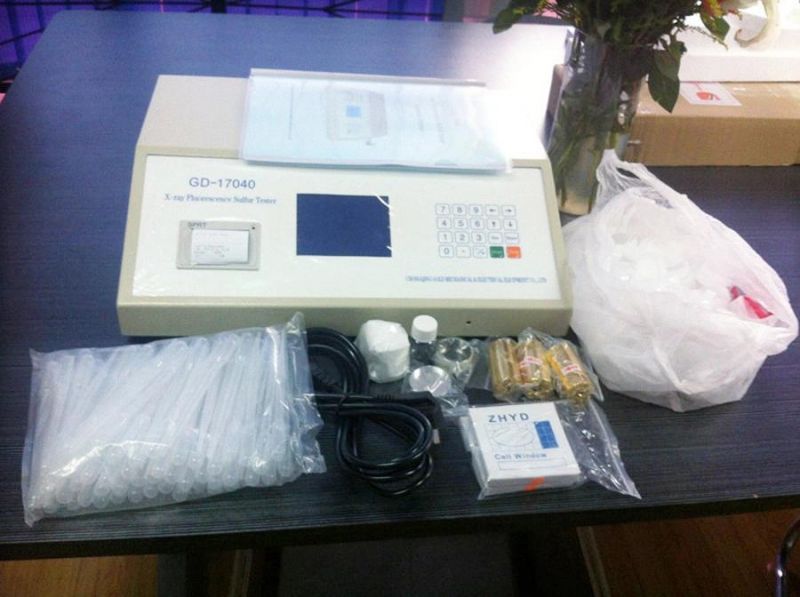

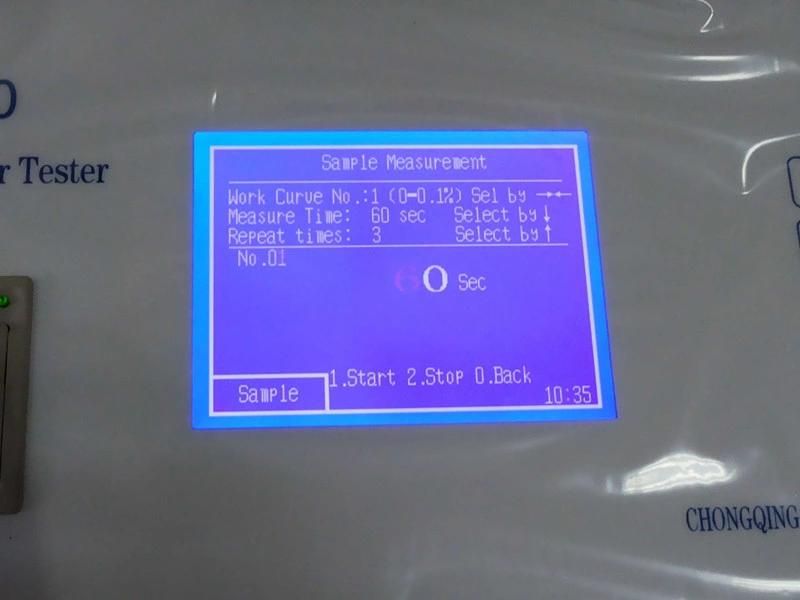

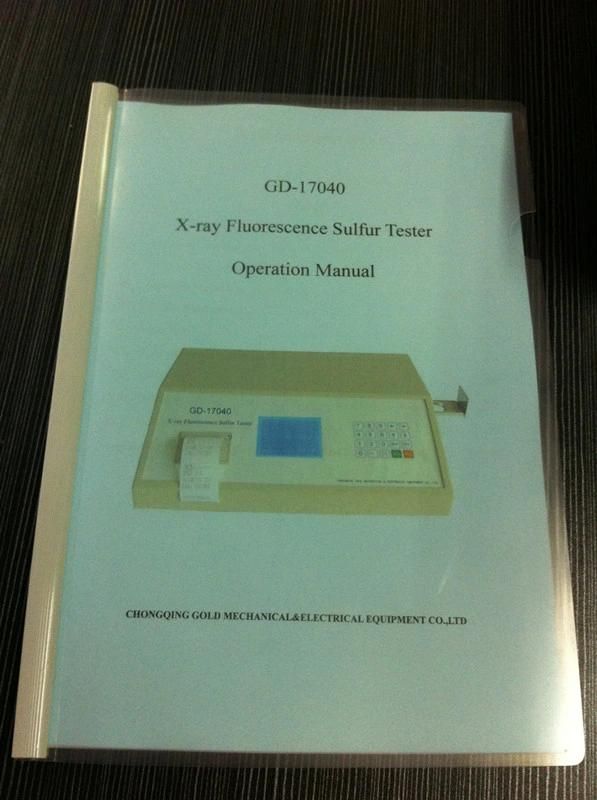

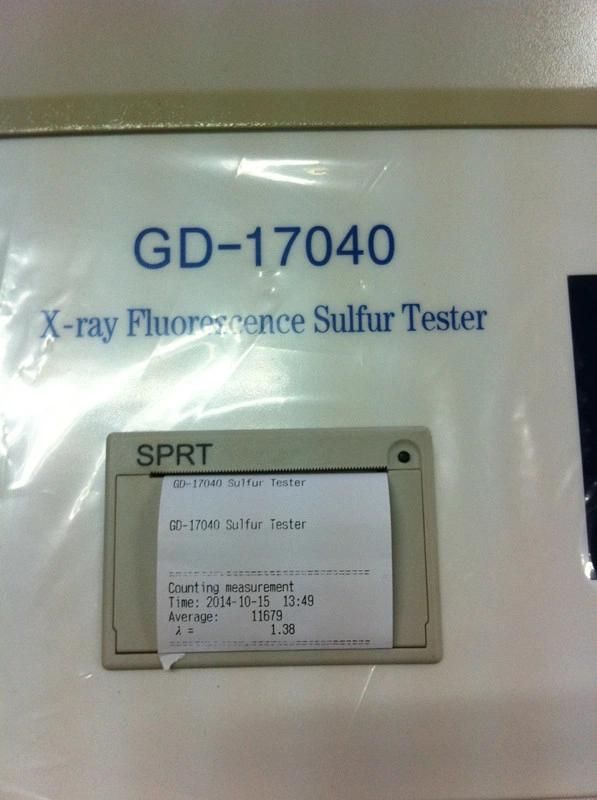

Detail Images:
