• Model NO.：GD-0193
• Dimension：550*800*1000mm
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Product Name：Lubricating Oils Oxidation Stability Test Apparat
• Usage：Lubricating Oils Oxidation Stability Test Apparat
• Transport Package：Wooden Case for Gd-0193
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-0193 Dimension 550*800*1000mm Delivery Time 10 Working Days(If Urgent, We Can Push) Product Name Lubricating Oils Oxidation Stability Test Apparat Usage Lubricating Oils Oxidation Stability Test Apparat Transport Package Wooden Case for Gd-0193 Trademark GOLD Origin Chongqing, China Production Capacity 100 Sets/ Month

Product Description

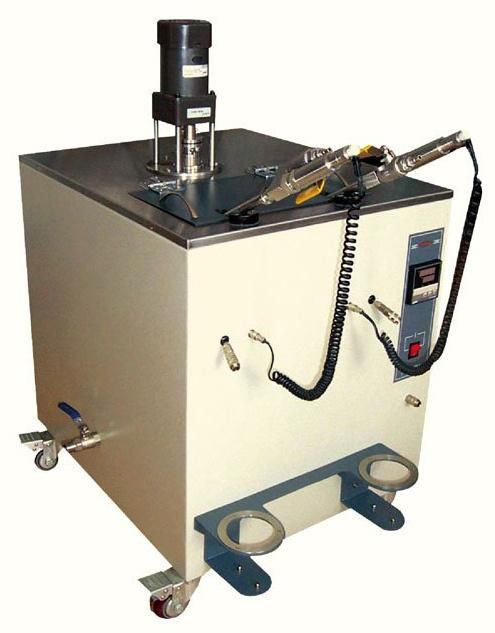

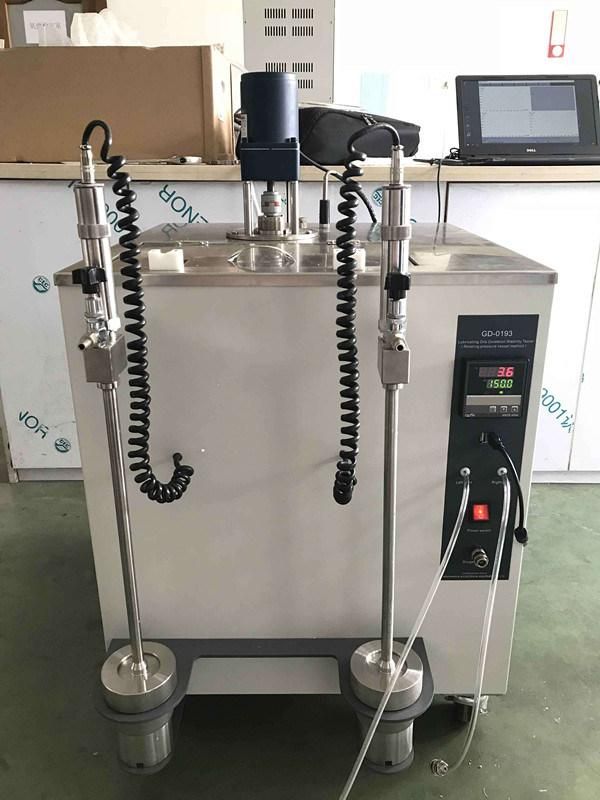

GD-0193 ASTM D2272 Automatic Lubricating Oils Oxidation Stability Test Apparatus by Oxygen Bomb Method



Introduction:
ASTM D2272 Automatic Lubricating Oils Oxidation Stability Test Apparatus is designed and made as per
ASTM D2272 Standard test Method for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel.

ASTM D2272 Automatic Lubricating Oils Oxidation Stability Test Apparatus is used to determine the
oxidation stability of steam turbine with the same composition (oil base oil and additive). Also can be used to
determine new mineral insulating oil containing 2, 6-BHT.


Features:
1. ASTM D2272 Automatic Lubricating Oils Oxidation Stability Test Apparatus is fully designed as per
standard SH/T0193. It can automatically determine pressure, record data, calculate oxidation time and finish the
determination.

2. The test procedures can be done automatically. No need for human interference. The test precision is high.

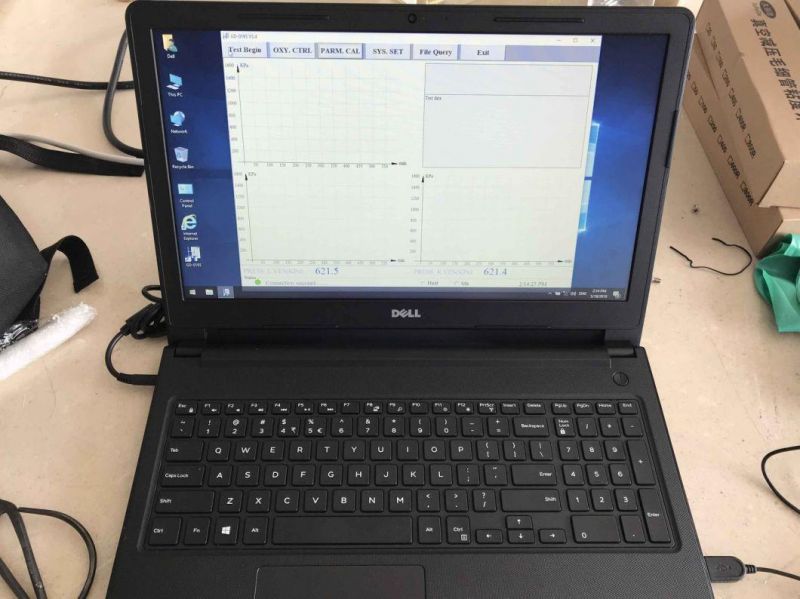

3. The test curves and results will be shown on the screen and can be restored and printed if needed.


Specifications:

Product name	GD-0193 ASTM D2272 Automatic Lubricating Oils Oxidation Stability Test Apparatus by Totary Oxygen Bomb Method
Power supply	AC220V±10%
Heating tube power	2500W
Range for pressure sensor	(0~1.6)MPa, accuracy: ±2‰
Temperature control range for oil bath	Room temperature~200.0ºC, continuously adjustable.150.0ºC in common use
Temperature control accuracy	±0.1ºC
Test sample	Test sample:Two-bomb design can do two samples at one time. Convenient to do parallel test
Rotation speed	(100±5) r/min
Included angle between oxygen bomb and water level	30°
Volume of oil bath	30L
Net weight	550*800*1000mm
550mm*800mm*1000mm	About 45Kg



Related Products:

Parameter	GD-0175	GD-0193	GD-8018D
Product name	Distillate fuel oils oxidation stability tester(Accelerated method)	Automatic lubricating oils oxidation stability tester(Rotary oxygen bomb method)	Gasoline Oxidation stability tester(Induction period method)
Standards	SH/T,ASTM D2274	SH/T0193, ASTM D2272	GB/T8018-87, ASTM D525
Test sample	distillate fuel oil	steam turbine oil, new mineral instulating oil containing 2,6-BHT	Gasoline
Test method	Accelerated method	Rotating pressure vessel method	Induction period method
Sample quantity	6	2	2
Features	Metal bath, no need to add water during determination; Temperature raising rate is adjustable	Equipped with laptop; automatically determine pressure , record data, calculate and print	Equipped with laptop; Fully automatic, metal bath, no need to add water
Dimension	Host: 480*430*1342mm; Camera obscure:314*314*827mm	550*800*1000mm	600*340*730mm
