• Model NO.：HD-F766
• Weight：100-500Kg
• Power Source：AC220V
• Speed：20~300mm,Min
• Stroke：500mm
• Capacity：200kg
• Load Plate Position Adjustment：300mm
• Max Mattress Size：2200× 2200× 40mm
• Display Accuracy：0.001kgf
• Deformation Precision：0.001mm
• Impact Height：0-300mm Adjustable
• Counter Range：0-99999 Times
• Machine Size：3000* 2800*2500mm
• Transport Package：Strong Case
• Specification：ISO
• Trademark：Haida
• Origin：Dongguan
• HS Code：9024
• Production Capacity：30 Sets Per Month

Display Accuracy
0.001kgf
Deformation precision
0.001mm
Impact height
0-300mm adjustable
Counter range
0-99999 times
Machine size: ( L x W x H)
3000x 2800x 2500mm
Weight
Approx. 600Kg
Control method
PLC
Display interface
LCD Touch screen, can display test graph, with USB port to output test results.
Test status
200, 6000, 12500, 25000, 50000, 75000, 100000
adjust the height loss automatically.
Design criteria
ASTM F 1566
Power
Single phase, AC 220V, 50-60Hz.
Other parameters
1. Adjust the pushrod stroke on mattress , maximum force = 1025N, minimum force = 22N
2. Pusher travel speed adjustable, about 100 weeks times per minute
3. Imposed the pressure on mattress by a transducer, pressure range to 300KG(The table parameters for the company Standard Model parameters, we support customer customization parameters)

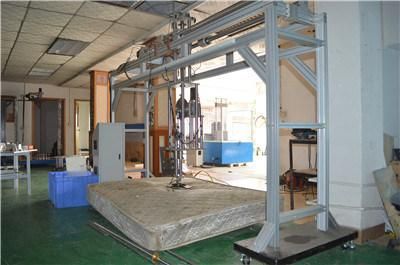

Product images:




The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.



Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
