• Model NO.：WDW-5
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Computer
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Certificate：ISO CE
• Transport Package：Wooden Case
• Specification：425*400*1315
• Trademark：HST
• Origin：Jinan
• HS Code：9024101000

Basic Info.

Model NO. WDW-5 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Computer Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Certificate ISO CE Transport Package Wooden Case Specification 425*400*1315 Trademark HST Origin Jinan HS Code 9024101000

Product Description

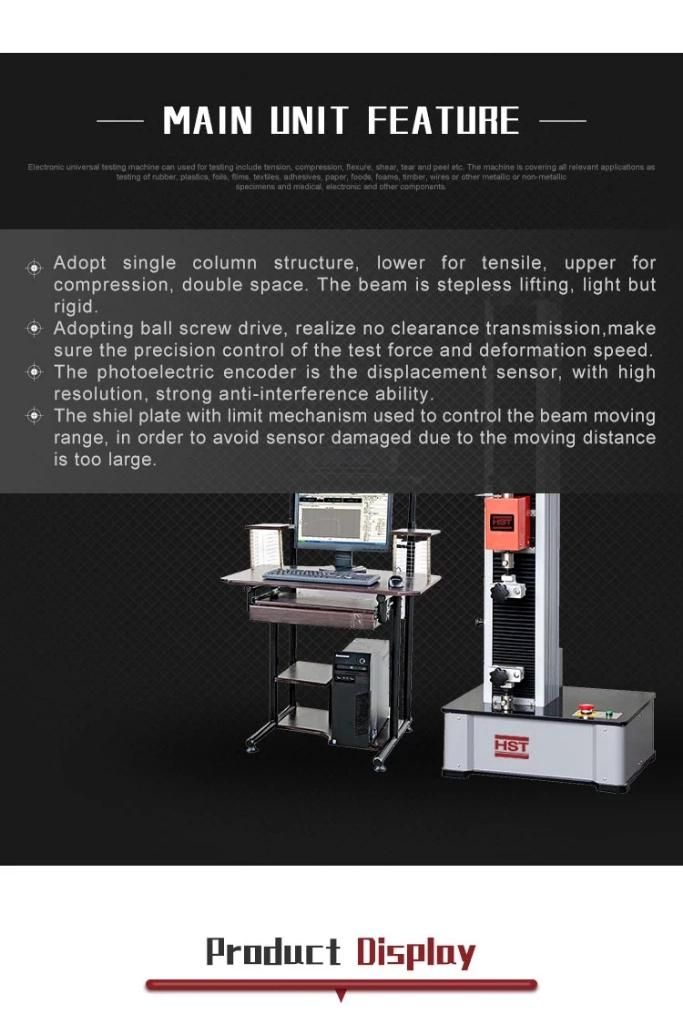

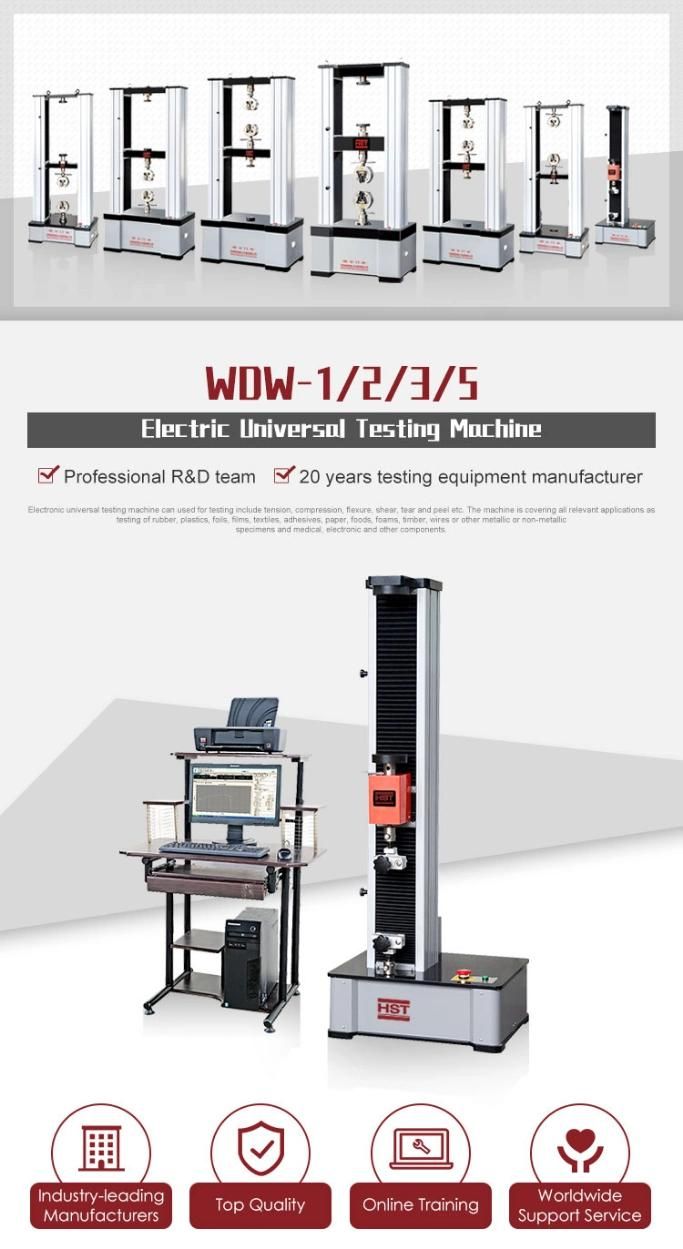

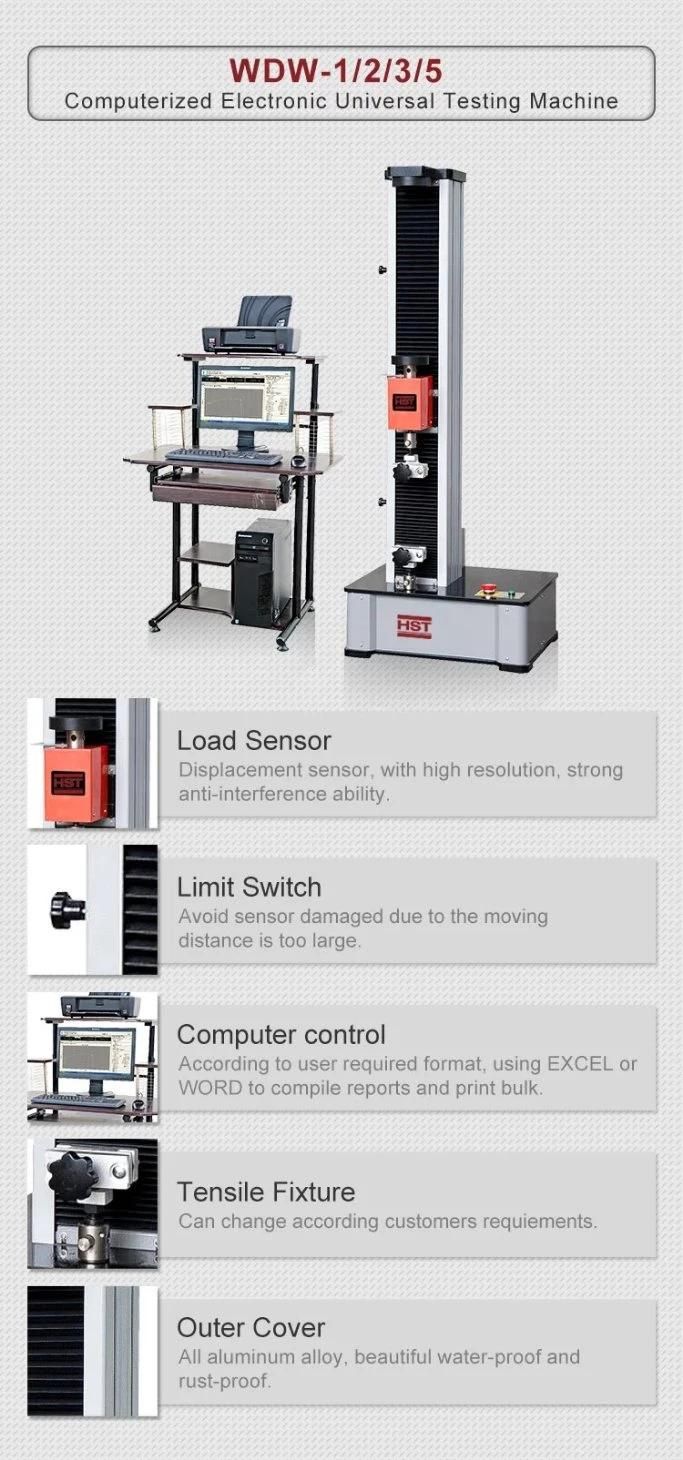

5KN Single Column Computer Control Electronic Universal Testing Machine



Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
 Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.

Parameters

Model	WDW-01,02,03,05,1,2,3,5
Structure	Single column double spaces
Max. Load(kN)	0.1, 0.2, 0.3, 0.5, 1, 2, 3 ,5
Material	All aluminum alloy surface spray painting shell
Load accuracy	ISO 7500 Class 1/ Class 0.5
Load range	2%~100%F·S/ 0.2%~100%F·S
Load resolution	1/ 30000
Resolution of displacement	0.01mm
Test speed(mm/min)	0.05-500 stepless arbitrary setting
Speed accuracy	within ±1% set speed
Power supply	AC220V±10%,50Hz/60Hz(can be customized)
