Stqm-1 Laboratory Cement Ball Mill
Shanghai Civil & Road Instrument Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Laboratory Cement Ball Mill
- Maxcapacity：No
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：STQM-1
- Loading Method：No
- Display：Digital
- Control：No
- Weight：100kgs
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Stqm-1 Laboratory Cement Ball Mill
- Application：Used for Mixing and Grinding Purpose in All Kinds
- Drum Size：Dia 500X500mm
- Rotation：48rpm
- Load Capacity of Abrasive：100kg
- Feeding Capacity：5kg
- Weight of Abrasive (Steel Ball and Unequ：10kgs
- Power of Motor：1.5kw
- Voltage：220V
- Frequency：50Hz
- Transport Package：Wooden Case
- Specification：1CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STQM-1 Loading Method No Display Digital Control No Weight 100kgs Power Source AC220V Oil Cylinder Position No Product Name Stqm-1 Laboratory Cement Ball Mill Application Used for Mixing and Grinding Purpose in All Kinds Drum Size Dia 500X500mm Rotation 48rpm Load Capacity of Abrasive 100kg Feeding Capacity 5kg Weight of Abrasive (Steel Ball and Unequ 10kgs Power of Motor 1.5kw Voltage 220V Frequency 50Hz Transport Package Wooden Case Specification 1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

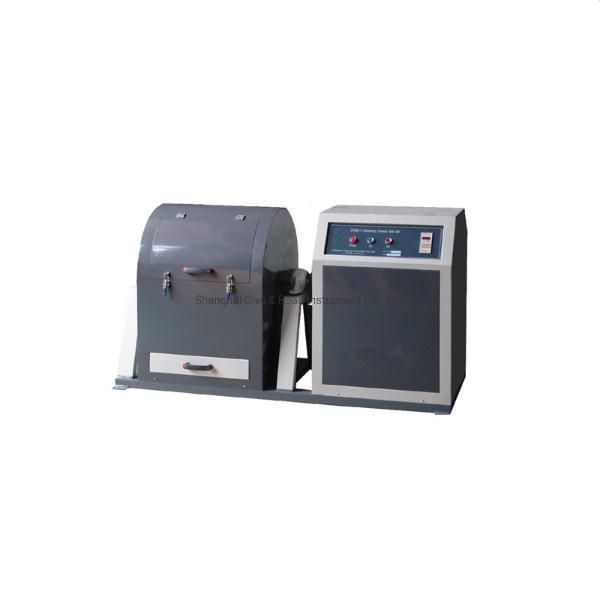

STQM-1 Laboratory Cement Ball Mill

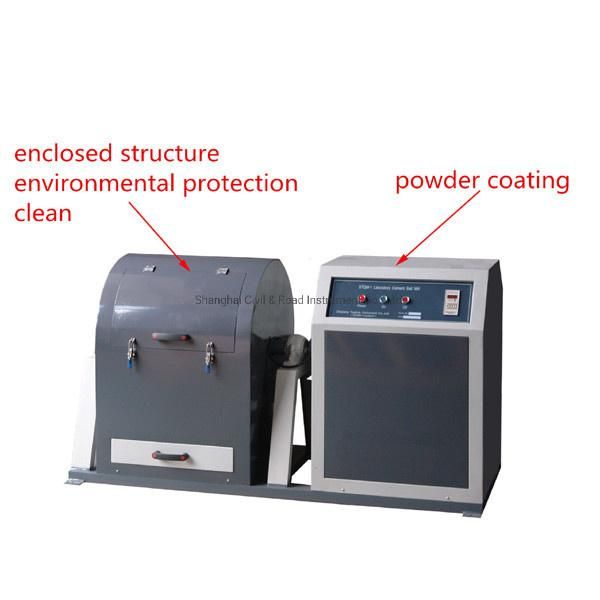

Applications:Laboratory Ball Mill is used for mixing and grinding purpose in all kinds ofresearch laboratories. 500x500 Soundproof Digital Cement Test Small Mill is 10mm thick double layer,small noise digital display type. Determination of cement clinker marking and chemical analysis of clinker by cement inspection room, a unified test mill, the machine can also be used to grind other materials. It has the advantages of compact structure, convenient operation, simple maintenance, reliable performance, good dust and sound insulation effect, and the use of timer to control automatic parking.
Specification:
| Drum size | φ500×500mm |
| Rotation | 48RPM |
| Load capacity of abrasive | 100kg |
| Feeding capacity | 5kg |
| Weight of abrasive (Steel ball and unequal steel) | 10kgs |
| Grinding Body Loading Capacity | 100 KG |
| Particle Size Of Into The Grinding Material | ≤7 mm |
| Powder Time | ~30 min |
| Power of motor | 1.5kW |
| Voltage | 220V |
| Frequency | 50HZ |
