• Model NO.：HD-J201
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Usage：Baby Car Braking Tester
• Design Criteria：En 1888
• Surface of Testing Table：Sandpaper
• Mode of Angle Adjustment：Automatic
• Angle Display：Digital Display
• Angle Accuracy：1
• Power：AC220V, 50Hz
• Surface Materials：Glass Plate (En12790$6.13), and Rubber Matt (En127
• Model：HD-J201
• Angle Adjusted Method：Electrical Motor ( From 0 up to 20)
• Transport Package：Strong Plywood Case
• Specification：EN 1888
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-J201 Control Computer Control Weight 500-1000Kg Power Source AC220V Usage Baby Car Braking Tester Design Criteria En 1888 Surface of Testing Table Sandpaper Mode of Angle Adjustment Automatic Angle Display Digital Display Angle Accuracy 1 Power AC220V/ 50Hz Surface Materials Glass Plate (En12790$6.13), and Rubber Matt (En127 Model HD-J201 Angle Adjusted Method Electrical Motor ( From 0 up to 20) Transport Package Strong Plywood Case Specification EN 1888 Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

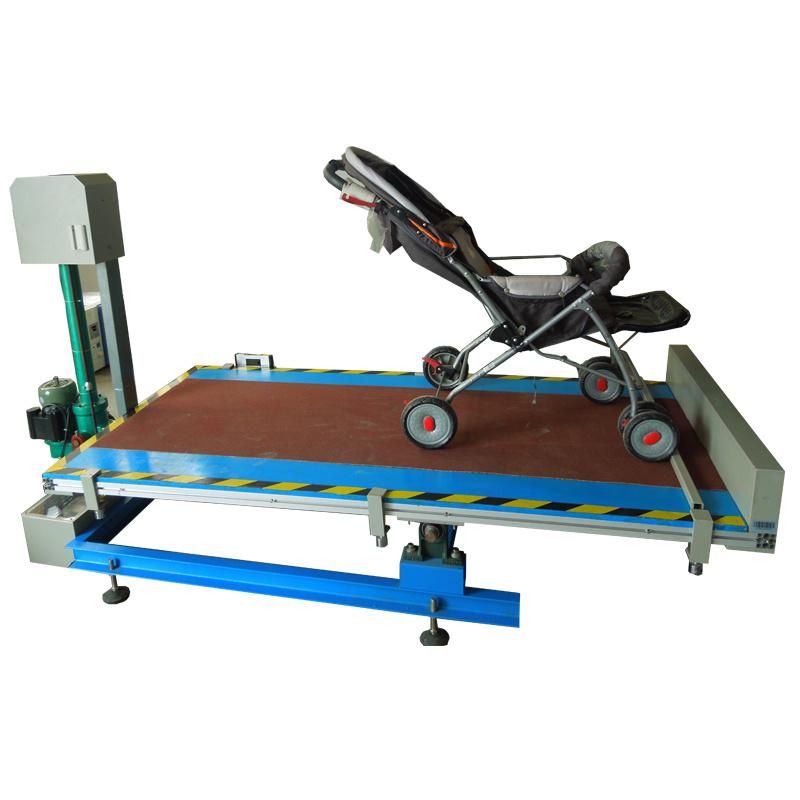

                Electronic Baby Carriage Stability Road Performance Test Device

1. Test method:

the Stroller is placed on the test plane of the tilt angle of 12 °, do not use the parking device, first for the front, then rear-facing, then the vehicle lateral placed on an inclined plane, for each test, giving waywheels close to the bevel on the lower position of block. Rotatable wheels should rotate to the most dangerous position.



1. Testing purposes:

the stability of the simulation tests to determine the stability of the stroller Taiwan (car shall not tip over when tested, a subsidiary of any basket or seat parts shall be isolated and the frame.)

3,      The instrument requirements:
tilt 12 ° test plane, covering 60 of the sandpaper; wagon axle height, the rectangular block.
