• Model NO.：HD-F750-1
• Weight：0-100Kg
• Power Source：AC220V
• Warranty Period：1 Year
• Technology：Professional
• Max Capacity：100kg
• Plane Plate：Holes Diameter 6mm, Space 20mm
• Speed：(70+_ 5) Times Per Minute.(Adjustable)
• Counter：6 Digits Cycle Counter for Test Cycle Setting
• Height Adjustable：After Finish to Test Specified Times, The Below
• Dimension：760*780*1350mm
• Power：AC220V+_10%, 50,60Hz, Single Phase
• Model：HD-F750-1
• Transport Package：Strong Wooden Case
• Specification：CE, ISO, SGS
• Trademark：HaiDa
• Origin：Guangdong, China
• Production Capacity：15 Sets,Month

Basic Info.

Model NO. HD-F750-1 Weight 0-100Kg Power Source AC220V Warranty Period 1 Year Technology Professional Max Capacity 100kg Plane Plate Holes Diameter 6mm, Space 20mm Speed (70+_ 5) Times Per Minute.(Adjustable) Counter 6 Digits Cycle Counter for Test Cycle Setting Height Adjustable After Finish to Test Specified Times, The Below Dimension 760*780*1350mm Power AC220V+_10%, 50/60Hz, Single Phase Model HD-F750-1 Transport Package Strong Wooden Case Specification CE, ISO, SGS Trademark HaiDa Origin Guangdong, China Production Capacity 15 Sets/Month

Product Description

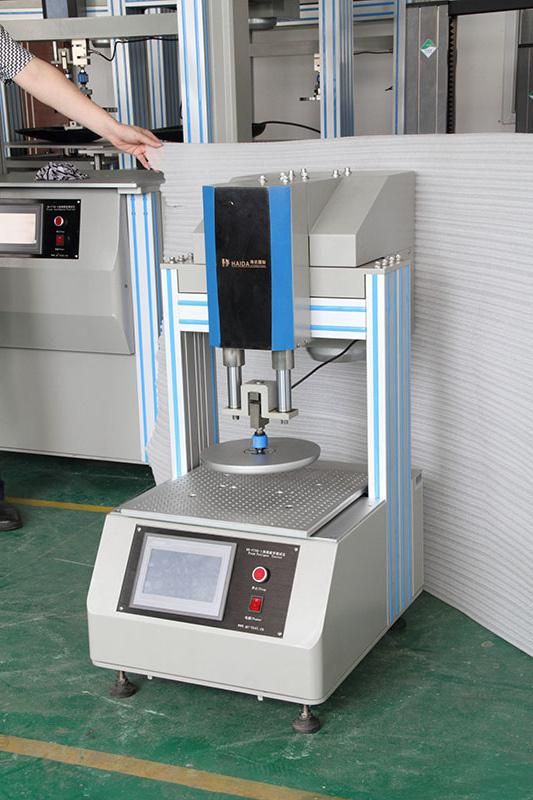

                                          ASTM D3475 Foam Dynamic Fatigue Tester

The machine is used to test foam fatigue by repeating indentation of a test piece by an indentor smaller in area than the test piece, the maximum load reached during each cycle being kept

Within specified limits. After finish test, check the determination of indentation hardness characteristics according to 1S0 2439 test standards.



Standard features:
(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Max capacity	100kg
Plane plate	Holes diameter 6mm, space 20mm
Indentor	Having an overall diameter of 250 mm± 1 mm   with a 25 mm± 1 mm radius at its lower edge, provided with a device for   applying a maximum force of 750 N ± 20 N during one loading cycle.
Speed	(70 ± 5) times per minute.(adjustable)
Sample size	Test pieces shall be right parallelepipeds   having sides of length 380 mm± 20 mm and a thickness of 50 mm± 2 mm.
Counter	6 digits cycle counter for test cycle setting
Height adjustable	After finish to test specified times, the   below plate can go up automatically to continue test.
Display	LCD
Dimension	760×780×1350mm
Power	AC220V±10%, 50/60Hz, single phase

The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
