IEC60884 IP2X Jointed Test Finger
Guangdong Yuanyao Test Equipment Co., Ltd.- Type:IP2X Test Probe B Jointed Test Finger
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Static Load
- Display:Digital
Base Info
- Model NO.:IP2X
- Control:Manual Control
- Weight:0-100Kg
- Power Source:N,a
- Oil Cylinder Position:N,a
- Knurled Finger Diameter:12mm
- Knurled Finger Diameter Length:80mm(3sections)
- Baffle Plate Diameter:50mm
- Handle Diameter:10mm
- Handle Length:100mm
- Test Probe:Probe a
- Material:Delrin and Steel
- Test Standard:IEC61032-1997, IEC60529-2001, GB,T4208-2008 and UL
- Usage:Electronic Safety Protection
- Stock:Yes

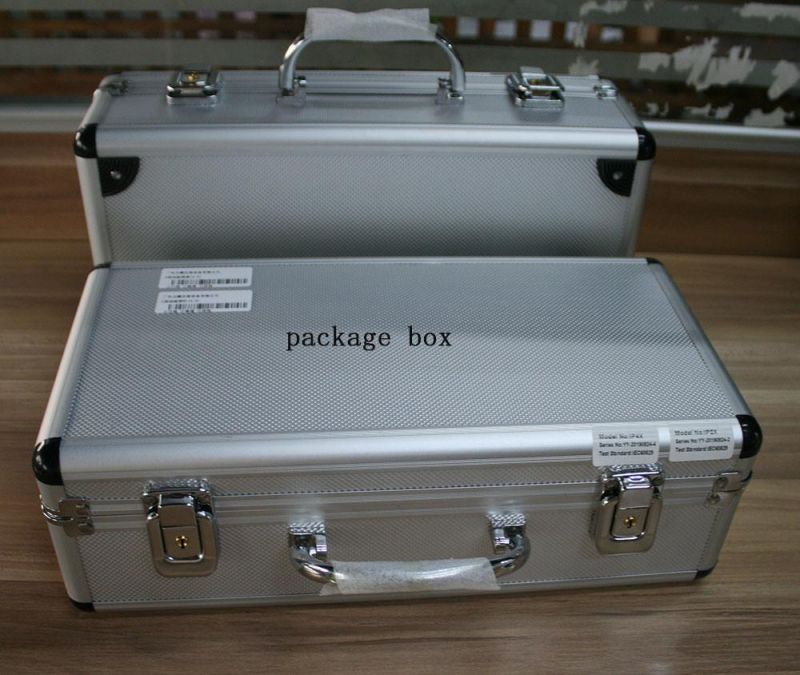

- Transport Package:Box
- Specification:SGS, TUV Certification
- Trademark:Yuanyao
- Origin:China
- HS Code:9032100000
- Production Capacity:5000 PCS,Month
Description
Basic Info.
Model NO. IP2X Control Manual Control Weight 0-100Kg Power Source N/a Oil Cylinder Position N/a Knurled Finger Diameter 12mm Knurled Finger Diameter Length 80mm(3sections) Baffle Plate Diameter 50mm Handle Diameter 10mm Handle Length 100mm Test Probe Probe a Material Delrin and Steel Test Standard IEC61032-1997, IEC60529-2001, GB/T4208-2008 and UL Usage Electronic Safety Protection Stock Yes Transport Package Box Specification SGS, TUV Certification Trademark Yuanyao Origin China HS Code 9032100000 Production Capacity 5000 PCS/MonthProduct Description

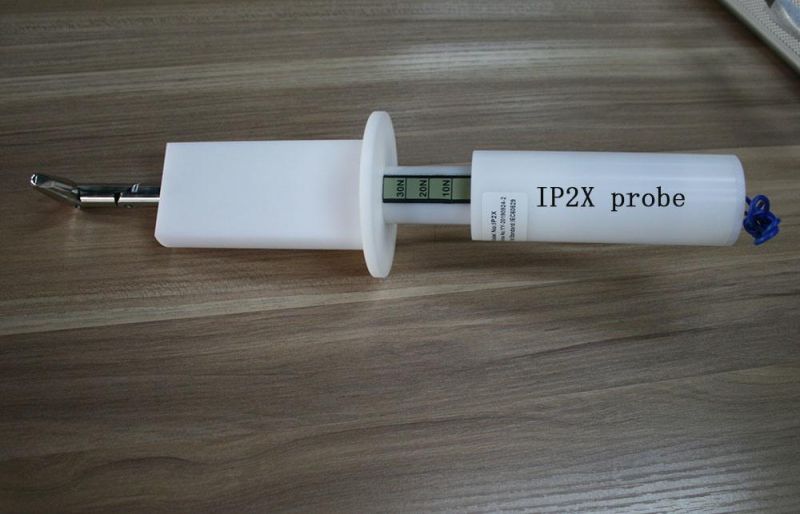

IEC60884 IP2X jointed test fingerIntroduction and application:
IEC60884 IP2X jointed test finger is intended to verify the basic protectiion against access to hazardous parts. It's also used to verify the protection against access with the back of the hand. It is the neccessary tool to proceed protecting electric shock test of household and similar electrical appliances.
Test standard:
GB4706, GB2009,GB4943, GB4208IPX2, GB3883 figure 2, IEC61032 figure 2-test probe
B, IEC950 figure 2A, IEC60884,IEC60335, GB/T16842 test probe B, UL507, IEC 60529 and other
equivalent test standards.
Main data:
1.Probe total length: 305mm
2 Jointed test finger diameter: 12mm
3 Jointed test finger length: 80mm(3 section total length)
4 Handle diameter: 45mm
5 Handle length: 95mm
6 According to GB4706.1-2005, clause 8.1.1, IEC61023:1997 figure 2
Except the IEC60884 IP2X jointed test finger, we also can supply other test equipment, any be interested or needed, please feel free to contact me for more help.
