• Model NO.：IP2X
• Control：Manual Control
• Weight：0-100Kg
• Power Source：N,a
• Oil Cylinder Position：N,a
• Probe Total Length：305mm
• Knurled Finger Diameter：12mm
• Knurled Finger Diameter Length：80mm(3sections)
• Handle Diameter：45mm
• Handle Length：95mm
• Test Probe：Probe B
• Test Standard：GB4706.1-2005, Clause 8.1.1, IEC61023:1997 Figure
• Usage：Prevent Finger Touching or Touch Test Protection
• Stock：Yes

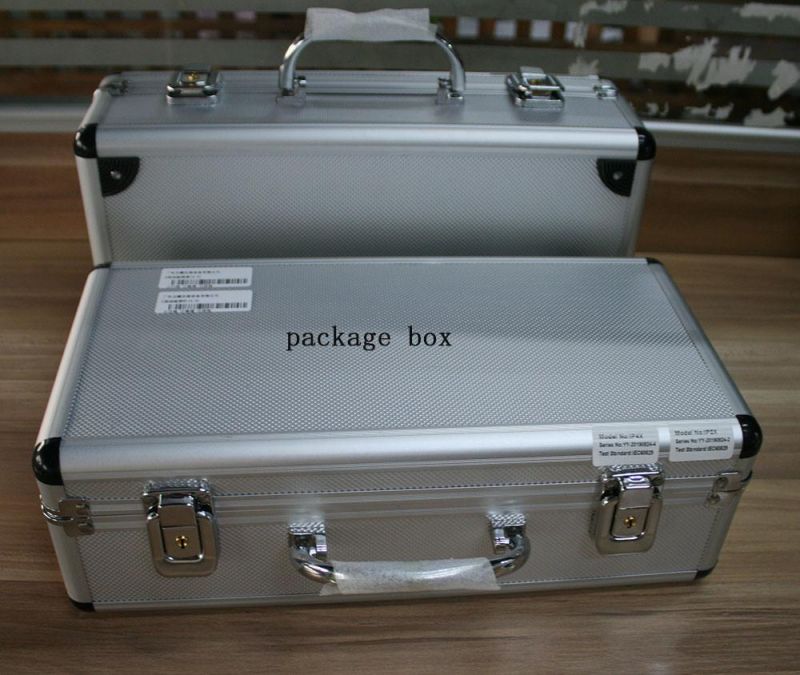

• Package：Box
• Test Force：10n
• Transport Package：Box
• Specification：SGS, TUV Certification
• Trademark：Yuanyao
• Origin：China
• HS Code：9032100000
• Production Capacity：5000 PCS,Month

Basic Info.

Model NO. IP2X Control Manual Control Weight 0-100Kg Power Source N/a Oil Cylinder Position N/a Probe Total Length 305mm Knurled Finger Diameter 12mm Knurled Finger Diameter Length 80mm(3sections) Handle Diameter 45mm Handle Length 95mm Test Probe Probe B Test Standard GB4706.1-2005, Clause 8.1.1, IEC61023:1997 Figure Usage Prevent Finger Touching or Touch Test Protection Stock Yes Package Box Test Force 10n Transport Package Box Specification SGS, TUV Certification Trademark Yuanyao Origin China HS Code 9032100000 Production Capacity 5000 PCS/Month

Product Description

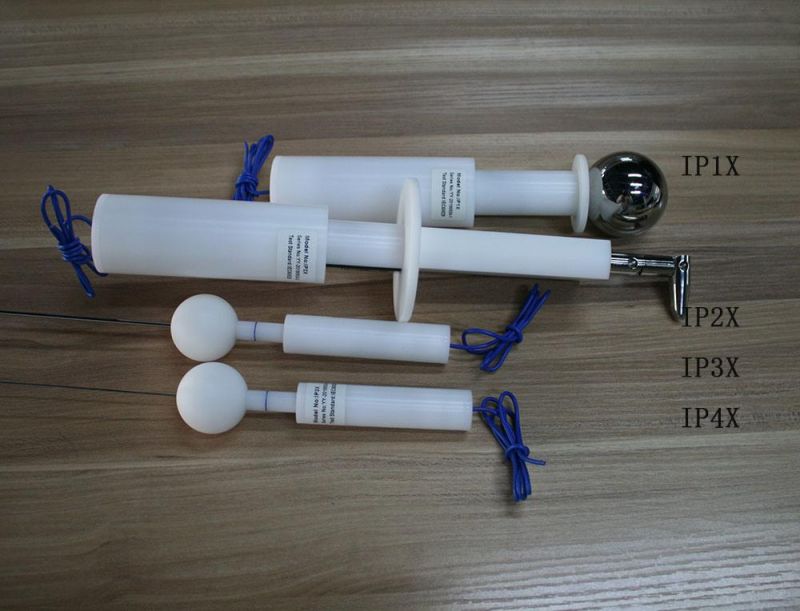

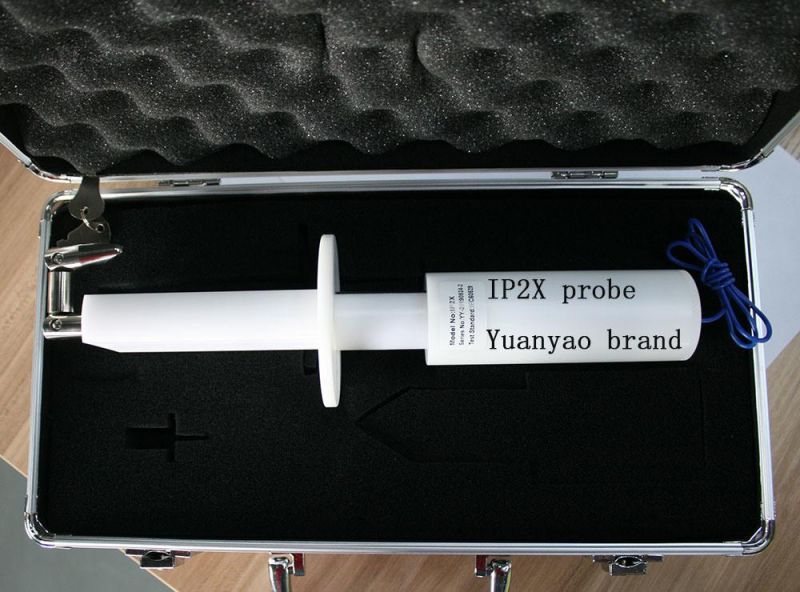

10N test force test probe B IP2X probe

Introduction and application:

10N test force test probe B IP2X probe is intended to verify the basic protectiion against access to hazardous parts. It's also used to verify the protection against access with the back of the hand. It is the neccessary tool to proceed protecting electric shock test of household and similar electrical appliances.

Test standard:
GB4706, GB2009,GB4943, GB4208IPX2, GB3883 figure 2, IEC61032 figure 2-test probe
B, IEC950 figure 2A, IEC60884,IEC60335, GB/T16842 test probe B, UL507, IEC 60529 and other
equivalent test standards.

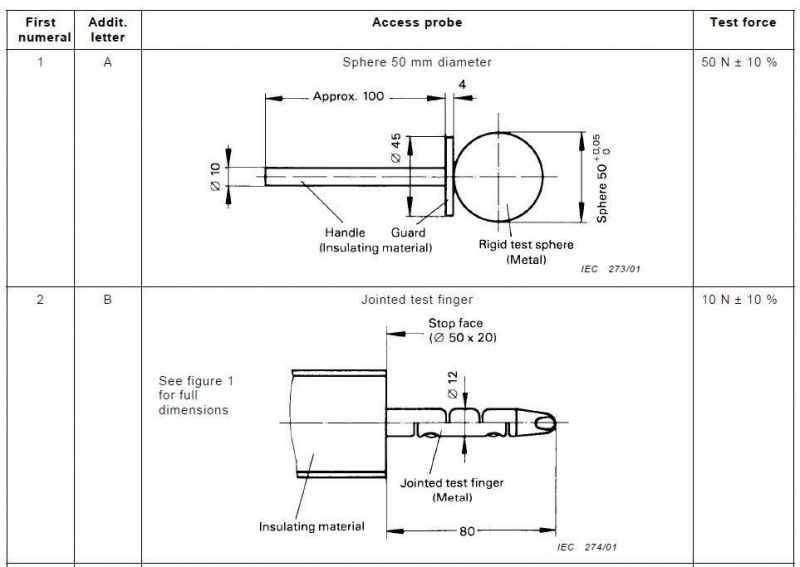

Main data:
1.Probe total length: 305mm
2 Jointed test finger diameter: 12mm
3 Jointed test finger length: 80mm(3 section total length)
4 Handle diameter: 45mm
5 Handle length: 95mm
6 According to GB4706.1-2005, clause 8.1.1, IEC61023:1997 figure 2






Except the 10N test force test probe B IP2X probe, we also can supply other test equipment, any be interested or needed, please feel free to contact me for more help.
