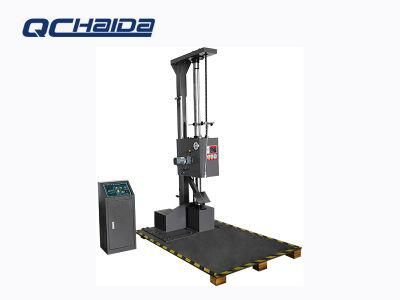

Electronic Packages Cartons Free Falling Drop Testing Test Machine Price
Dongguan Haida Equipment Co., Ltd.- Warranty：One Year
- Type：Drop Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Display：Digital, LCD
Base Info
- Model NO.：HD-A520
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC220V
- Design Criteria：ISO, JIS, Ista
- Drop Height：300 to 1500 mm
- Delivery Time：15 Days After Receive The Payment
- Drop Flat Error：< 1o
- Display Method：Ista-Digital Height Indicator (Optional )
- Specimen Max. Weight：60 Kg(Can Be Customized)
- Drop Panel Area (W×l)：1700×1400 mm
- Control Box Size (L×w×h)：350×350×1100 mm
- Arm Size：290×240×8 mm
- Transport Package：Strong Wooden Case
- Specification：ISO 2248, JIS Z0202-87, GB,T4857.5-92
- Trademark：Haida
- Origin：Guangdong, China
- HS Code：9024109000
- Production Capacity：150 Sets Per Month
Description
Free-dropLbs Kg Lbs Kg Inch mm 0 0 21 10 30 760 21 10 41 19 24 610 41 19 61 28 18 460 61 28 100 45 12 310 100 45 150 68 8 200

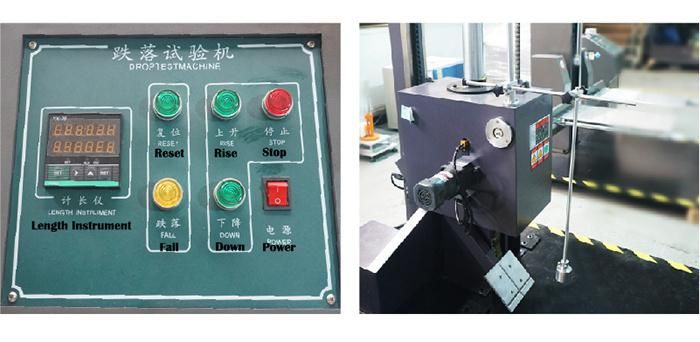

3. Operation of control chamber:
Electronic Drop Tester Exporter
A. It adopts electromagnet control system to control the dropping swing
B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function
C. The testing height can be digital set up.
D.Test standards: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276
4. The Technical parameters:
Electronic Drop Tester Exporte
(The table parameters for the company Standard Model parameters, we support customer customization parameters)
5. Configuration
Electronic Drop Tester Exporter
The introduction of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
3. Operation of control chamber:
Electronic Drop Tester Exporter
A. It adopts electromagnet control system to control the dropping swing
B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function
C. The testing height can be digital set up.
D.Test standards: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276
4. The Technical parameters:
Electronic Drop Tester Exporte
| Dropping height | 300mm-1500mm |
| Display method | digital display |
| Maximum weight of the package | 60kg |
| Maximum size of the package | (L×W×H)1000×700×1000mm |
| Size of the dropping panel | (L×W)1700×1400mm |
| Size of the swing | 290×240×8mm |
| Dropping deviation | ±10mm |
| Deviation of dropping horizon | less than 1° |
| Outside size | (L×W×H)1700×1400×2215mm |
| Chamber size | (L×W×H)350×350×1100mm |
| Weight | 550kg |
| Power | AC380V,50Hz |
| Transmitt approach | Electric transmission |
5. Configuration
Electronic Drop Tester Exporter
|
The introduction of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
