• Model NO.：HD-A502S-1200
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Power：1phase, 220V, 50Hz
• Speed of Compression：10 ± 3 mm,Min
• Operation Mode：PC
• Dimension (L*W*H)：2370*1500*2100mm (Can Be Custom Made)
• Motor：Servo Motor
• Test Space (L*W*H)：1000*1200*1200mm
• Load Resolution：1,250, 000
• Warranty：One Year
• Capacity (Optional)：5 T
• Load Accuracy：≤0.5%
• Transport Package：Strong Wooden Case
• Specification：Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-A502S-1200 Control Computer Control Weight 500-1000Kg Power Source AC220V Power 1phase, 220V/ 50Hz Speed of Compression 10 ± 3 mm/Min Operation Mode PC Dimension (L*W*H) 2370*1500*2100mm (Can Be Custom Made) Motor Servo Motor Test Space (L*W*H) 1000*1200*1200mm Load Resolution 1/250, 000 Warranty One Year Capacity (Optional) 5 T Load Accuracy ≤0.5% Transport Package Strong Wooden Case Specification Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642 Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

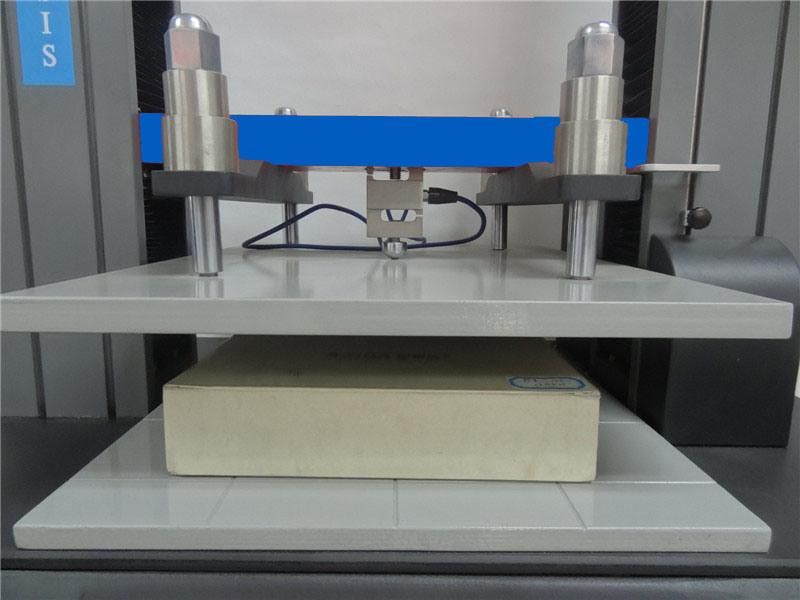

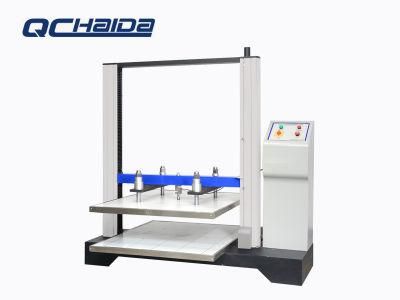

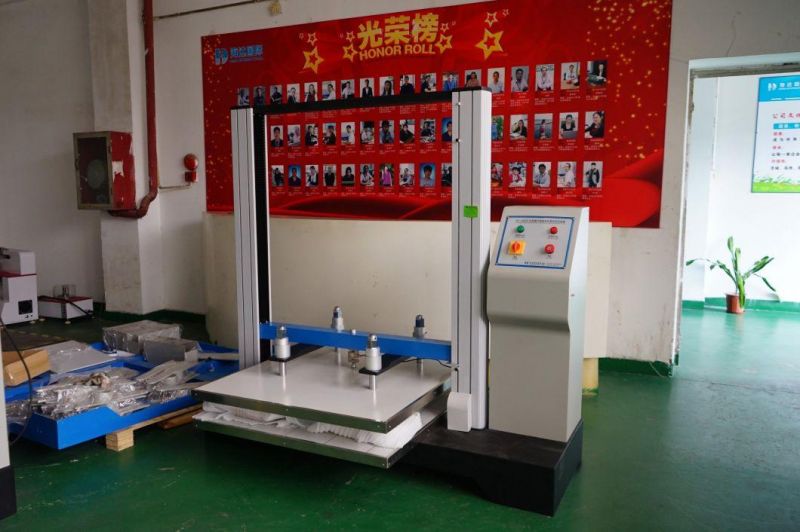

Computer control automatic laboratory Carton Box Compression Strength Testing Machine
 The usage:
Box compression tester is used to test the compression strength, bending strength ,proof pressure, deformation and stowage for flexible packaging cases , corrugated cases, honeycomb crates, and other packaging cases

Feature:
1. Using a single-screen operation; do not need to switch the screen;
2. With three languages in Simplified Chinese, Traditional Chinese and English, the software
    interface can be switched easily;
3. Adopting windows platform, and all the parameter settings can be processed in the dialog box,
    and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the
    main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data
    comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the
    graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10.It can do test of compression, bending, pressure holding & fatigue.
11.With high precision and accuracy and reasonable price, it can test the crush instantaneously
    and stop automatically.

Specifications:

Model	HD-A502S-1200
Unit (switchable)	Kg, Lb, N
Capacity (optional)	5 T
Load Resolution	1/250,000
Load Accuracy	≤0.5%
Test Space (L×W×H)	1000×1200×1200mm
Speed of Compression	10 ± 3 mm/min
Operation Mode	PC
Report Items	Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure	Panasonic Servo Control System (Japan); Ordinary screw rod ;4 sensors; LED display
Dimension (L×W×H)	2370×1500×2100mm (can be custom made)
Power	1ø, 220v/ 50Hz
Weight	Approx. 850kg
Safety Devices	Overload protection, overvoltage protection & limited position protection device
Standard	TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

(The table parameters for the company Standard Model parameters, we support customer customization parameters)





The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.




Packaging & Shipping:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.




After-service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
