• Model NO.：GD-0709A-1
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-0709A-1 HS Code 9031809090 Production Capacity 100sets/Month

Product Description

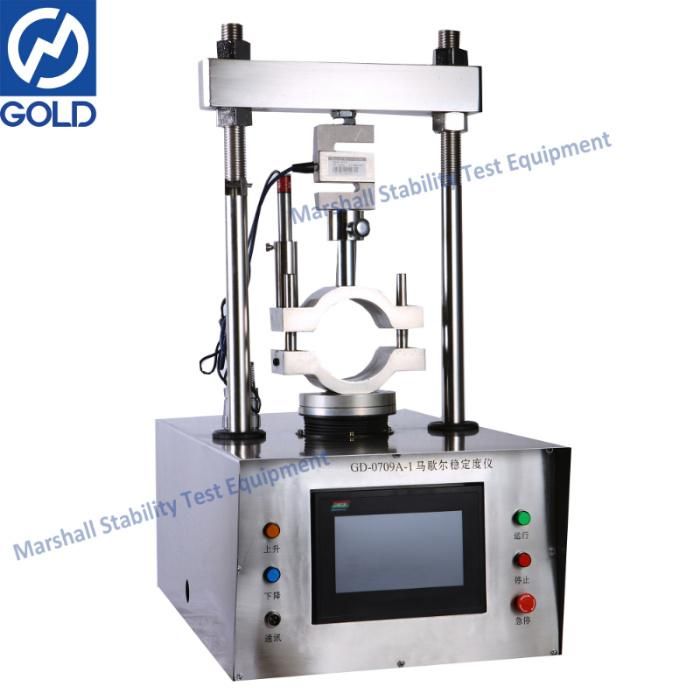

Automatic ASTM D6927 Marshall Stability Test Equipment 50kN for Asphalt Specimens




Introduction:
The Marshall Stability Test Equipment is designed and made as per industrial standard T0709-2011 and ASTM D6927 in TG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.
The Marshall Stability Test Equipment is used to do the Marshall stability test and judge the destroy point for bituminous materials.It can do the proportion design of the bitumen mixture and inspect the construction quality of the bitumen road.



Features:

1. Adopting the advanced technologies including sensor and microcomputer processing,it can automatically measure,calculate and process to kinds of test data,and realize the automatic and intelligent operation during the test procedure.

2. With high precision instrument amplifier and overturn function,imported color large screen PLC controller,directly display the stability value,flow value,curves,results and test time.

3. 100 groups of test data and test time can be stored in the instrument and call out whenever needed. All procedures will be controlled automatically.

4. RS232 communication port. Realize the communication with upper computer. The data process, store, print and display can be controlled by a PC. Also the test procedures can be controlled by a PC.

5. The Marshall Stability Test Equipment use the advanced plating technology,metal yogon,high hardness,abrasion resistance and durable service.

6. This instrument also has functions for manual lifting, lowering and stopping. Convenient to use.



Specifications:

1. Maximum load:    50kN

2. Measuring range:   ≤40kN

3.Overload protection: Automatically protect when load is over 39kN

4. Measuring bias:    ≤±0.1kN

5. Vertical deformation(flow value):  Range 0~20mm, bias ≤±0.05mm

6. Lifting rate for pressure machine:  (50±5)mm/min

7. Communication port:  RS232

8. Motor power:    550W

9. Power supply:   AC220V±10%,50Hz

10.Overall power consumption: Less 800W

11. Ambient temperature:   0ºC~60ºC

12. Dimension:     650mm×380mm×840mm

13. Net weight:    98kg



Optional Accessories:

Constant Water Bath:    GDY-1  Low-temperature Constant Water Bath(recommended)
