• Model NO.：GD-0754
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-0754 HS Code 9031809090 Production Capacity 100sets/Month

Product Description

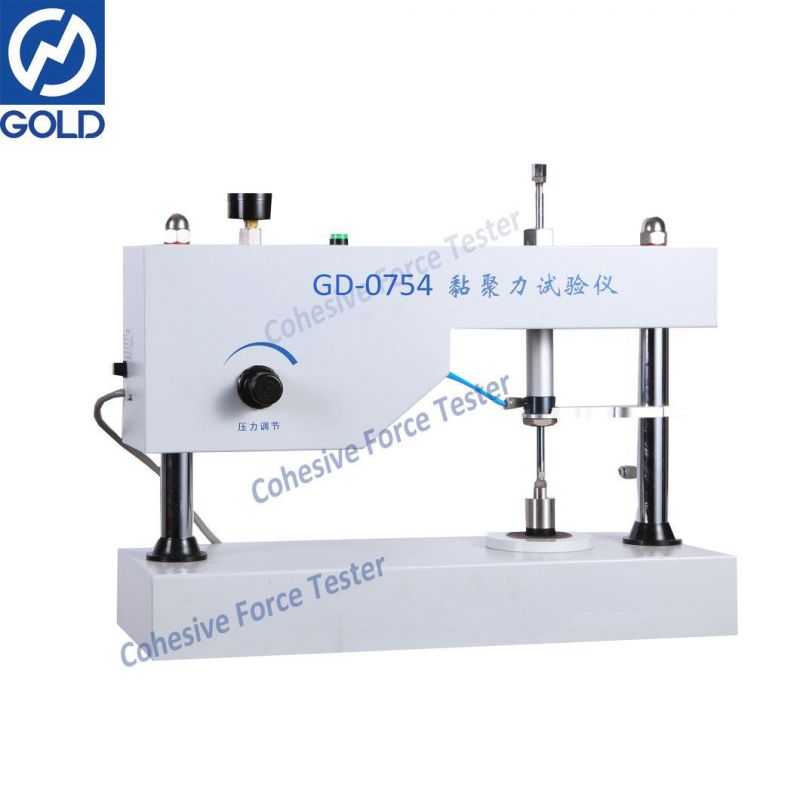

Slurry Seal Test Equipment ASTM D3910 Slurry Seal Cohesive Force Tester




Introduction:

The Slurry Seal Cohesive Force Tester is designed and made as per EN 12274-4;ASTM D3910 and T 0754-2011 "Cohesive Force Test for Slurry Mixtures" in the Traffic Standard of People's Republic of China JTG E20-2011.
The Slurry Seal Cohesive Force Tester is used to confirm the initial setting time and opening time of slurry mixtures .



Features:

1.The Emulsified Asphalt Cohesion Tester adopts desktop structure .Novel design ,reasonable structure and convenient to use .

2.The structure design of the instrument ,the specification size of the test apparatus ,act ,each meets the requirement of T 0754-2011 standard .

3.The Emulsified Asphalt Cohesion Tester is convenient to carry .And it can be used both in lab and on site ,and it widely used in the construction organizations, scientific research institutes to analysis and confirm the emulsified asphalt and aggregate bond degree .



Specifications:

1. The diameter of the rubber pad : Φ28.6mm

2. The thickness of the rubber pad : 6.4mm

3. The hardness of the rubber pad : HRC60

4. The max pressure : 1Mpa

5. Circular test mode : Φ 60mm*6mm;Φ60mm*10mm

6. Torque spanner : (0-5)N•m

7. Power supply : AC 220V+10%;50Hz



Optional Accessories:

1. Balance :weigh 500g, reciprocal sensibility is less than 0.1g

2. Bake oven :with forced draft, the temperature can be controlled in (60+3)ºC

3. Air compressor :AU1511 Compressor (recommend)


This is our Asphalt Testing Laboratory!
