• Model NO.：STCT-1
• Loading Method：No
• Display：Digital
• Control：Manual Control
• Weight：40kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stct-1 Lightweight Dynamic Penetrometer
• Weight of The Hammer：10kg
• Drop：500mm
• Max. Penetration Depth：6000mm
• Penetration Angle：60 Degree
• Max. Diameter of Penetration Cone：40mm
• Transport Package：Wooden Case
• Specification：0.12CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STCT-1 Loading Method No Display Digital Control Manual Control Weight 40kg Power Source AC220V Oil Cylinder Position No Product Name Stct-1 Lightweight Dynamic Penetrometer Weight of The Hammer 10kg Drop 500mm Max. Penetration Depth 6000mm Penetration Angle 60 Degree Max. Diameter of Penetration Cone 40mm Transport Package Wooden Case Specification 0.12CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

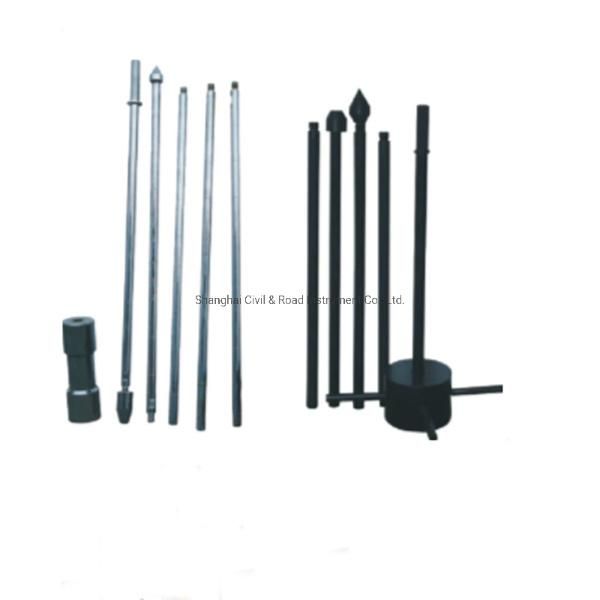

STCT-1 Lightweight Dynamic Penetrometer

Product Description:Dynamic penetration tester is used to determine the bearing capacity of all kinds of soil, find out uniformity coefficient of soil In the horizontal and vertical directions,confirm location of Pile foundation bearing layer and Estimate the bearing capacity of single pile.
Feature:Using hammer energy, infiltrate special Cone probe into soil. We can distinguish engineering properties of soil according to the complexity of infiltration.evaluation index use blow counts when Injection to some depth. It is main way to test Coarse grained soil.

Weight of the hammer	10kg±10g
Drop	500mm
Max. penetration depth	6000mm
Penetration angle	60°
Max. diameter of penetration cone	40mm
sectional area	12.6 cm2
feeler lever diameter	25mm
test index N	injection30cmblow countsN10
Applicable soil type	Shallow fill soil, sand and silt clay
