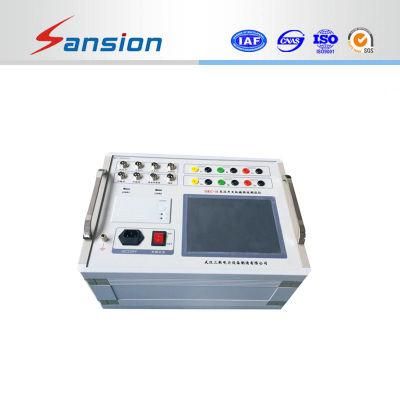

• Model NO.：SXGK
• Loading Method：Dynamic Load
• Display：LCD
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC 110V,220V at Customized
• Oil Cylinder Position：Under
• Time Test：6 Channels (12 Channels for Option)
• Data Storage：100 Groups
• Test Range：0.1ms~999.99ms
• Transport Package：Plywood Case
• Specification：ISO9001 SGS
• Trademark：Sansion
• Origin：Wuhan, China
• HS Code：9030820000
• Production Capacity：100 Units

Time test:6 channels (12 channels is for option)Open(Close)timeOpen(Close)one phase no- synchronismOpen(Close)phase to phase no-synchronismClose(Open)bounce time(bounce numbers)Test range:0.1ms~999.99msAccuracy:1%±(1% read+2digits)Velocity test:Open(Close)velocityPointed periods of time(travel period or angle period)average speedOpen(Close)max.velocity.Range:1mm Sensor:0.01~25.00m/s0.1mm sensor: 0.001~2.50m/s0.5°angle sensor: 1cycle/ 0.5°Accuracy:1mm Sensor  ±(1% reading+1digit)0.1mm sensor ±(2% reading +1digit)0.5°angle sensor ±(1% reading+1digit)Travel test:Active contactor travelContactor travel (open distance)Overshoot travel or bounce travel (amplitude)Sensor:50mm,Resolution:0.1mmSensor:300mm(option),Resolution:1mm360line sensor:360,resolution:0.5 ,accuracy: ±1%Screen:320×240LCDData Storage:100 groupsPrinter:Build-in thermal printerAC source:AC 220V ± 10%;50Hz ± 2%DC source:Output voltage:30~245V continuous adjustment,output current:≤ 15A(short time)Control unit oversize:380×280×140mmWorking Conditions:Temperature:-10ºC~+50ºC  RH:≤90% Warranty: One year quality guarantee after shipment.

Please kindly contact with us for further information.
