• Model NO.：laser marking machine
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Lapping Machine：Table Type
• Polishing Machine：Lapmaster
• Table Lapping Machine：Kemet
• Lightband Polishing：Polishing Machine
• Flatness Tester：Flatness Tester
• Flatness Glass：Optical Glass
• Polishing Seal Faces：Lapping Machine
• Polishing Thrust Bearing：Polishing Cloth
• Portable Polishing Machine：Polishing Plate
• Sealing Rings：Polishing Machine
• Transport Package：Wooden Box
• Specification：15 inch and 18 inch
• Trademark：Trisun
• Origin：China
• HS Code：9031809090
• Production Capacity：5000 Set,Year

Basic Info.

Model NO. laser marking machine Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Lapping Machine Table Type Polishing Machine Lapmaster Table Lapping Machine Kemet Lightband Polishing Polishing Machine Flatness Tester Flatness Tester Flatness Glass Optical Glass Polishing Seal Faces Lapping Machine Polishing Thrust Bearing Polishing Cloth Portable Polishing Machine Polishing Plate Sealing Rings Polishing Machine Transport Package Wooden Box Specification 15 inch and 18 inch Trademark Trisun Origin China HS Code 9031809090 Production Capacity 5000 Set/Year

Product Description

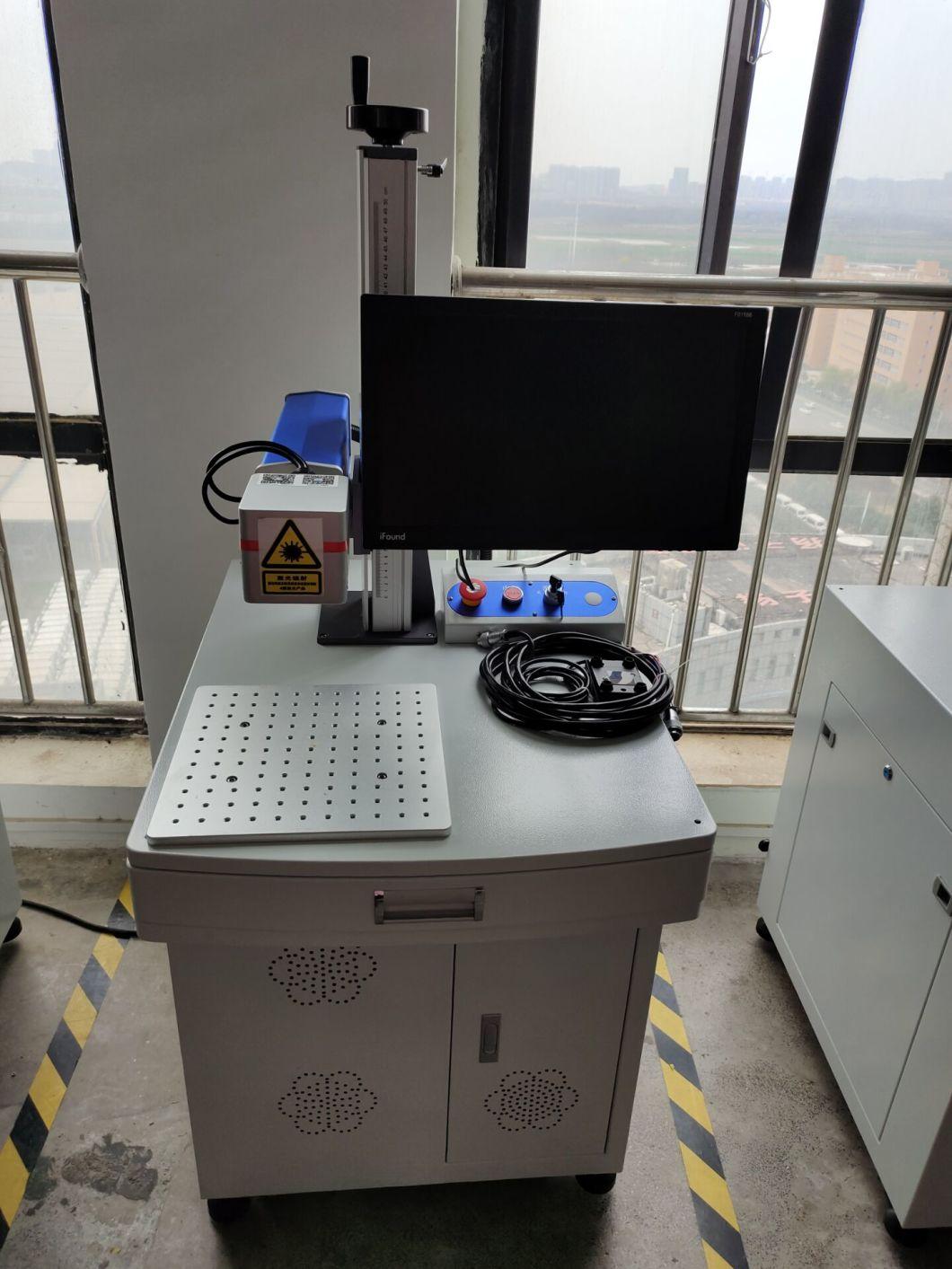

We are one professional manufacturer of mechanical seals and sealing supply system, so we know how to engrave marking on metal parts and some non-metal parts (ceramic and glass are not included).
It can meet flat surface and small drop camber and its marking area is 100mmX100mm.

1. Laser system: Fiber-optic laser and its dedicated power supply (LSF20I, 20W, pulse)
2. Laser marking head and scanning system: field lens:F160; High-speed scanning galvanometer(2pcs) and galvo driver card(1pc) and red light positioning system: LC-22
3. computer control system: computer with C4, 0.4G, 64G and 64 bit and 19 inch LCD display; engraving control software with V2.6.1, control card: LMC1;
4. Air cooling system: Built-in fan;
5. Workbench: Precision lifting table;
6. Dimentions of the whole machine appearance: 600mmX730mmX1415mm(custom dimentions are acceptable.)
7. Smoke purifier: BRX-200W
