Digital Concrete Compression Strength Testing Machine
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Compression Testing Machine
- Maxcapacity：2000kn
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：SYE-2000BS
- Loading Method：Manual Load
- Display：Digital
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Transport Package：Wooden Case
- Specification：BS & EN
- Trademark：C-TECH
- Origin：China
- HS Code：9028000
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. SYE-2000BS Loading Method Manual Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC380V Oil Cylinder Position Under Transport Package Wooden Case Specification BS & EN Trademark C-TECH Origin China HS Code 9028000 Production Capacity 100PCS/MonthProduct Description
Digital Concrete Compression Strength Testing MachineMain features
Meet the requirements of EN 12390-4 ASTM C39, AASHTO T22
Tests 200, 150 and 100 mm concrete cubes and Cylinders up to 320 x 160 mm diameter
Load pacing facility fitted as standard Platen handling machines include BS 6073-1, EN 772-1 specification rectangular platens. Supplied with Windows download software.
Parameters:
| Item | Content |
| Model no. | SYE-2000BS |

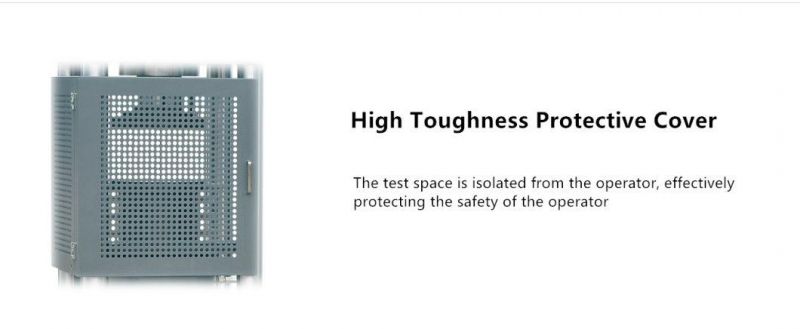

| Features | Manual load, protect cover |
| Accuracy class | Class one |
| Max. load capacity | 2000kN |
| Compression space | 360mm |
| Piston stroke | 120mm |
| Size of upper compression plates | dia. 300mm |
| Size of lower compression plates | dia. 300mm |
| Dimension of load frame | 900x400x1250mm |
| Power | 380V, 50hZ, 1.3kW |
| Weight | 900kg |
