• Model NO.：PN-CST
• Specification：ISO
• Trademark：PNSHAR
• Origin：Hangzhou, Zhejiang
• HS Code：90248000
• Production Capacity：500sets,Year

Basic Info.

Model NO. PN-CST Specification ISO Trademark PNSHAR Origin Hangzhou, Zhejiang HS Code 90248000 Production Capacity 500sets/Year

Product Description

Digital Cardboard Crease Stiffness Tester

Specifications

1. Conform to ISO Standard,
2. 15 degree stiffness test,
3. 90 degree stiffness test,
4. Color touch screen, HM interface.

INTRODUCTION:
PN-CST crease stiffness tester is an electronic tester, with touch screen. It is used to measure 90º crease stiffness and the 15º bending stiffness of paper and paperboard. In modern high-speed packaging machines, it is very important to have the crease in boards correct and uniform. The value of crease stiffness is technically important in the folding of carton blands during their erection and closure.

Whether it is by hand or by mechanical means. The crease recovery can result in forces, which distort the erected carton or cuse stresses to be applied to closures, which reduce their effectiveness.
Crease recovery is determined by the decrease in resistance offered by creased board after it is folded 90º angle at the crease measuring the recovery force after 15º seconds. Board stiffness is determined by bending a 50mm length of board through 1 15 angle. Auto measuring, statistics, test report testing, and data-saving function. Blue LCD touch screen, English system, Micro-printer.

APPLICATIONS:Paper, paperboard.

STANDARDS: ISO5628, ISO2493

PARAMETERS:
1. Power supply: AC(100-240V), 2A, 50/60Hz
2. Display error: +/- 1%
3. Display value mobility: ≤1%
4. Measuring range: (20-10000)Mn ( Bending force moment is (1-500) mN.m)
5. Resolution: 0.1 mN
6. Bending length: 50mm(15º); 10mm(90º); (+/-0.5mm)
7. Bending angle: adjustable within (1~20)°
8. Display: 4.3" color LCD
9. Printer: Thermal micro printer
10. Output: RS232
11. dimension: L × W × H =250×170×210mm
12. Weight: 5kg

Company Introduction:
PNSHAR, as one SGS-Audited company & ISO-Certified company, has been engaged in the R&D and production of lab equipment for paper & packaging industries since 1985.Our products has achieved CE certificate.
As the leading manufacturer from China, we are enjoying the Chinese market, competing the European suppliers, American suppliers and Taiwan Suppliers.
Based on good quality and reliable performance, our lab equipments also have been exported to more than 50 countries, such as follows:
1). Europe: Italy, Germany, Hungry, Macedonia, Latvia, Czech, Switzerland, Russia, Poland, Turkey etc;
2). Asia & Oceania: Japan, Indonesia, Singapore, Australia, Hongkong, South Korea, Iran, Thailand, Viet Nam, India, Bangladesh, Jordan, Saudi Arab, Bahrain, Pakistan, Malaysia, Philippines, Myanmar, Taiwan, Oman, Uzbekistan, etc;
3). America:USA, Mexico, Argentina, Brazil, Peru, Costa Rica, Guyana, Uruguay, etc;
4). Africa: Kenya, Egypt, South Africa, Cote d'Ivoire, Cameroon, etc.

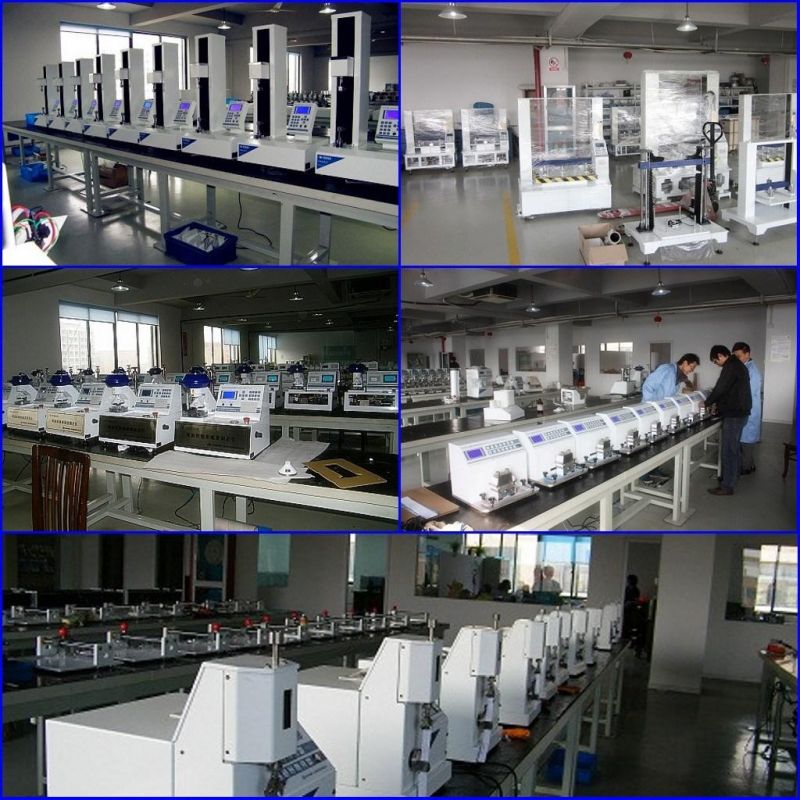

Our workshop

Our certificate:
