• Model NO.：GDRZ-902
• Specification：300*400*300mm
• Trademark：Gold
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：300PCS,Month

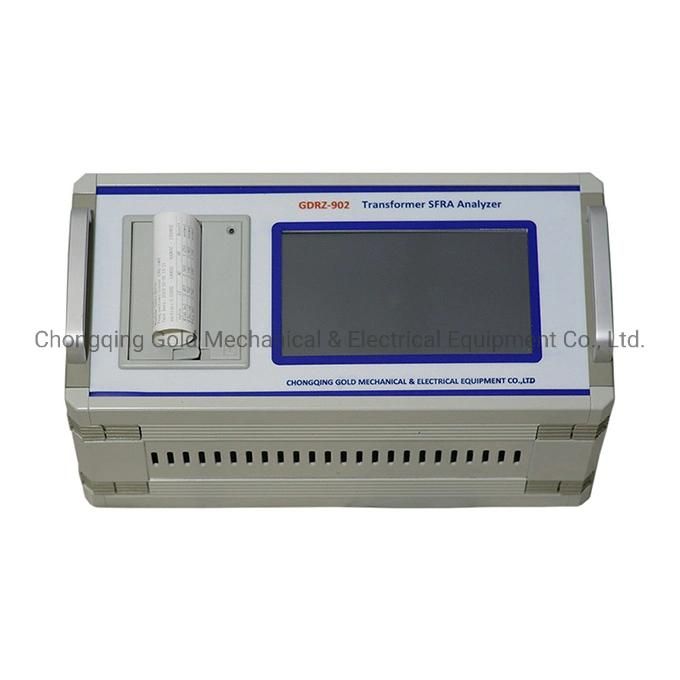

GDRZ-902 Transformer SFRA Sweep Frequency Response AnalyzerTwo different sweep modes: Linear sweep, Section sweepLinear sweep0.5KHZ-1MHZ interval 0.5KHZ 2000 dots









Section sweep

50HZ-100HZ interval 2HZ25 dots100HZ-1KHZ interval 20HZ45 dots1KHZ -10KHZ interval 50HZ180 dots10KHZ-100KHZ interval 0.2KHZ 450 dots100KHZ - 500KHZ interval 0.5KHZ 800 dots500KHZ - 1000KHZ interval 1KHZ500 dotsTest range(-100dB) - (+20dB)Test accuracy0.1dBFrequency accuracy<0.01%Signal input impedance>1M ΩSignal output impedance50 Ω

Item show:

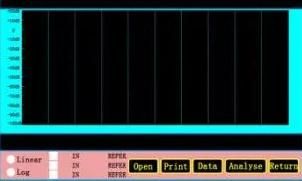

Operation interface

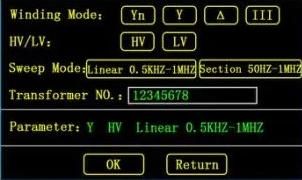

                    Analyse result                                                                 Mode choice

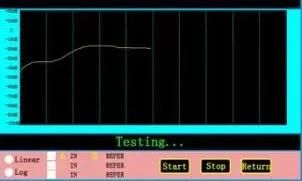

                   Testing interface                                                            Standard interface






About us

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd was founded in 2008. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality. we mainly design and manufacture the Transformer Tester, Circuit Breaker Analyzer, CT PT Analyzer, Hipot Tester , Relay Tester and so on for more than 10 years.
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;
We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.

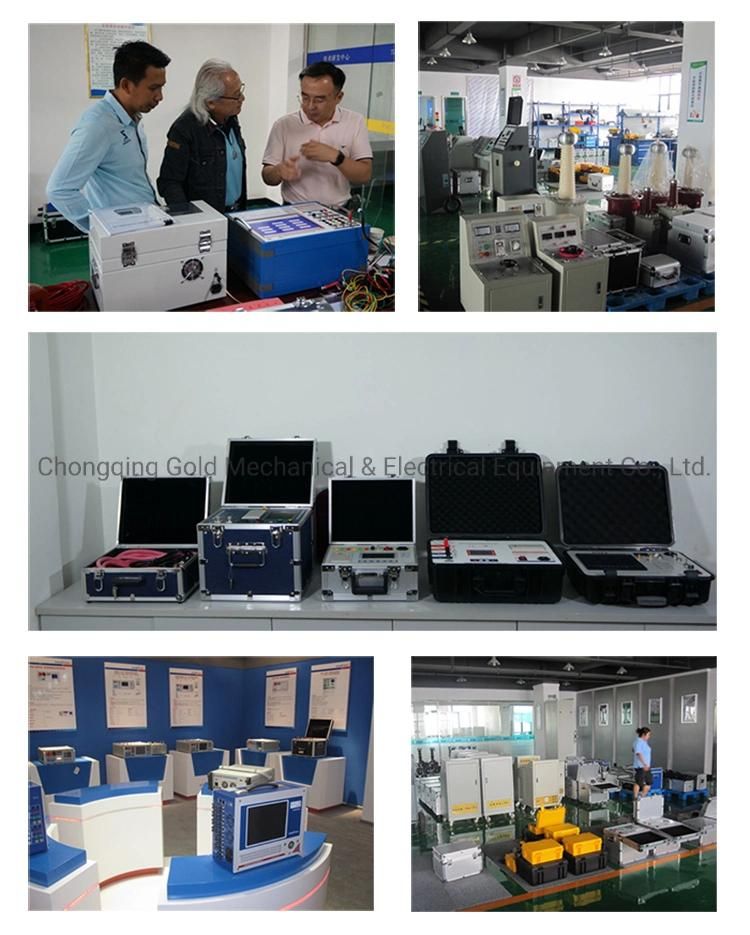

Our workshop
