• Model NO.：GD-2806G
• Testees：Petroleum Asphalt, Coal Pitch, Liquid Asphal, etc.
• Sample：2 Samples at The Same Time
• Stirrer：The Stirring Speed Can Be Adjusted Continuously
• Computer Communication Interface：RS232c Communication Interface
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Transport Package：Wooden Case for Gd-2806g
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Product nameASTM D36 Automatic Bitumen Softening Point Testing ApparatusPower supplyAC 220V (-5%~+10%), 50 HzMeasurement range32 ºC~160 ºC.
    (1) Heating medium: distilled water(softening point under 80 ºC)
    (2) Heating medium: glycerin (softening point over 80 ºC)
 Temperature resolution0.01 ºCCubage of beaker1000 mlStirrerthe stirring speed can be adjusted continuouslyHeating rateit will be adjusted to 5.0±0.5 ºC/ min automatically after three minutesHeating power600 WTest resultLCD screen shows results and printer to printComputer communication interfaceRS232C communication interfaceAmbient temperatureThe temperature should be lower than 35 ºC and keep stable. There should not have any air draftRelative humidity≤85%Maximum power consumption700 WTest sample2 samples



Related Products:

GD-2806EManual; 2 samplesGD-2806GAutomatic;2 samplesGD-2806HAutomatic;4samples

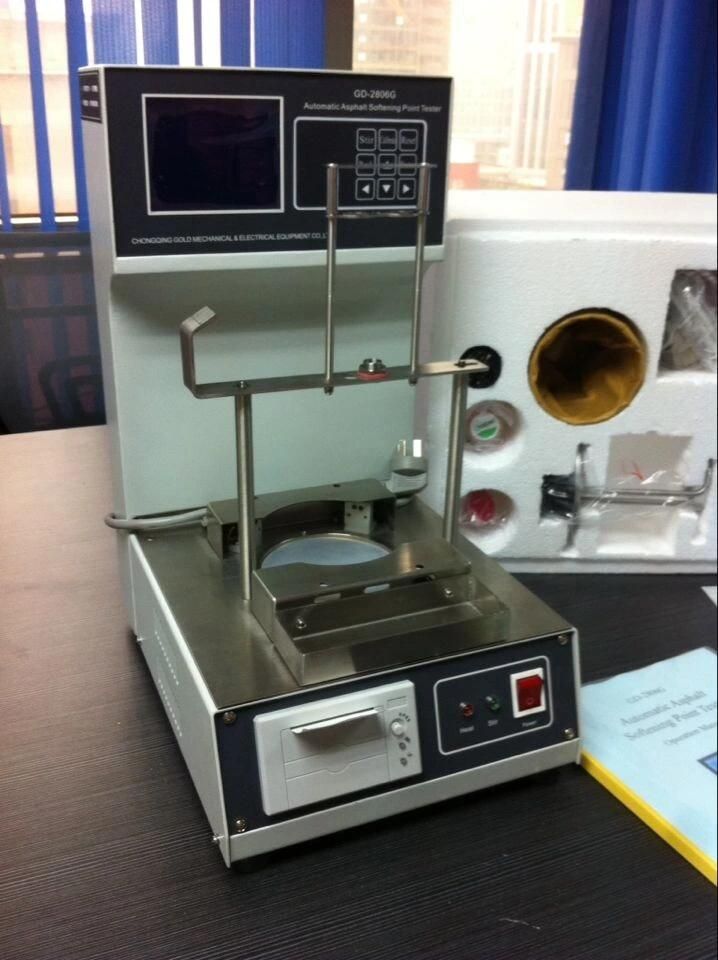

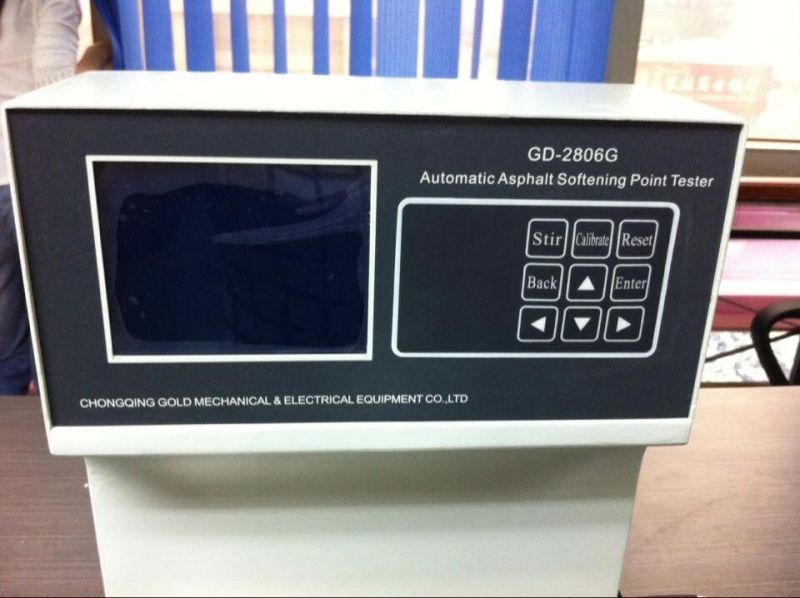

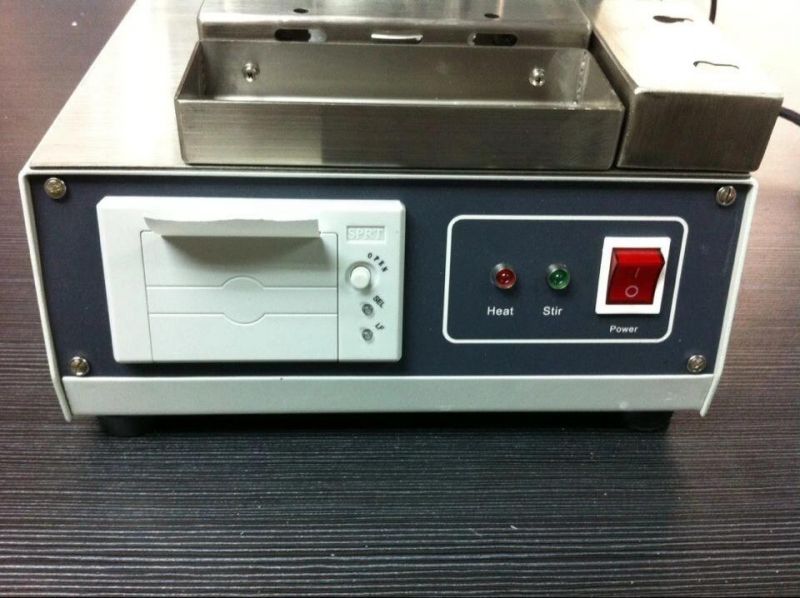

Detail Images:
