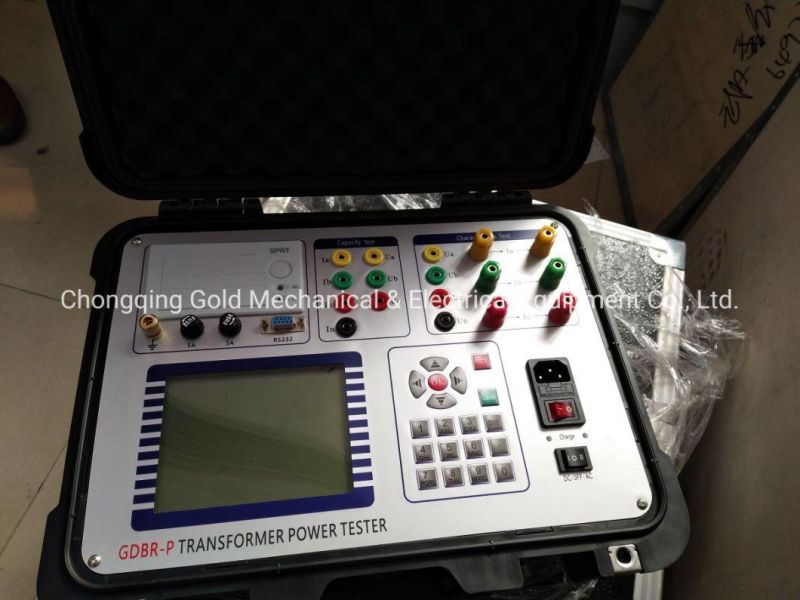

Gdbr-P Transformer Power Tester, Transformer Capacity No-Load Current Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • RMS of Three Phase Voltage：Uab,Ubc,Uca.
  • Average Value of Three Phase AC Voltage：Uab,Ubc,Uca
  • RMS of Three Phase Current：Ia,Ib,IC.
  • Current Measurement Range：100mA-60A,Accuracy; Class 0.2
  • Voltage Measurement Range：10V-650V,Accuracy;Class 0.2
  • Frequency Measurement Range：40-65Hz, Accuracy;Class 0.2

Base Info

  • Model NO.：GDBR-P
  • Power Input：AC220V± 10%
  • Accuracy：Class 0.2
  • Percentage：Po,Io%
  • Transport Package：Wooden Case
  • Specification：Transformer Power Tester
  • Trademark：GOLD
  • Origin：Chongqing, China (Mainland)
  • HS Code：9031809090
  • Production Capacity：500pieces,Month

Description

Load loss, impedance voltage percentage and short circuit impedance at any specified temperature.Transformer actual capacity and judged capacity.

2. Main technical parameters

External transformer can broaden the measurement range of instrumentFrequency measurement range 40-65Hz, accuracy;class 0.2Power input AC220V± 10%
