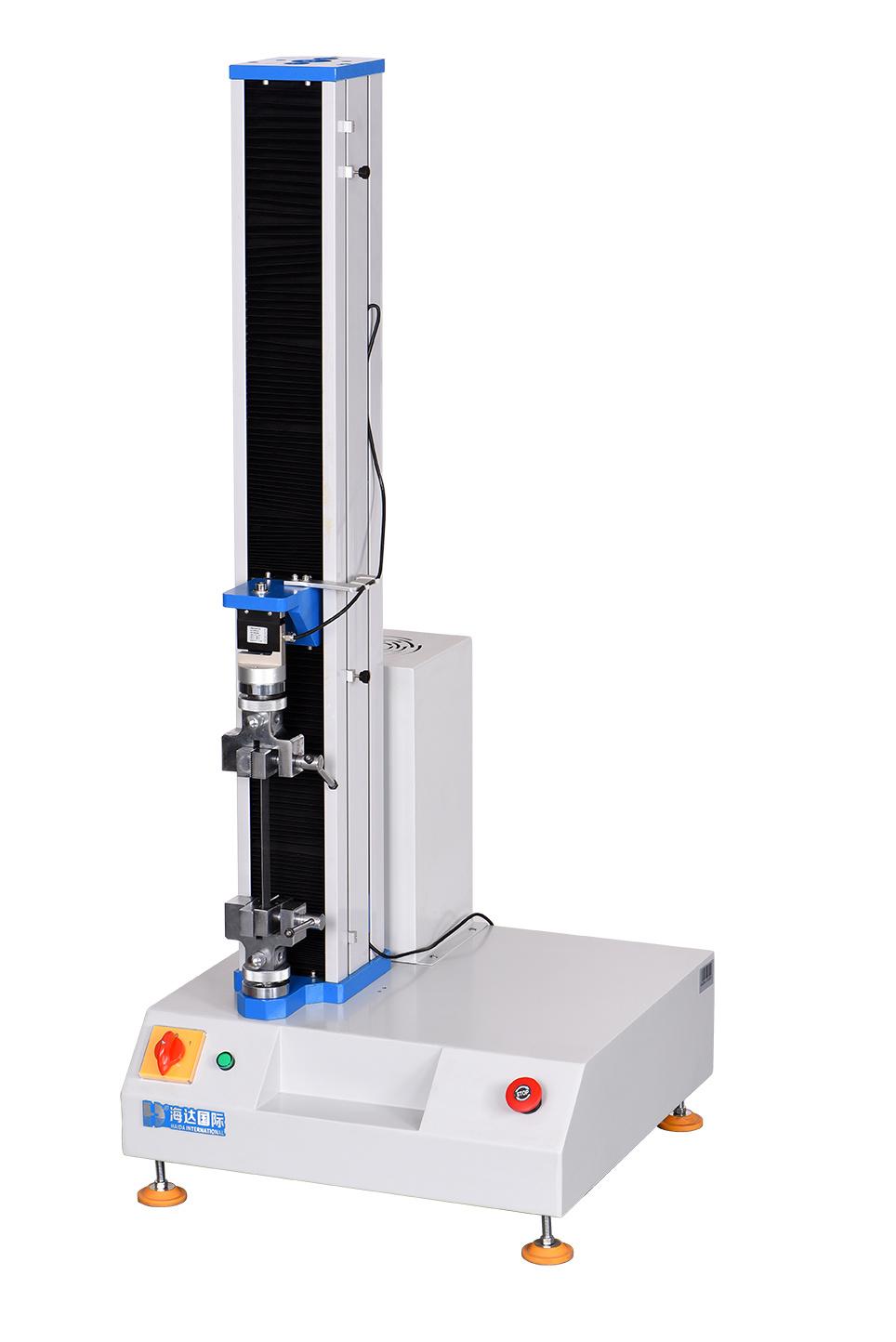

• Model NO.：HD-B609A-S
• Display：Computer Display, Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Standards：ASTM JIS Cns Pstc
• Motor：Panasonic Servo Motor
• Delivery Time：15 Days After Receive The Deposit
• Elongation Accuracy：0.001mm
• Load Cell：Celtron Sensor
• Load Resolution：1,250, 000
• Screw：High Precise Ball Screw
• Stroke：1000mm
• Capacity：10, 20, 50, 100, 200kg
• Transport Package：Strong Plywood Case
• Specification：Design Standards: GB,T16491; GB,T1040; GB,T1041; G
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

ItemDescriptionFrame capacity200kgLoad cell brandChina brand, 200kg (5,10,50,100kg are optional)Load accuracy1% F.SControl systemPC with windows 7 systemMotorAdjustable-speed motor with reduction box, high-precision mechanical ball screw rodForce readingkgf, Ibf, N, KN, T etcVertical test space900mm including fixtureTest speed50~300mm/min (adjustable by rotary knob)SoftwareTM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety featuresE-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat  Application:

1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.Deformation under defined load: Test deformation under defined load of tested sampleLoad under defined deformation: Test load under defined deformation of tested sampleSoftware can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

 Features:

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.

3. Data transmission: RS232.

4. Displacement resolution: 0.001mm.

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.

6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

7. User can set parameters of product material such as length, width, thickness, radius, area and so on.

8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.






Our Company:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
