• Model NO.：ACME-WSL2
• Specification：40*30*18
• Trademark：ACME
• Origin：China
• Production Capacity：5000 PCS,Year

Basic Info.

Model NO. ACME-WSL2 Specification 40*30*18 Trademark ACME Origin China Production Capacity 5000 PCS/Year

Product Description

Product Description:

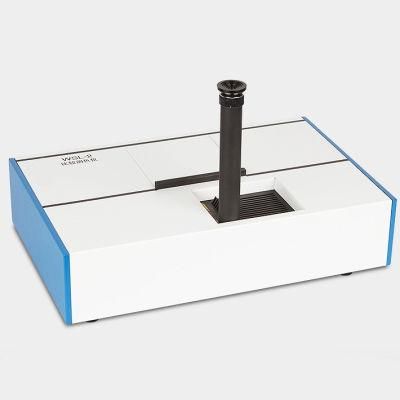

The wsl-2 comparison colorimeter (rovippon colorimeter) is a visual color measuring instrument, which adopts the internationally recognized special color scale -- rovippon colorimeter to measure the chromaticity of various liquid, colloidal, solid and powder samples.
Is the visual color matching method to determine the color of the material instrument, can be used for plastics, textiles, food, jam, food, oil, rosin, spices, rubber and other material color measurement, transmission method is suitable for liquid and transparent colored material measurement, reflection method is suitable for non-transparent material surface color measurement.


Technical parameter:

Model	WSL-2
Measuring range	Red R0.1- R79.9 Lovibond units Yellow Y0.1-Y79.9 Lovibond units Blue B0.1-B49.9 Lovibond units Neutral gray N0.1- N3.9 Lovibond units
The minimum value	0.1 Lovibond unit
White board diffuse reflection rate	> 80%
Magnifying glass magnification	1.9x
Color plate size	10mm X 20mm X 40mm 25.4mmX 20mm X 40mm 133.4mmX 20mmX 40mm
Power supply	220V 50Hz, 50W
Size	Host 500mm X320mmX 130mm
Net weight	3.5kg

Product features
· the design fully conforms to the internationally recognized roverhorn color scale
· color matching in the field of view with high measurement sensitivity
· simple and intuitive rovio digital color language, quantitative description of color measurement results
· can measure the visual color effect of various substances in the visible spectrum
· the instrument is simple in structure, easy to use and easy to grasp
