• Model NO.：HD-B609B-S
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Product Name：Tensile Testing Machine
• Test Speed：0.1~500mm,Min (Adjustable by PC)
• Load Precision：≤0.5%
• Stroke：900mm Including Fixture
• Operate and Display：Computer
• Power：One Phase, AC 220V
• Load Resolution：1,250, 000
• Load Cell：Germany Brand Load Cell for High Accuracy
• Transport Package：Strong Wooden Case
• Specification：Atsm
• Trademark：HaiDa
• Origin：Guangdong China
• HS Code：9024109000
• Production Capacity：60sets,Month

Basic Info.

Model NO. HD-B609B-S Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Product Name Tensile Testing Machine Test Speed 0.1~500mm/Min (Adjustable by PC) Load Precision ≤0.5% Stroke 900mm Including Fixture Operate and Display Computer Power One Phase, AC 220V Load Resolution 1/250, 000 Load Cell Germany Brand Load Cell for High Accuracy Transport Package Strong Wooden Case Specification Atsm Trademark HaiDa Origin Guangdong China HS Code 9024109000 Production Capacity 60sets/Month

Product Description

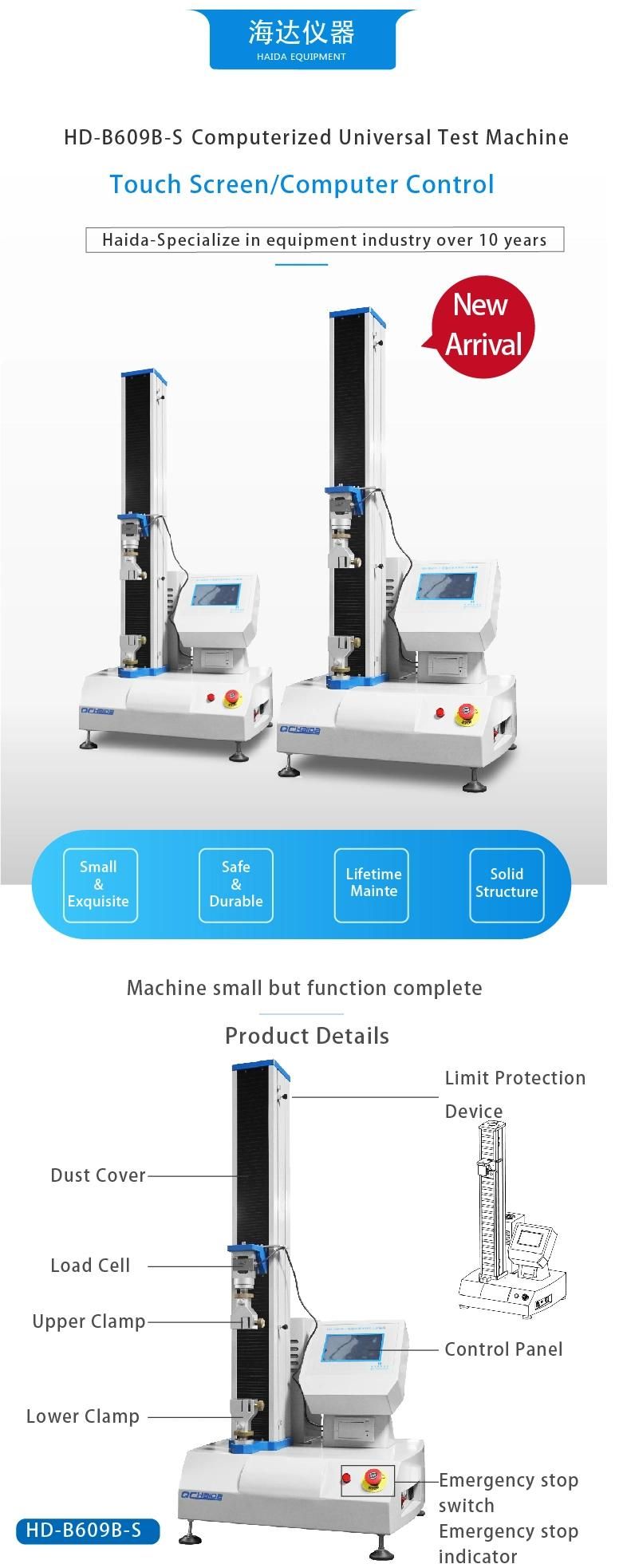

           Touch Screen Type ASTM Computer Controlled Universal Tensile Testing EquipmentProduct Description
This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

Main Technical Parameter


Item	Description
Max. Force	200 kg (2KN)
Load cell	Germany brand load cell for high accuracy
Control system	PC with windows 7 system
Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Stoke	900mm including fixture
Load cellResolution	1/250,000
Load Precision	≤0.5%

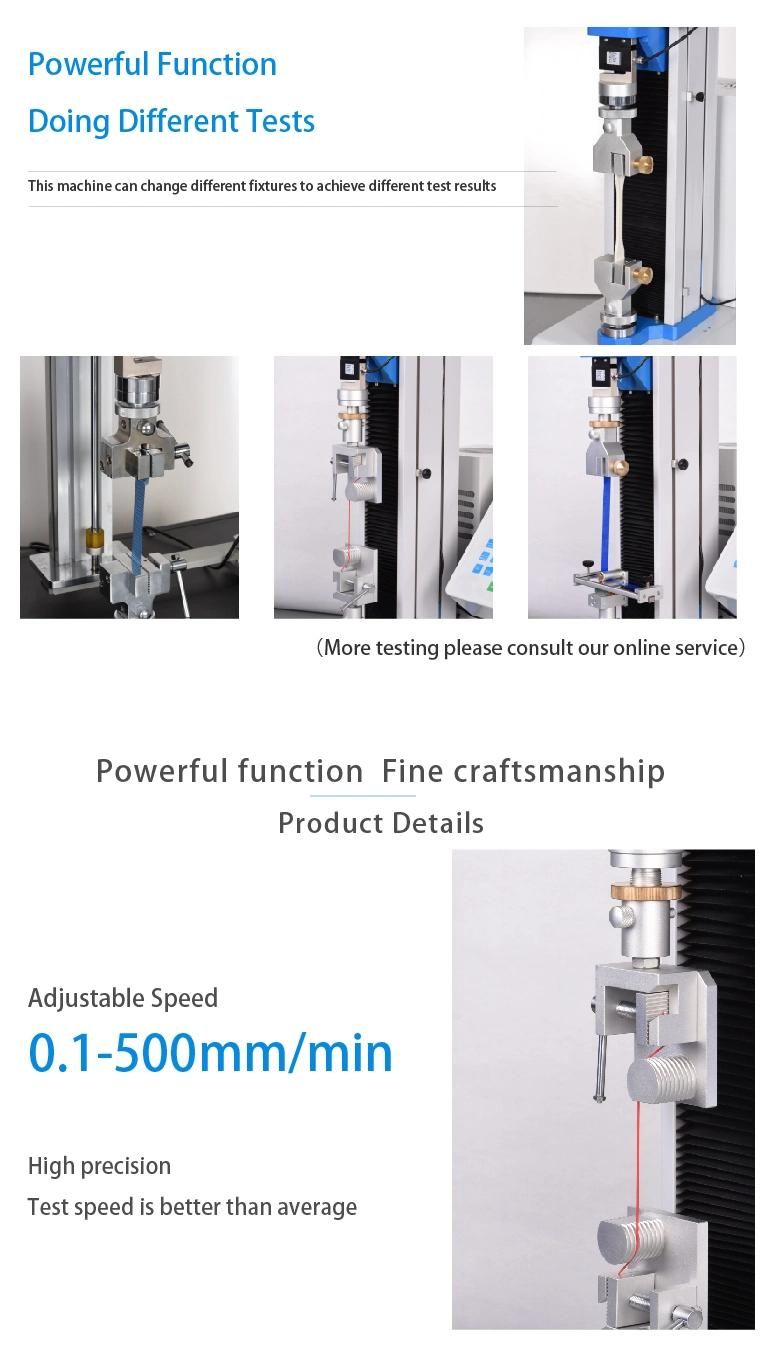

Test speed	0.1~500mm/min (adjustable by PC)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

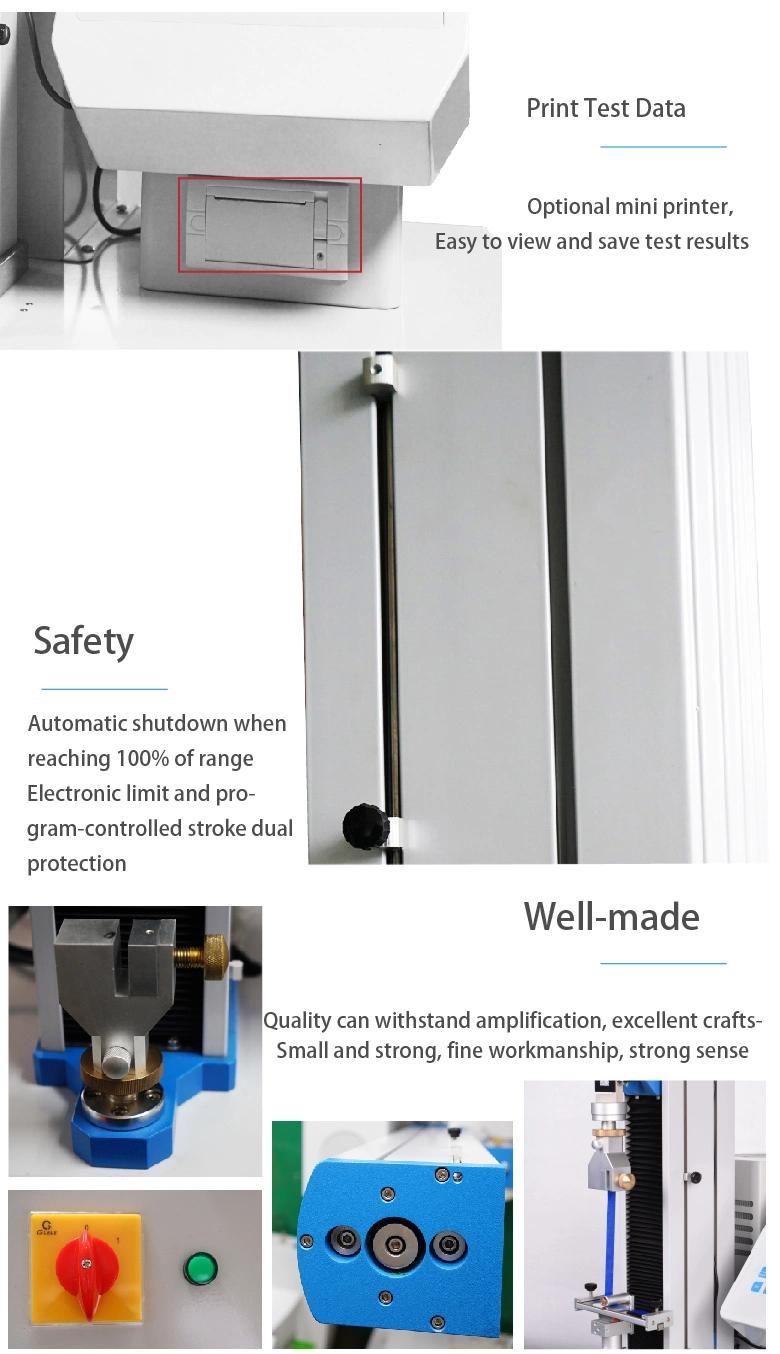

Safety features	E-Stop       Over-load protection       Upper and lower limit switches       Load sensor with automatic retreat

Product Features

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101software;b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product materialsuch as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

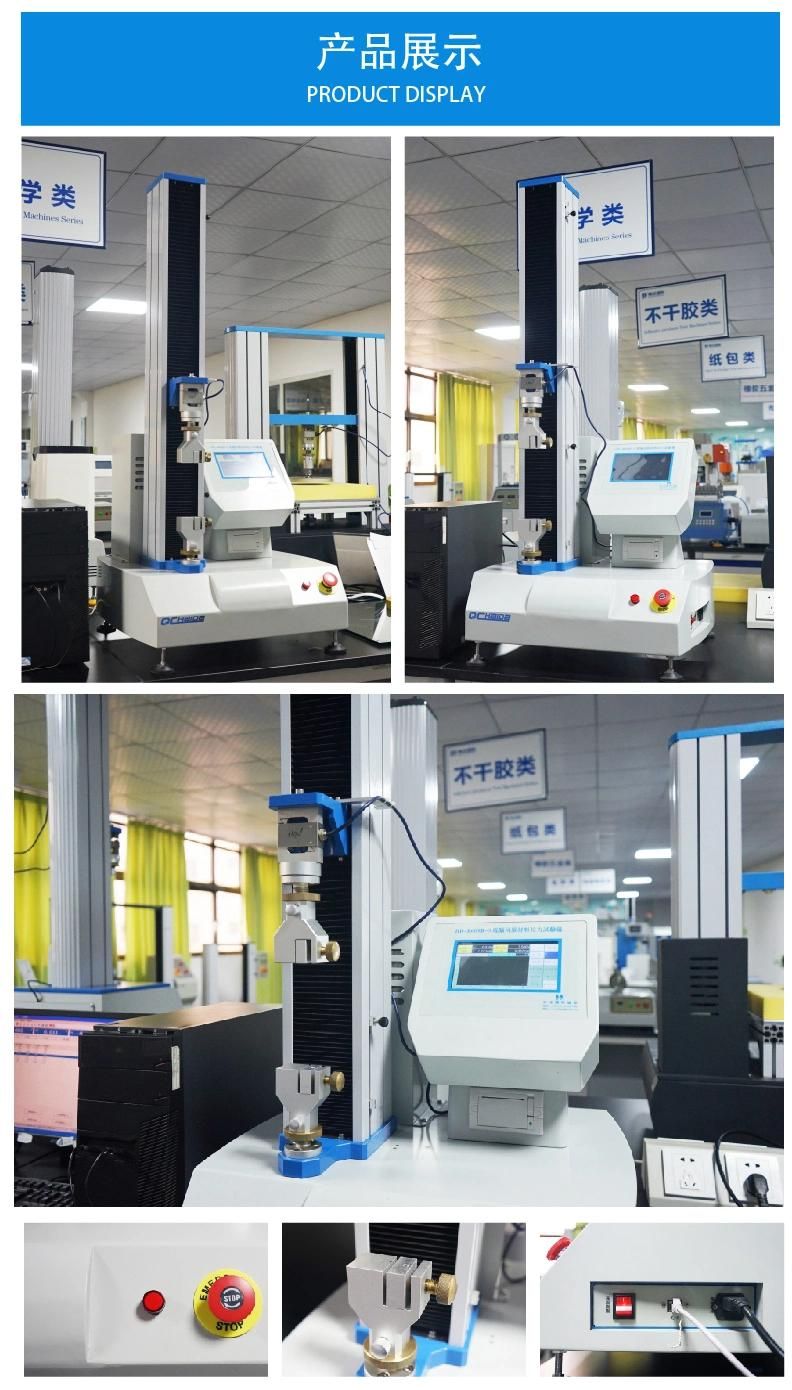

Product detail map

FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
