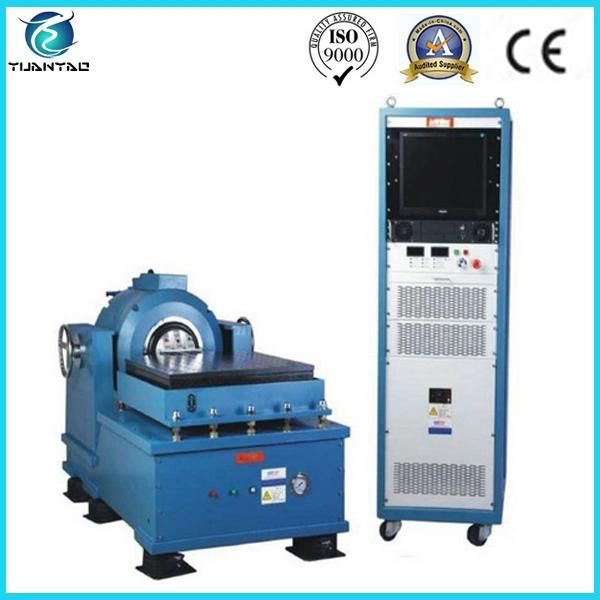

Certification Laboratory High Frequency Vertical Vibration Test Table
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：700mm
- Mass Scope of Workpiece：900kg
- Type：Vibration Testing Machine
- Maxcapacity：>1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：YEV-11
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC220V; AC380V
- Oil Cylinder Position：N,a
- Frequency Range：2-4000Hz
- Max.Vibration Force：100kg.F
- Max.Displacement：25mmp-P
- Max.Acceleration：40g
- Max.Speed：150cm,S
- Description：Vibration Test Table
- Cooling Way：Air Cooling
- Warranty：12 Months
- Max.Load：65kg
- Excitor Weight：220kg
- Transport Package：Strong Wooden Case
- Specification：CE, TUV, SGS Certificate
- Trademark：Yuan Yao
- Origin：Guangdong, China(Mainland)
- Production Capacity：100 Sets,Month
Description
Model No.YEV-11 YEV-12 YEV-13 Exciter Model GV100/25 GV200/25 GV300/25 Frequency range (Hz) 2-4000 2-4000 2-4000 Max Eciting Force (kg.f) 100 200 300 Max Displacement (MMP-p) 25 25 25 Max Acceleration (G) 40 80 80 Max Speed (cm/s) 150 150 160 Payload (kg) 65 65 110 Moving Coil Mass (kg) 2.5 2.5 4 Circumference of the movable ring(mm) 140 140 150 Exciters Weight (kg) 220 250 240 Dimensions (LWH) mm 675×560×660 675×560×660 675×560×660 Power amplifier Model SA1K SA2K SA3K Power developed weight (kg) 210 210 250 Cooling method 210 210 250 Power Amplifiers Size (L×W×H)(mm) 720×545×1625 720×545×1625 720×545×1625 Power Source[k.w] AC 1Ψ 220V/50Hz; 3Ψ 380V 50Hz
Besides vibration test table, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Tensile Tester, Drop Tester and so on.
If you are interested in our vibration test table, please contact me soon.
