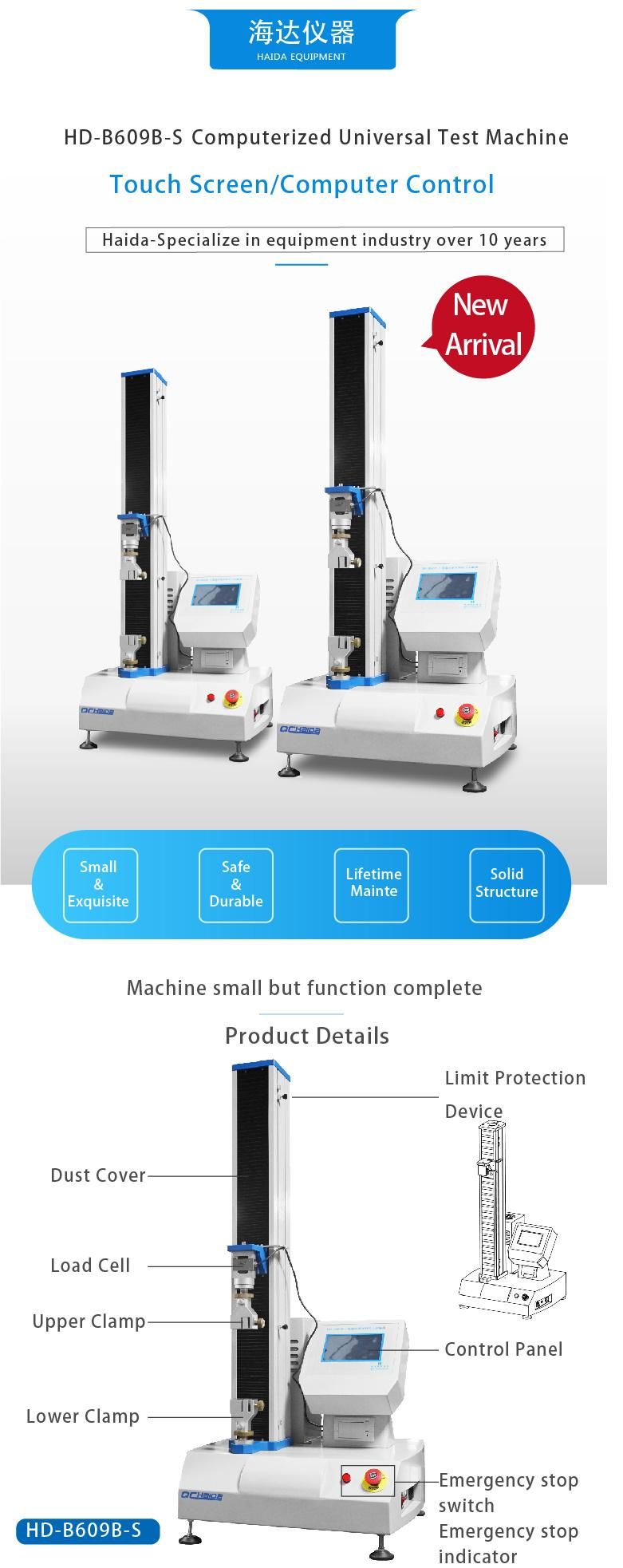

Laboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing Equipment

Dongguan Haida Equipment Co., Ltd.
  • Warranty：1 Year
  • Type：Rubber Tensile Testing Equipment
  • Maxcapacity：200kg
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HD-B609B-S
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Product Name：Tensile Strength Testing Machine
  • Test Speed：0.1-500mm,Min(Convertible)
  • Motor：Panasonic Servo Motor
  • Panasonic Servo Motor：0.001mm
  • Stroke：1000mm
  • Sensor：Celtron Load Cell
  • Operate and Display：Computer
  • Screw：High Precise Ball Screw
  • Power：One Phase, AC 220V
  • Load Cell：Celtron Sensor
  • Transport Package：Strong Wooden Case
  • Specification：Atsm
  • Trademark：HaiDa
  • Origin：Guangdong China
  • HS Code：9024109000
  • Production Capacity：60sets,Month

Description

ItemDescriptionMax. Force100 kg (1KN)Load cellGermany brand load cell for high accuracyControl system LCD / PC with windows 7 systemMotorPanasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rodForce readingkgf, Ibf, N, KN, T etcStoke900mm including fixtureLoad cell Resolution1/250,000Load Precision≤0.5%Test speed0.1~500mm/min (adjustable)Software TM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety features E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat (The table parameters for the company Standard Model parameters, we support customer customization parameters)

ADVANTAGE
1.High-Tech, Low Noise
2.Humanized Industrial Design, Easy To Place And Transport
Security Protection System
Technical Engineer Support After Service
Manufacturers Direct Sales, Factory Prices
1 Year Warranty , Free The Use Of Equipment Manual
Sales In Stock, Fast Delivery Time
 Applications
  1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
  2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
  3. Deformation under defined load: Test deformation under defined load of tested sample
  4. Load under defined deformation: Test load under defined deformation of tested sample
  5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

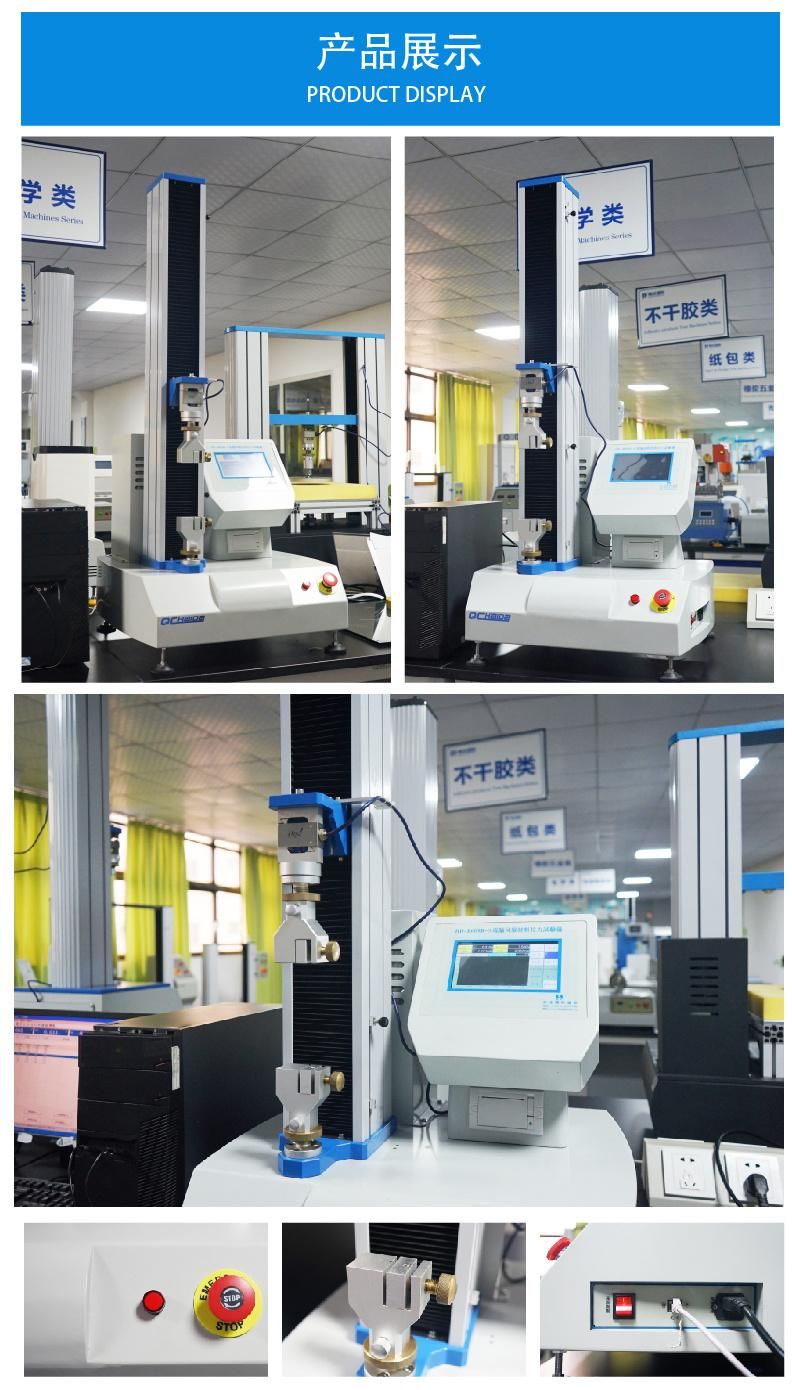

Laboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing EquipmentLaboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing EquipmentLaboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing EquipmentLaboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing EquipmentLaboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing Equipment

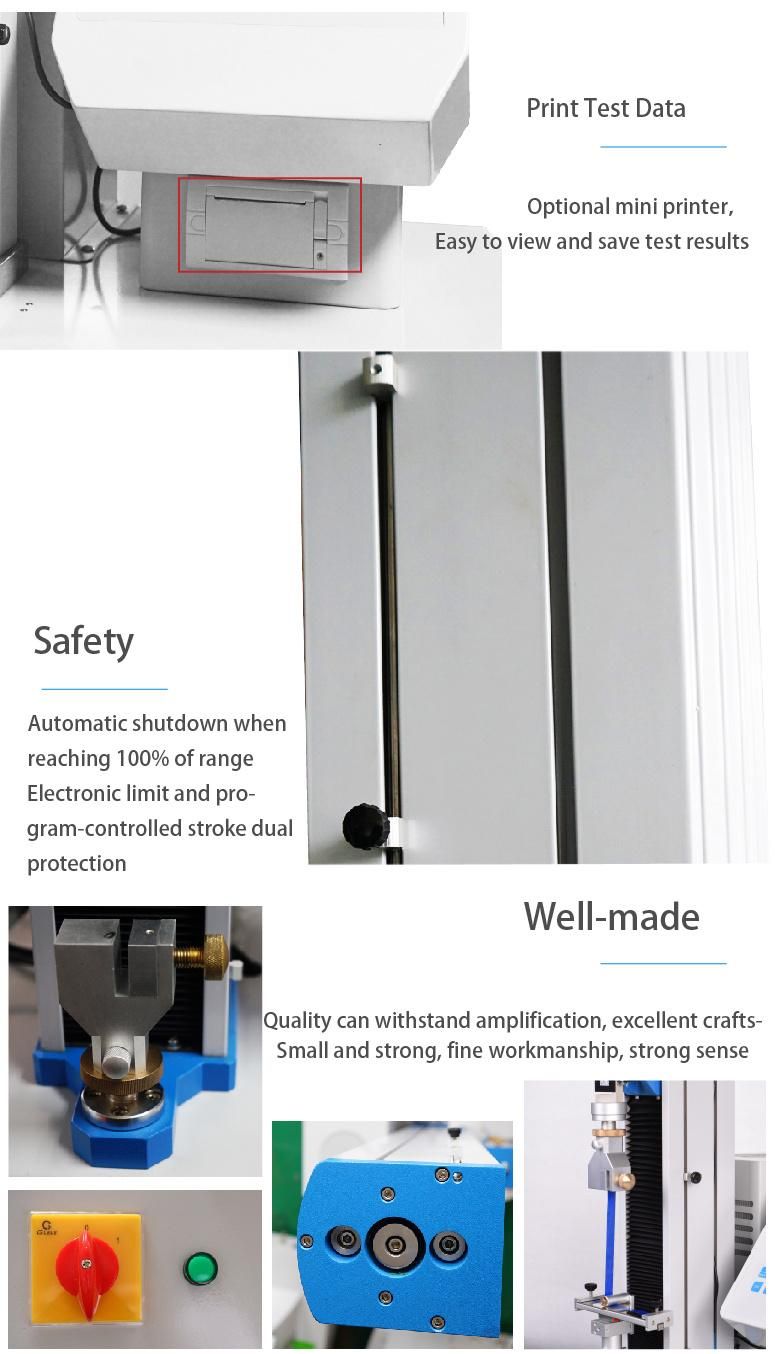

Product Features
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

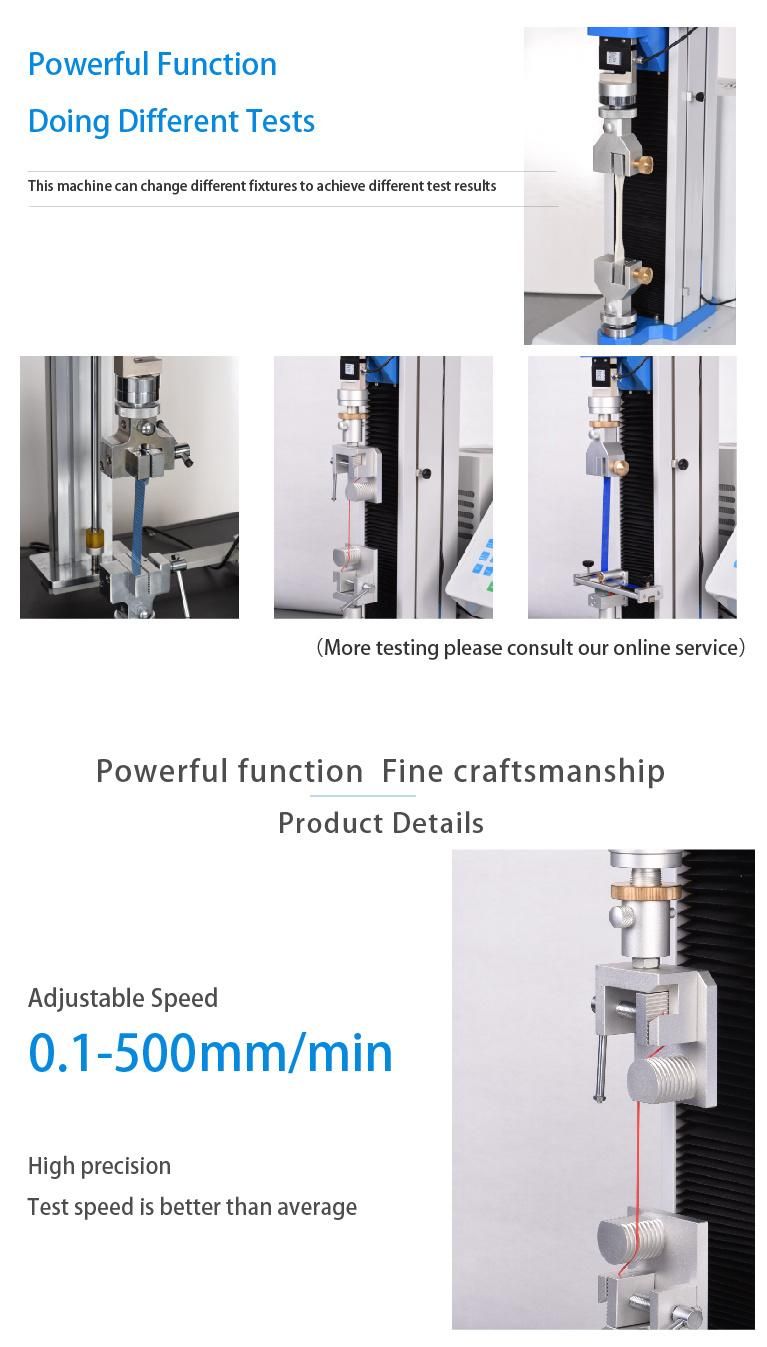

Tensile Tester Fixtures



Laboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing EquipmentLaboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing EquipmentLaboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing EquipmentLaboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing EquipmentLaboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing EquipmentLaboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing EquipmentLaboratory Rubber Tester & Plastic Universal Tensile Testing Lab Testing Equipment
