• Model NO.：HJ-56
• Weight：0-100Kg
• Power Source：AC220V
• Capacity Selection：1.2.5.10.20.50.100.200.500kg
• Load Cell Accuracy：0.50%
• Test Stroke：Maximum 650mm
• Test Speed：0.1 ~1000mm,Min Can Be Adjusted Arbitrarily
• Power：AC Servo Motor
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-56 Weight 0-100Kg Power Source AC220V Capacity Selection 1.2.5.10.20.50.100.200.500kg Load Cell Accuracy 0.50% Test Stroke Maximum 650mm Test Speed 0.1 ~1000mm/Min Can Be Adjusted Arbitrarily Power AC Servo Motor Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Features
This product can test the tensile strength, compressive strength and elongation, elongation rate of various materials, semi-finished products and finished products, and can be used for peeling, tearing, bending, compression and other tests. It is suitable for metal, plastic, rubber, textiles, Used in synthetic chemical products, wire and cable, leather and other industries.

Product use/standard
Mainly suitable for testing of metal and non-metal materials, such as rubber, plastic, wire and cable, fiber optic cable, seat belts, safety belts, leather belt composite materials, plastic profiles, waterproof coils, steel pipes, copper materials, profiles , spring steel , Bearing steel, stainless steel (and other high-hardness steels), castings, steel plates, steel strips, non-ferrous metal wires for stretching, compression, bending, shearing, peeling, tearing, two-point extension (extensometer required) And many other tests.

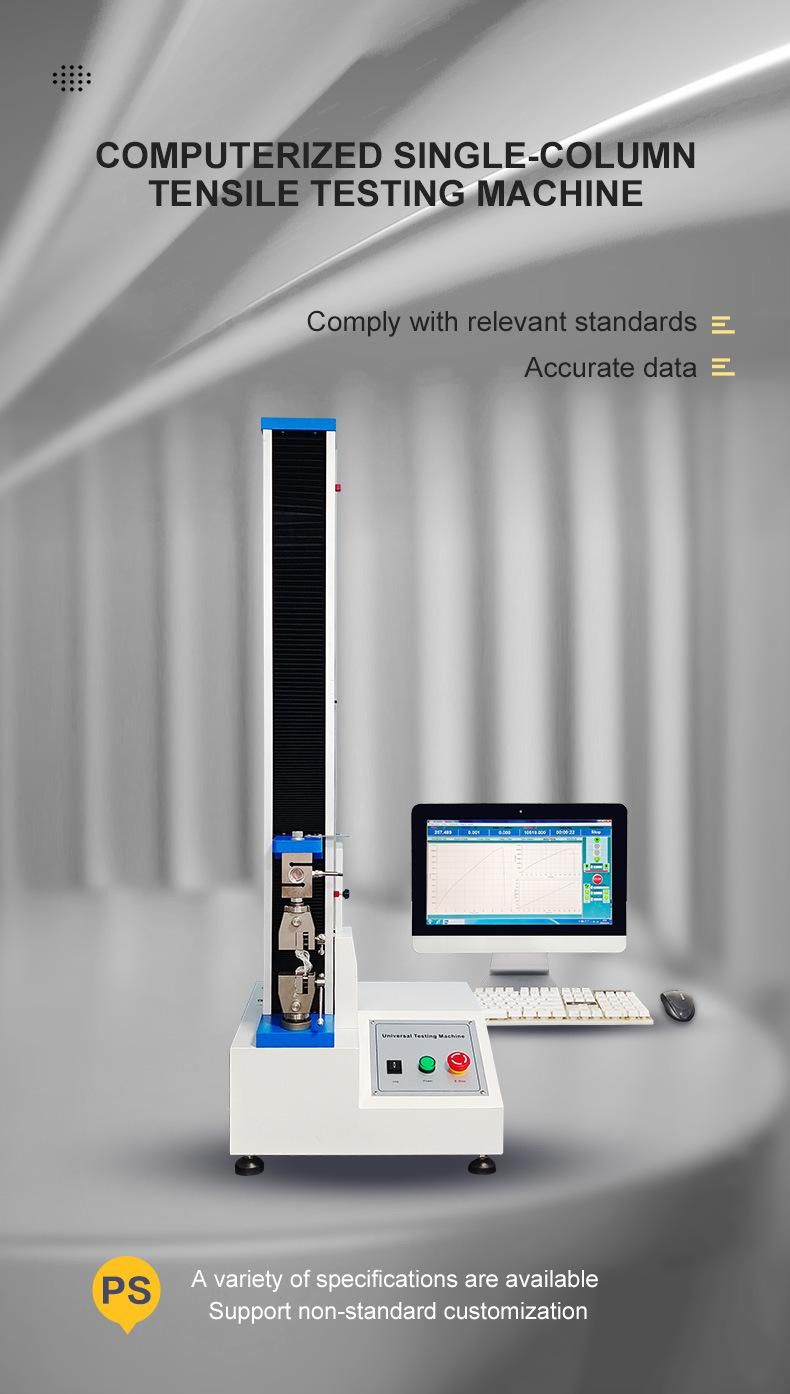

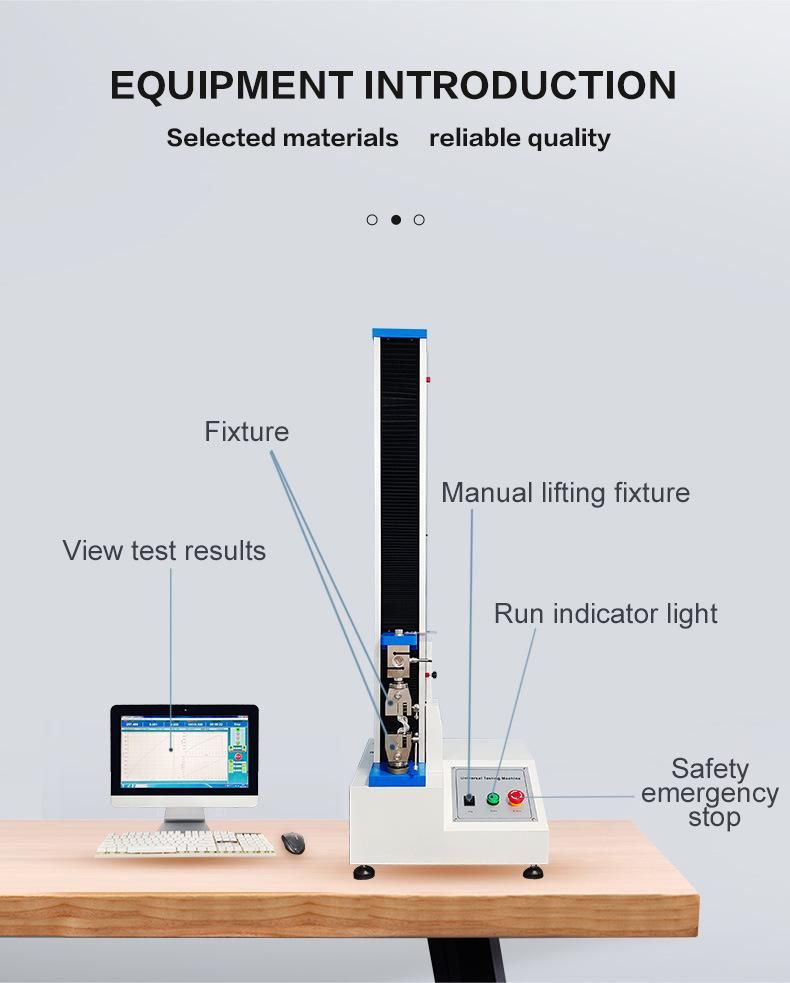

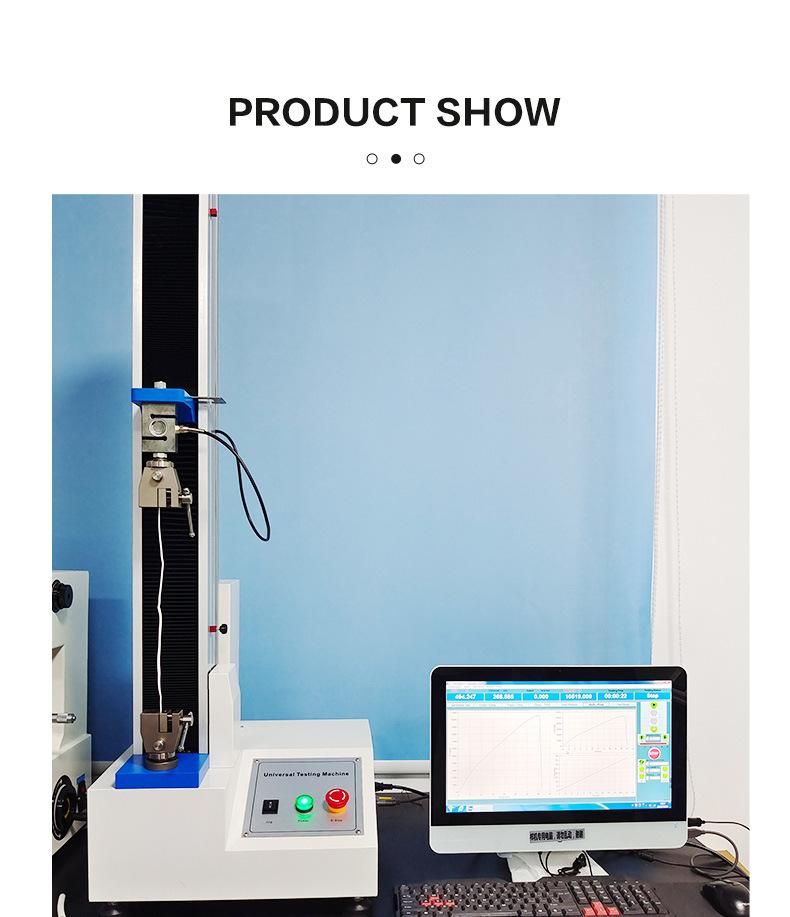

This machine adopts mechatronics design and is mainly composed of load cell, transmitter, microprocessor, load drive mechanism, computer and color inkjet printer. It has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity in the measurement and control of load and displacement. It can also carry out automatic control tests of constant velocity loading and constant velocity displacement. Floor-standing models, styling and painting are fully considered the relevant principles of modern industrial design and ergonomics.


Test items	Strength,compress and selective elongation,etc
Unit of strength	Kgf,N,KN,Lb,g
Capacity selection	1,2,5,10,20,50,100,200,500kgf
Load cell accuracy	0.5%
Test stroke	Maximum 650mm, (extended type 1000mm) not include fixture
Test speed	0.1 ~1000mm/min can be adjusted arbitrarily

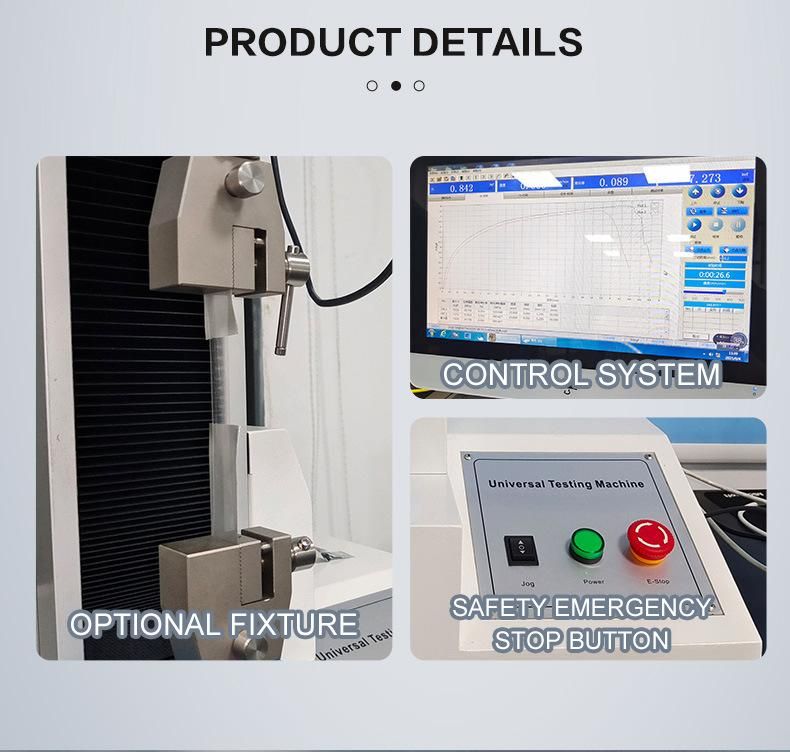

Stop mode	Upper and lower limit safety setting, emergency stop button,  program force and elongation setting, and test sample breakpoint sensing
Equipped	One set of standard fixtures, user manual and product warranty card
Power	AC servo motor
Standard	Computer connection equipment (1 signal line, 1 decryption lock, 1 program CD)
Monitor	PC display
Extension unit	mm,cm,in,%
Power resolution	1/200,000
Test effective space	120mm diameter range

The Introduction Of Hongjin
Hongjin products are widely used in paper products, packaging, ink printing, tape, luggage, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, suitable for all scientific research units, Quality inspection agencies and academic fields. Products comply with UL, ASTM, JIS, GB, SO, TAPPI, EN, DIN, BS and other domestic and foreign standards. We have CE certificates, ISO certificates, and are a high-tech enterprise with more than ten years of experience.

Hongjin's services:
If you encounter any problems during future testing, we promise we will reply you within 48 hours and provide a solution within 3 working days. We can provide operation video and English operation manual. We can provide video conferencing.
1. Pre-sales service
    --24-hour online service for your consultation.
    -- Help with choosing the right model, and a range of services, people, advice.
   --Provide laboratory planning and pre-sales technical guidance.
2. Intermediate service
    -- give you the best offer
    --Provide discounts on multiple sets of orders
    -- Do the customer's request:
    --Choose a payment term that is convenient for you.
    --Prompt production and delivery, keep you informed.
    -- Invoice value can be provided according to your needs to reduce tax.
3. After-sale service
   --1 year warranty service and lifetime maintenance.
   --Technical engineers can provide 24-hour after-sales guidance.
   --Replacement of some parts
   --Remote control technical consultation
   --Machine lifetime maintenance service
4. Commitment:
We will sign a letter of commitment at the same time as signing the contract, which will increase your confidence in us.
5. Good packaging:
Simulation animation customers cover with bubble film before putting them into wooden boxes, which not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof and corrosion-proof, and good transparency.
