Product Description

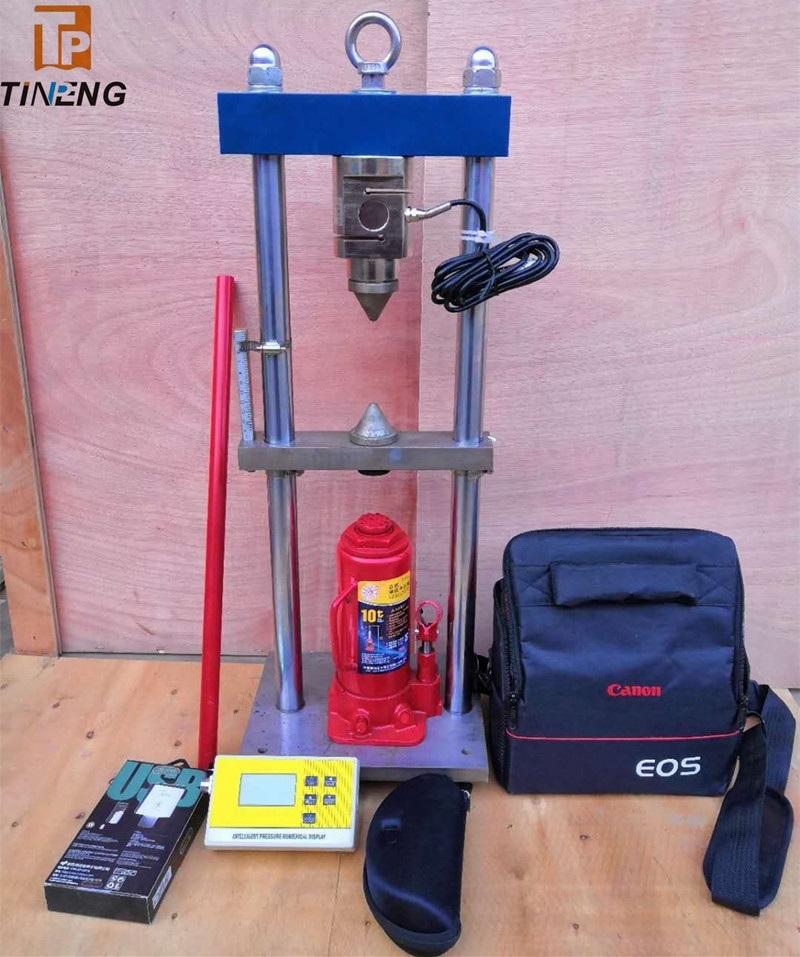

Rock point load test apparatus
This apparatus comprises a two-column fixed crosshead frame and a hand operated hydraulic jack.
Pressure applied by the jack extends the piston carrying the lower conical point. The upper point is fixed to the
crosshead with a scale mounted on the frame to provide specimen diameter information for use in point load
strength index calculations.
Specification:
Max Load:     100kN
Pressure gauge range:    60/100Mpa
Max. specimen Height:    100mm
Max. specimen width:     90mm
Load measuring error:    ≤1%F.S
Piston diameter:     dia.38mm
Pistion stroke    160mm
Dimension:     280x250x640mm
Gross weight:    35kg
